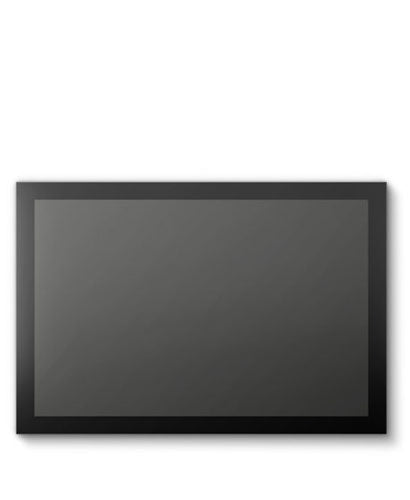

Strand VN 10.1inch touch screen w

by Strand
SKU 95610
Original price $5,041.00 ex. GST - Original price $5,041.00 ex. GST
Original price
$5,041.00 ex. GST
$5,041.00 ex. GST - $5,041.00 ex. GST
Current price $5,041.00 ex. GST

All Prices Shown are Excluding GST.

VISION.NET TOUCHSCREENS come with a variety of mounting options including surface or flush wall mounting, desktop and 19-inch equipment racks. Working as part of a networked solution, they provide connectivity to existing control infrastructure products such as the NEO CONTROL CONSOLE and the C21/EC21 DIMMING SYSTEMS, providing a key part of an integrated approach to control systems.

Features

  • Sleek, modern designed touchscreen is simple to install with multiple modular mounting options including flush mount, rack mount, surface mount, VESA mount choices
  • Rapid configuration using drag and drop techniques, making system design and deployment exceptionally fast
  • Simple connection and powering using Ethernet infrastructure, with PoE power, or alternative low power network
  • Optional Ethernet connectivity touchscreens provides remote access to Strand Lighting Neo control consoles, C21, EC21 A21, and R21 dimming systems
  • Screen can be powered by PoE+ or 24v DC power
  • High resolution (1280x800) 10.1-inch display with PCAP touchscreen technology
  • Active area of 216.96 x 135.60 mm (8.54 x 5.34 inches)
  • 100Base-T (100Mbps Ethernet) connection

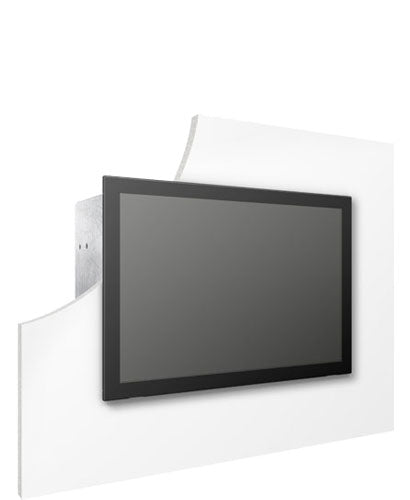

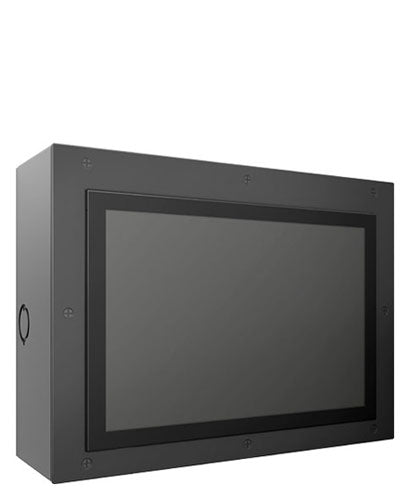

  • Flush and surface mount kits available
  • “Touch latching” for buttons and faders
  • Swipe paging and tabbed screens
  • Password protection options
  • Simple to support and change configurations via Ethernet
  • Time server support
  • Commands include (but are not limited to): Raise/Lower, Preset, Toggle On/Off
  • Smart commands allow multiple system commands to be executed from a single button press
  • Buttons may be shared with other screens and stations
  • Optional Ethernet connectivity touchscreens can provide remote access to Strand Lighting NEO control consoles, C21, EC21 A21, and R21 dimming systems
  • Bit-mapped backgrounds provide custom graphic displays, with invisible buttons to provide hot spots on graphics
  • Sleek design of on-screen button and faders
  • 2 USB ports for offline updates
  • Nine-pin Phoenix connector for bridging to RS485 Vision.net data

Benefits

  • Sleek, modern designed touchscreen is simple to install with multiple modular mounting options
  • Fast to implement and deploy, via quick GUI design using Vision.net designer tools allowing for a “drag and drop” design with a straightforward approach, greatly reducing the time needed for system
    design and implementation
  • Part of a distributive topology, reducing dependency over single point processing solutions
  • Simple connection and powering using Ethernet infrastructure, with PoE+ power, or alternative low
    power network
  • Fully scalable solutions, from simple room-based, to campus-wide applications, allowing for a
    buildable system expansion
  • Easy installation elements with multiple modular mounting options

Specifications

TOUCHSCREEN
Touch: Multi-point touch, PCAP
Resolution: 1280x800
Colors: 24-bit
Viewing angle: Minimum of 80 degrees from all four sides
Touch surface: 7H hardness glass with anti-fingerprint oleophobic coating
Storage and memory: 8GB micro SD card, 2GB RAM
Operating system: Anroid 6.0.1+

POWER
Operating voltage: 24VDC or PoE+ (IEEE802.3at)

CONNECTIONS
PoE (IEEE802.3at): 1 x 1000BASE-T RJ45
Phoenix RS485: 1 x 9-way, power for Vision.net local link
USB 2.0: 2
USB OTG: 1
DIN: 1 x 9-pin RS232 (unused)
HDMI: 1

PHYSICALS
Finish: Black

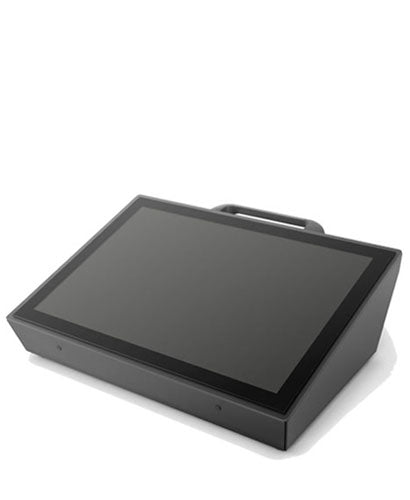

Mounting: Flush, surface, rack, VESA*, desktop stand (*part number 95631 only)

DIMENSIONS (H X W X L)
10.1” touchscreen: 174 x 255 x 41 mm

WEIGHT
10.1” touchscreen: 0.95kg
