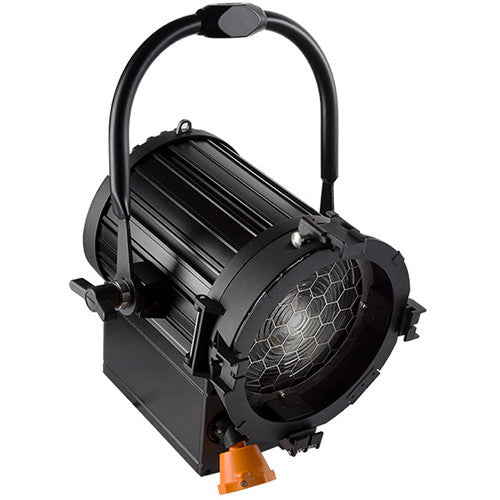

Strand 200F LED TV Fresnel Tungsten M.O.

Strand 200F LED TV Fresnel Tungsten M.O.

by Strand
SKU 200FTVTUNGMO
$5,247.00 ex. GST - $5,247.00 ex. GST
$5,247.00 ex. GST
$5,247.00 ex. GST - $5,247.00 ex. GST
$5,247.00 ex. GST

All Prices Shown are Excluding GST.

All Prices Shown are Excluding GST.

Key Features
  • 12-60° Beam Spread
  • 7" Fresnel Lens
  • 3200K Color Temperature
  • 1000W Equivalent Output
  • 0-100% Continuous Dimming
  • DMX and Local Control

The 200F LED Television Fresnel M.O. from Strand Lighting is a medium-powered tungsten-balanced LED Fresnel luminary with a light output equivalent to that of a conventional 1000W halogen Fresnel. Designed specifically for TV broadcast lighting, its very high TLCI rating provides a quality of light ideal for television cameras. Zoom function can be pole-operated or manually-operated, with a pole-compatible focusing knob at the front and a manual knob at the rear.

The 200F features 0-100% continuous dimming and three available tungsten dimmer curves for matching legacy lighting, plus three selectable fan modes for minimal interference when shooting live audio. In addition to DMX compatibility, the 200F features local control via a color LCD display with 8 soft keys and decoder wheel for intuitive operation. An integrated USB port also allows for future firmware upgrades and performance data file downloads.

DMX and Local Control

DMX512 8-Bit and 16-Bit control with input/output connectivity and with Remote Device Management (RDM) Protocol via the same DMX control inputs. 5-Pin XLR connectors with throughput offer daisy-chain capability.

7" Fresnel Lens

The 7" Fresnel lens is mounted to the front door of the housing, lens and lamp interior may be accessed by means of the side-hinged front lens door. The door is held closed with a spring clip assembly so no tools are required for cleaning lens or light interior.

Color Frame and Barndoor Mount

Two accessory slots are provided for positioning a color frame and barndoors. The accessories are retained in place with a double safety-lock mechanism to ensure they cannot accidentally become detached or fall out during operation.

Four Dimming Modes

  • Linear
  • Square
  • S-Curve
  • PL-Curve

3-Mode Fan

  • On
  • Bright (high)
  • Silent (off)
