Showtec Pixel Bar 16 Q4 16x RGBW

  • Sale
  • Regular price $835.00


All Prices Shown are Excluding GST.

Showtec Pulse Pixel Bar 16 Q4

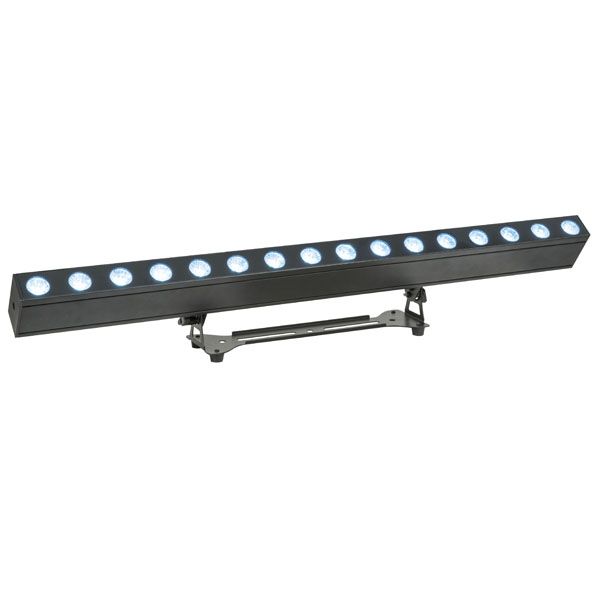

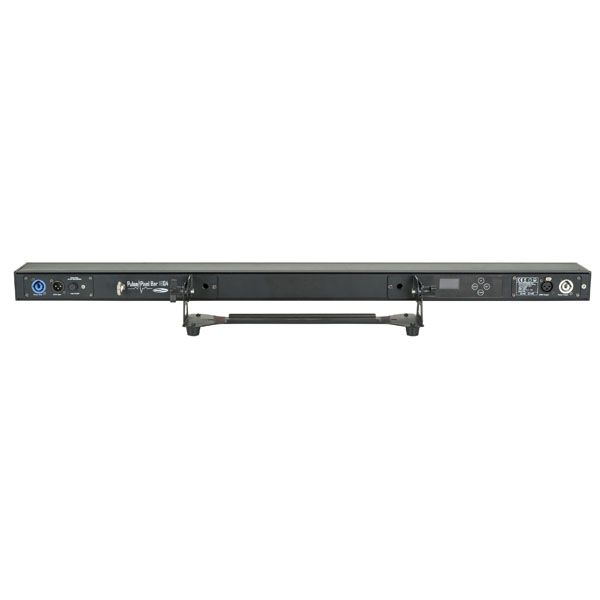

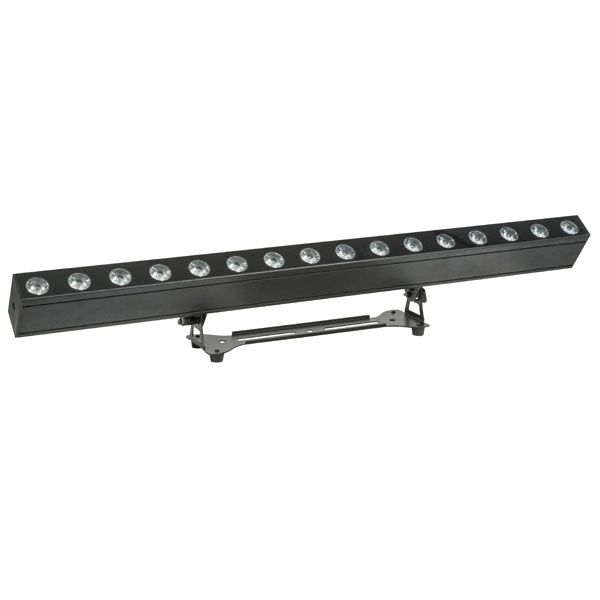

The Pulse Pixel bar is an luminaire fixture with individual 16x RGBW 4in1 Prolight Opto LED’s with a 20° beam angle and new advanced lens optics. It is a compact wash fixture with a unique and distinctive design to illuminate large surfaces like curtains and walls. Features include Full pixel control and selectable auto programs on the specially designed 4 button OLed display. Besides that the bar is equipped with Dmx (3pin Xlr) and Pro power in- and out connectors. The fixture has an innovative bracket for easy floor placing or multiple rigging options.
  • RGBW Prolight Opto LED’s
  • Pixel Control
  • Versatile rigging possibilities
  • Power and Data daisy chain

Specifications

  • Output Lux (@ 2 meter) - Red 402 Lux (@ 2 meter) Green 811 Lux (@ 2 meter) Blue 203 Lux (@ 2 meter) White 1356 Lux (@ 2 meter) Full 2405
  • Light Source - LED System 16x 5W RGBW High Power LED Drive
  • Current - 300mA
  • Refresh rate - 2Khz
  • Electrical Power Supply - 100-240V
  • AC Power Consumption - 58W
  • Control Mode - DMX512
  • DMX channels - 4, 6,10,64
  • Dimmer - 0-100%
  • Strobe - 0-20Hz
  • Beam Angle - 20°
  • Physical Dimensions - 960 x 130 x 185 mm (LxWxH) (Incl. bracket)
  • Weight - 3,8 Kg
  • Housing - Aluminium
  • Colour - Black
  • Power Connectors - Pro power in/out
  • Data Connectors - XLR 3pole
  • Cooling - Aluminium heatsink
  • Certification and Safety Certification - CE
  • Max. ambient Temp. - 40°C
