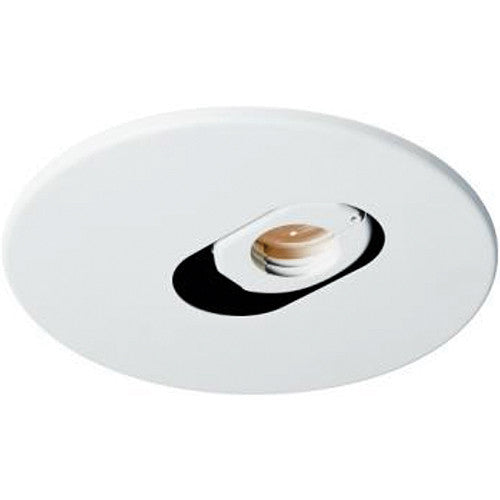

Selecon Aureol Recess BeamShaper White with Electronic Transformer and On-Board Dimmer

by Selecon
Original price $920.00 ex. GST - Original price $920.00 ex. GST
Original price
$920.00 ex. GST
$920.00 ex. GST - $920.00 ex. GST
Current price $920.00 ex. GST
SKU ARLRED01

All prices shown are excluding GST.

The Aureol Recessed BeamShaper brings the use of projection and control of light in a fully recessed format to the architectural lighting market.

The unit allows the lighting effect to be the feature without the fitting being seen. By utilising the BeamShaper lens body (same as the surface mounted BeamShaper) the recessed unit has the same level of high optical performance and ease of operation as the surface mounted unit. This makes the use of recessed and surface mounted unit on the same project easy for installation and maintenance as lamp type, projection patterns and focusing adjustment are the same.

Features:

  • Provides lighting effects without visual disruption
    to architectural spaces, 265mm overall ceiling
    plate with 130mm x 70mm rounded aperture.
  • Up to 45˚ tilt angle projection to wall and 360˚
    rotation.
  • Beam angle zoom adjustment 26˚ to 50˚.
  • MR16 12V lamp (20W to 75W), industry
    standard.
  • Unique mounting system allows easy angle and
    rotation for beam aiming with pan and tilt lock
  • Tamper and interference resistant for public
    areas. Recessed unit is less obvious
  • Integrated pattern mounting, no loose holder
    required. E size stainless steel or glass patterns
    are mounted inside the BeamShaper body
  • Four easily adjustable captive shaping shutters
    for beam shaping.
  • Two integrated filter mounting slots – to carry
    colour filter 50mm round or square (square cut is
    easier and cheaper than round) one of which can
    be up to 3mm thick
  • Option of integrated or remote power supplies
    (remote 12V transformer provided by installer) or
    integrated electronic for compactness, ease of
    installation and efficiency or integrated electronic
    with on board dimmer. Both options are
    dimmable by external architectural dimmer
  • Supplied with the GE Precise 50W 25° 12V
    MR16 lamp

ARLRED01 - Electronic Transformer with on-board dimmer (75W max.) White
