PL Cyc 1 MK 2 LED Luminaire
All prices shown are excluding GST.
Delivering a smooth even beam, the PLCYC1 seamlessly blends intense washes of colour on your cyclorama. Using LED source technology combined with a properly shaped asymmetrical reflector, the PLCYC1 delivers consistent light distribution without the compromising performance of vertical or horizontal spreader lenses.
Product Features
-Single source RGBW LED chip delivers limitless colour mixing and colour temperature.
-Single units instead of multiple units previously required to mix colour on the cyclorama.
-Homogenized fully mixed light, no multiple colour shadows.

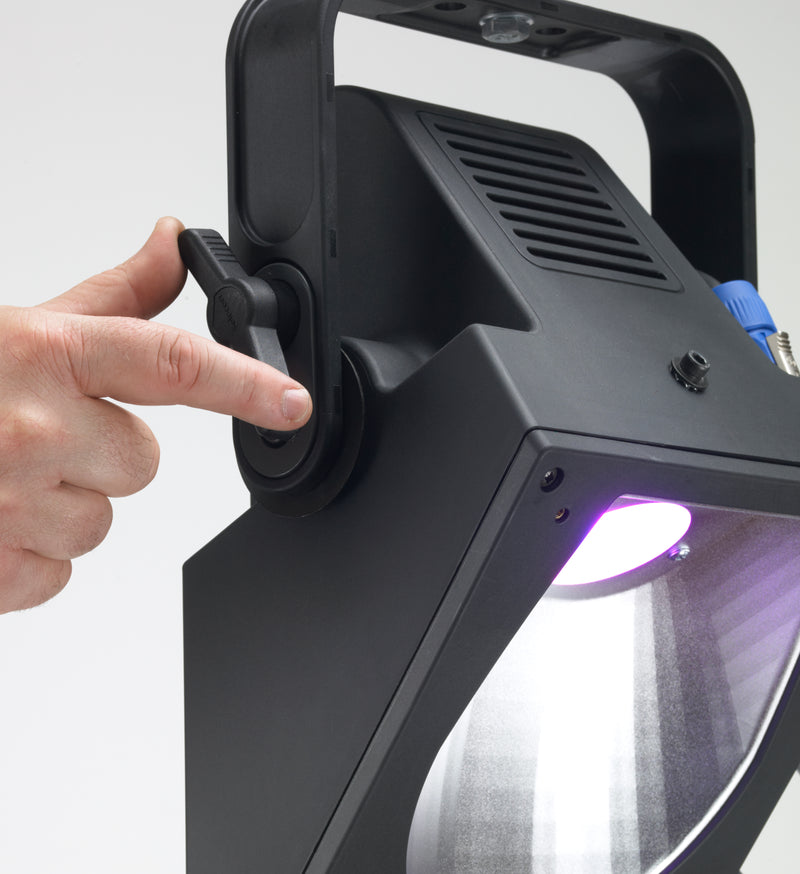

-Can be used as a top cyclorama or a groundrow simply by rotating the yoke.
-No need for dimmers, connect directly to mains supply.

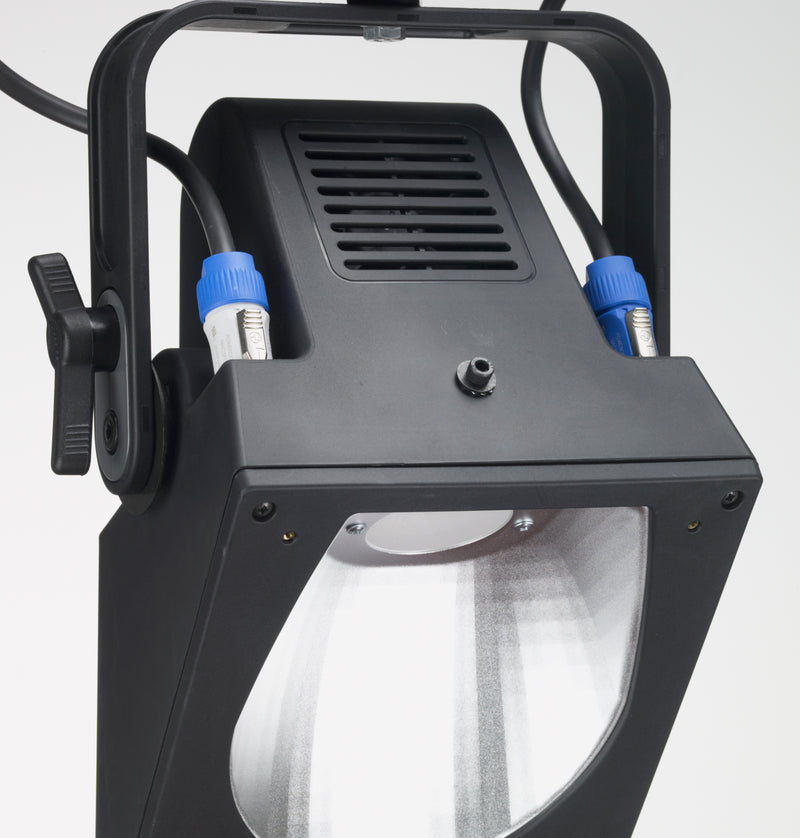

-PowerCon In/Out Power connectors.
-DMX512 Input/Output with 8 or 16-bit resolution.

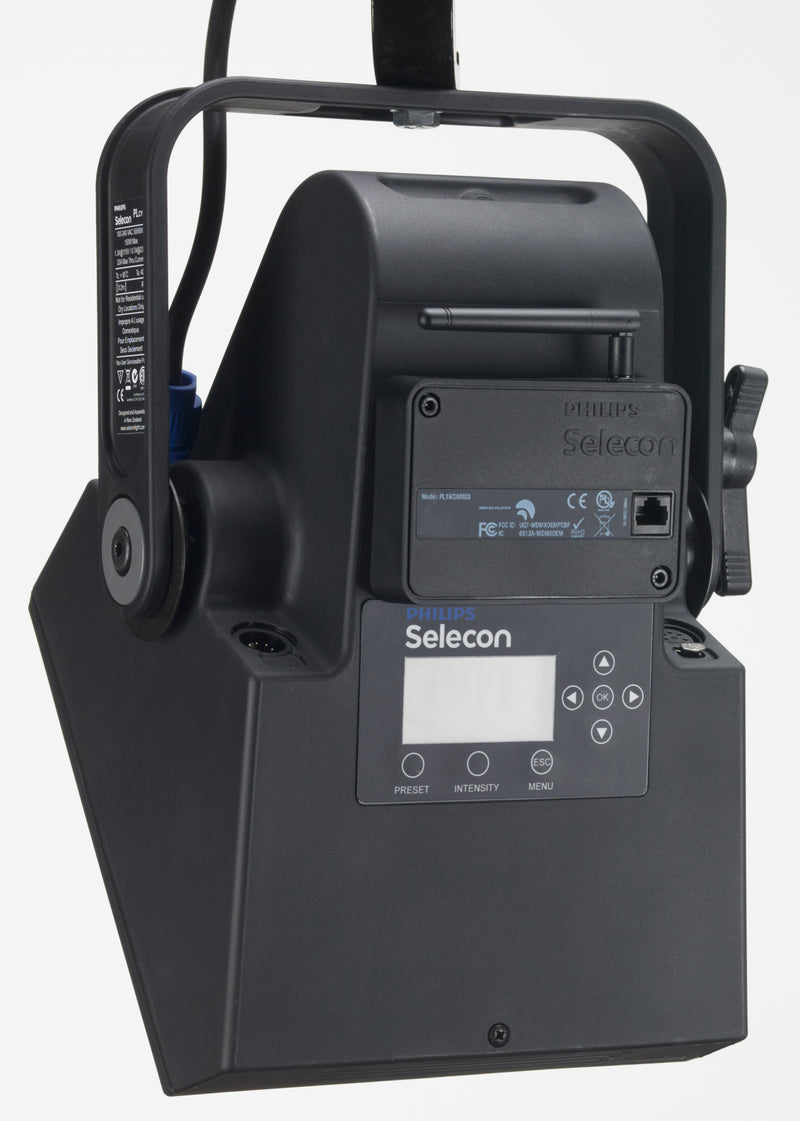

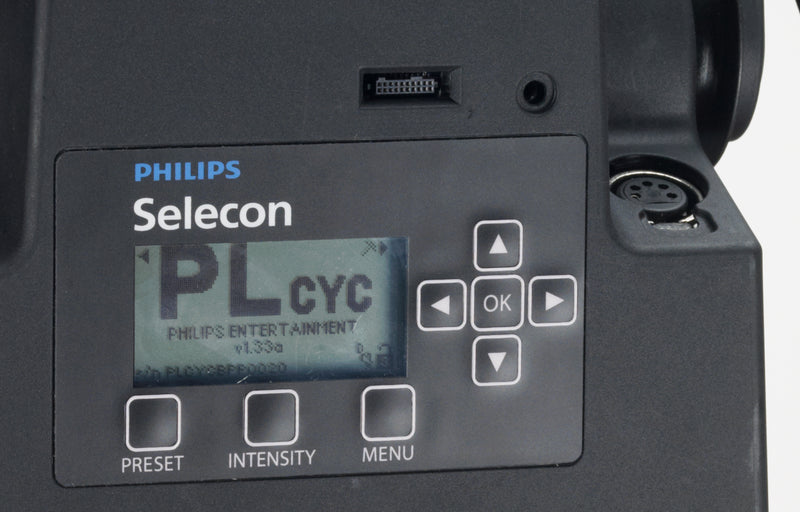

-Onboard LCD Menu for ease of addressing/setup.
Electrical and Mechanical Specifications
| Source | 1 each, true RGBW 120W LED chip |
| Output | > 2000 Lumens (white light) |
| Operating Voltage | 100V€“240V AC (auto-ranging) |
| Frequency | 50/60Hz |
| Current Draw | 1.3A at 120VAC, 0.70A at 240VAC
Maximum load with all LEDs at full RGBW |
| Ambient Temperature | 35°€“40°C |
| Control | On-board menu / DMX512 |
| Construction | Aluminium, sheet metal, and molded engineering grade plastic components |
| The LED Engine | The PLCYC1's powerful LED engine offers exceptional performance and life. Under normal operating conditions our LED engine has a life expectancy of 50,000 hours. Colour matching between PL luminaires is precise and simple. Red Correction mode and Colour Normalisation mode ensure consistent performance under different operating conditions. |
| Colours | Black or White |
| Weight | 3.4kg / 7.5lb (luminaire only) |
| Standards Compliance | ETL / cETL Listed and CE / C Tick Marked |
| Warranty | Three-year Warranty. |
Order Code : PLCYC1MKII
