Philips Showline DMX split 6 rack

by Strand
SKU SPLIT-6
Sold out - Call us for options
Original price $560.00 ex. GST - Original price $560.00 ex. GST
Original price
$560.00 ex. GST
$560.00 ex. GST - $560.00 ex. GST
Current price $560.00 ex. GST

All Prices Shown are Excluding GST.

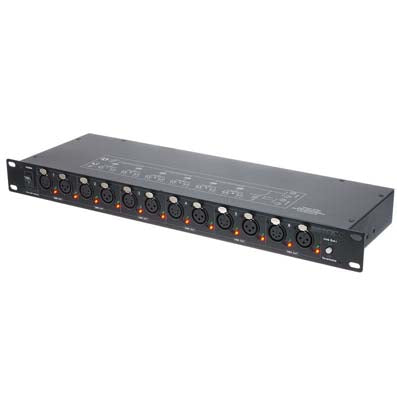

Philips Showline DMX split 6 rack

FEATURES:

  • DMX distributor with one input and 6 output
  • Absolutely electric isolation between input and output, or between output and output
  • Every DMX output features a independent driver, data + & data - indicator
  • DMX switch is incorporated allowing to isolate from the malfunction caused by DMX input
  • nput and output with a set of power supply respectively and 1A fuse

SPECIFICATION

POWER INPUT AC 120V~ 60Hz / AC 230V~ 50Hz.
DATA IN&THRU
3-pin / 5-pin XLR male socket
OUTPUT 6pcs of 3-pin / 5-pin XLR female socket
HOUSING Sheet metal with powder painting
IP RATING IP20
CONTROL DMX 512(1990
LISTING CE certified
OPERATION TEMP
-10 degC to +50 degC
STORAGE TEMPERATURE -20 degC to +70 degC
WEIGHT 2Kg
DIMENSION 19'' x1U (482x125x44mm)
