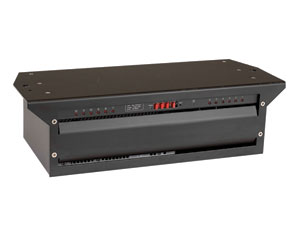

PDS750 Pipe Mount 12 Way Power Supply

PDS750 Pipe Mount 12 Way Power Supply

by Color Kinetics
SKU 109-000019-00
$3,800.00 ex. GST - $3,800.00 ex. GST
$3,800.00 ex. GST
$3,800.00 ex. GST - $3,800.00 ex. GST
$3,800.00 ex. GST

All prices shown are excluding GST

PDS750 Pipe Mount 12 Way Power Supply

109-000019-00

PDS-750 TR™ is a touring-style power/data supply for Color Kinetics® ColorBlast®, ColorBurst®, and iColor® Cove intelligent solid-state lighting fixtures. The compact, rugged device allows easy connection and disconnection of up to 12 ColorBlast 12 fixtures, 24 ColorBlast 6 fixtures, 24 ColorBurst 6 fixtures, 48 ColorBurst 4 fixtures, and 96 iColor Cove fixtures by means of industry-standard 4 pin XLR connectors.

The PDS-750 TR includes a "mini-Zapi"™ function, which enables users to address all fixtures plugged into the power/data supply to channel one, thereby allowing a starting DMX channel to be set via standard BCD switches. Built-in dimming routines allow user selectable fades to be accomplished without the need for a lighting console, making PDS-750 TR perfect for events and other temporary installations. A pass through mode allows iColor Cove fixtures to be operated. Rack mount, pipe mount, and custom output configurations are available.

The PDS-750 TRX combines advanced LED fixture control and configuration features with multi-control protocol interoperability and powerful data management resources in a single lighting control unit, and represent the first practical implementation of all of these features in single units. The units can be controlled with all popular Ethernet protocols including Streaming ACN, Art-Net, or Ki-Net, as well as wired and wireless DMX512, and are fully RDM enabled. Every unit includes a built-in SHoW DMX receiver.

The PDS-750 TRX provides full control capability for the Philips Color Kinetics ColorBlast 12 TRX, as well as 16-bit and 8-bit ColorBlast 12 TRs, iW Blast 12s, conventional 8-bit ColorBlast 12s, ColorBlast 6s, ColorSplash 2s, and other CKDMX fixtures. Each of the outputs (12 on the PDS-750 TRX) can be individually configured for the quantity of DMX slots required and the starting DMX address.

Features:

  • Three port managed switch to provide an Ethernet pass-thru to downstream devices
  • Ethernet node gateway allows the assignment of any of the 12 outputs (or the DMX output) to one of two virtual DMX512 universes
  • Can remotely reconfigure Philips Color Kinetics LED fixtures
