Nanlux Matrix 2500C

by Nanlux
Sale Sale
Original price NZD $12,552.00 ex. GST
Original price NZD $12,552.00 ex. GST - Original price NZD $12,552.00 ex. GST
Original price NZD $12,552.00 ex. GST
Current price NZD $9,414.00 ex. GST
NZD $9,414.00 ex. GST - NZD $9,414.00 ex. GST
Current price NZD $9,414.00 ex. GST

Air or Sea - You choose!


What's Not Included?

This price is for the product only. International freight and local NZ delivery is not included. Let us know your deadline and we'll quote air or sea freight costs.

Saves you money when buying multiple units.

Bonus: We might be able to loan you a demo unit while you're waiting.

Request a quote

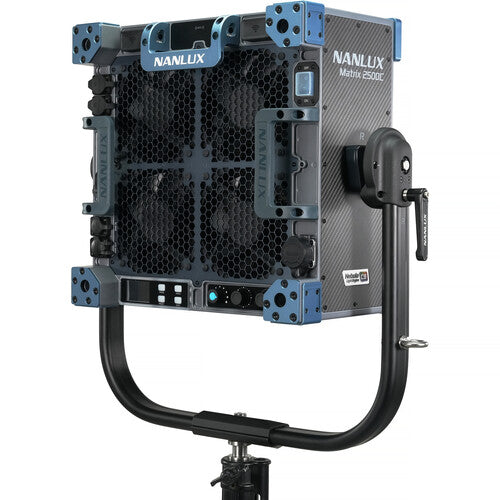

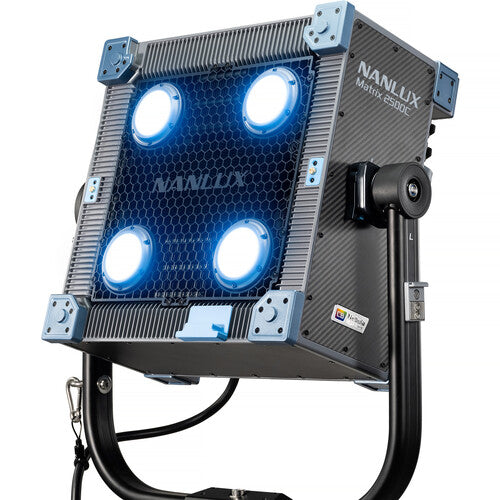

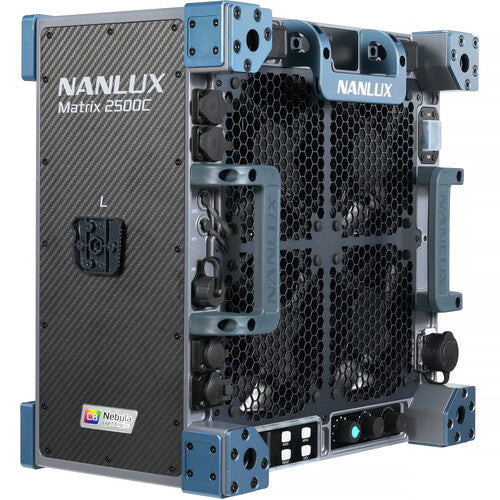

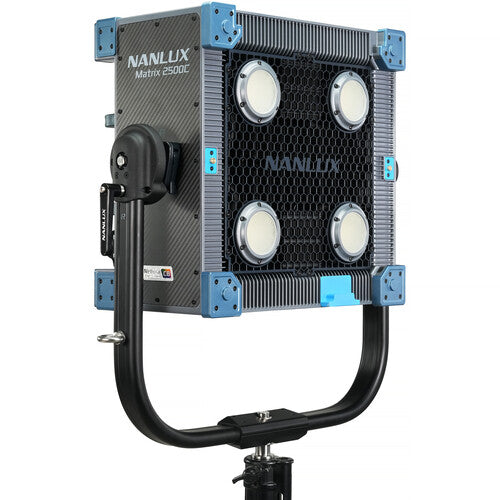

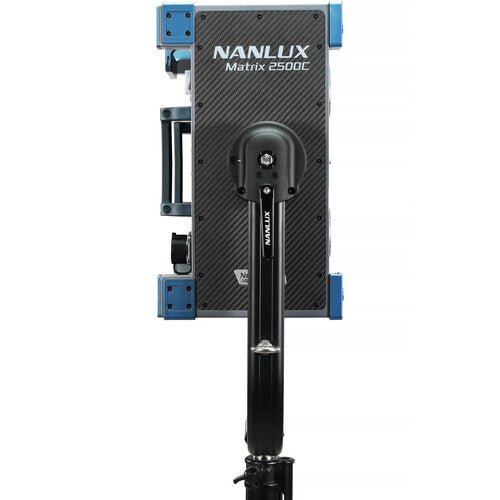

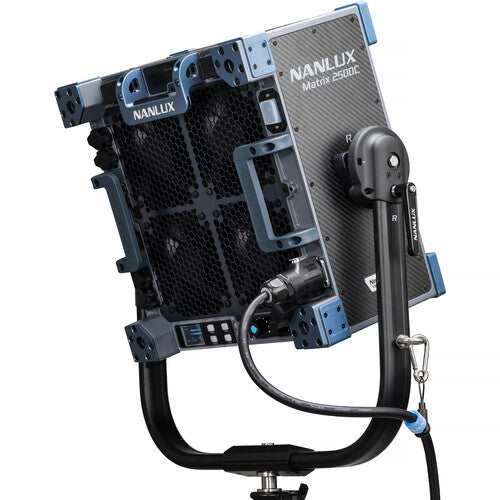

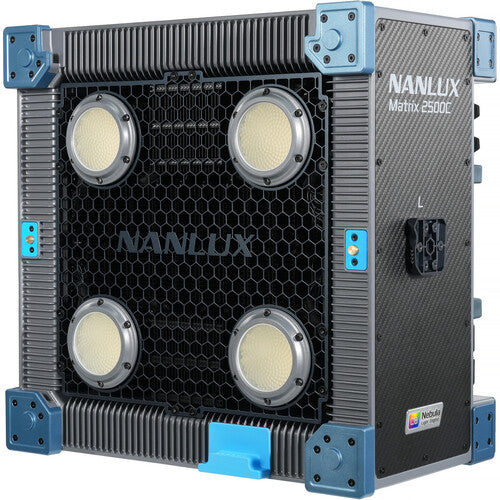

Nanlux Matrix 2500C Overview


Spreading 2500W of powerful light across four well-ventilated lamp heads, the Matrix 2500C LED RGB Multi-Source Spotlight from Nanlux is perfect for building efficient, high-output multi-fixture arrays for demanding lighting needs. Paired with the included motorized Fresnel lens at 16°, 5600K, the fixture produces a dazzling output of 611,100 lux at 3.3'. Utilizing the powerful Nebula C8 Color light engine, the light accurately emulates 1000-20,000K color temperatures with an impressive ± 200 green and magenta shift. Built for film and TV production, the sleek, all-in-one design combines the fixture's lamp heads, control unit, and power adapter into a single magnesium alloy body. IP66 rated, this fixture can sustain extreme weather conditions for uninterrupted lighting regardless of the location. Its 0-100% light dimming controls with 0.1% step increments allows precise lighting control.
Motorised Fresnel Lens
The all-in-one Fresnel lens adjusts all the beam angles of all four lenses simultaneously. Electronic contacts make it possible to remotely adjust the lens within the zoom range of 16 to 48°.
Front-to-Rear Airflow Cooling
Thanks to an innovative front-to-rear airflow system, ventilation remains unimpeded by the high-density array design to ensure stable performance. Four fan modes allow you to control the cooling system as needed depending on ambient temperature and audio recording needs.
Multi-Fixture Configurations
Matrix fixtures are designed for consistent, stable performance in multi-unit array setups. Using a separately available four-light frame it is possible to build a 10,000W lighting array powered by a single 4-way power distribution cable. The EXT port enables synchronous control of the four fixtures, effectively turning them into a single high-powered fixture. When conjoined, the spacing between lamps in adjoining fixtures closely matches the internal spacing within each fixture, guaranteeing an even beam.
Nebula C8 Light Engine
The powerful Nebula C8 Color Light Engine covers 94% of the Rec. 2020 color space and delivers accurate skin tone reproduction. and Use CCT, HSI, HSIW, RGBW, XY Coordinates, Gel, or Effect mode to fully utilize the wide CCT range and versatile color control.
Special Effects
Choose between CCT loop, INT loop, HUE loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, and Welding effects to creatively light scenes.
Control Options
  • Onboard control with three knobs and four buttons for quick adjustments
  • Use the NANLINK app to control the fixture via Bluetooth
  • Two 5-pin XLR DMX in/out ports provide a stable connection and allow you to control each lamp head individually
  • Built-in TimoTwo module makes it possible to connect to the CRMX control ecosystem for wireless DMX control
  • Two RJ45 ports support Art-Net/sACN control over Ethernet
  • NFC compatibility enables quick connection to the NANLINK app and batch DMX setup for multiple fixtures
  • Separately available wired controller features same controls as onboard interface for easy control from a distance
Key Specs
Item Type
1x LED Special Design Light
Included Light Modifier
1x Lens
Included Storage Case
No
Photometrics at 3.3' / 1 m
5600K: 8001 fc / 86,130 Lux
5600K: 56,771 fc / 611,100 Lux (with Lens)
Color Temperature
1000 to 20,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 98
TLCI 98
TM-30 Rf 96
TM-30 Rg 100
Dimming
App-Controlled / Built-In Dimmer / DMX / RDM (Continuous)
 • 0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Wi-Fi
Power Source
AC Power (Cable Included)
Input Power
100 to 240 VAC, 50 / 60 Hz at 28 A
Power Consumption
2500 W
Light Fixture
Item Type
1x LED Special Design Light
Included Light Modifier
1x Lens
Included Storage Case
No
Photometrics
5600K:
8001 fc / 86,130 Lux at 3.3' / 1 m*

5600K:
56,771 fc / 611,100 Lux at 3.3' / 1 m (with Lens)*
Color Temperature
1000 to 20,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 98
TLCI 98
TM-30 Rf 96
TM-30 Rg 100
Dimming
App-Controlled / Built-In Dimmer / DMX / RDM (Continuous)
 • 0 to 100%
Cooling System
Fan
Beam Angle
70°
16 to 48° with Included Lens
Built-In Flash
No
Preprogrammed Effects
Yes
Umbrella Mount
No
Front Accessory Mount
Proprietary
Lens
Lens Type
Fresnel
Lens Diameter
15.7" / 40 cm
Connectivity
Wireless Remote Control Type
Wi-Fi
Mobile App Compatible
Yes: Android & iOS
App Name: NANLINK
Power & I/O
Power Source
AC Power (Cable Included)
Inputs/Outputs
2x XLR 5-Pin DMX Input/Output
2x RJ45 Network Input/Output
Input Power
100 to 240 VAC, 50 / 60 Hz at 28 A
Included Adapter / Cable
1x Unspecified to Unspecified AC to DC Adapter (24.6' / 7.5 m)
Power Consumption
2500 W
Fuse
28 A
Mounting
Yoke Type
Manually-Operated Yoke
General
Display
LCD
Environmental Resistance
Dust/Water-Resistant (IP66)
Materials
Magnesium Alloy
Dimensions
15.7 x 15.7 x 9.2" / 39.9 x 39.9 x 23.4 cm (Fixture)
Weight
40.79 lb / 18.5 kg (Fixture)
10.14 lb / 4.6 kg (Lens)
Packaging Info
Package Weight
127.5 lb
Box Dimensions (LxWxH)
30.25 x 26.38 x 22.88"


Matrix 2500C
Light Only
Distance 3M 5M 7M
3200K 8570 lux / 796 fc 3230 lux / 300 fc 1673 lux / 155 fc
5600K 9570 lux / 889 fc 3650 lux / 339 fc 1897 lux / 176 fc
R 1254 lux / 116 fc 475 lux / 44 fc 247 lux / 23 fc
G 4890 lux / 454 fc 1844 lux / 171 fc 953 lux / 89 fc
B 823 lux / 76 fc 311 lux / 29 fc 160 lux / 15 fc
With FL-MT25 (16°)
Distance 3M 5M 7M
3200K 60500 lux / 5620 fc 21500 lux / 1997 fc 11100 lux / 1031 fc
5600K 67900 lux / 6308 fc 24590 lux / 2284 fc 12530 lux / 1164 fc
R 8650 lux / 804 fc 3140 lux / 292 fc 1603 lux / 149 fc
G 33600 lux / 3121 fc 12140 lux / 1128 fc 6120 lux / 569 fc
B 5950 lux / 553 fc 2187 lux / 203 fc 1098 lux / 102 fc
With FL-MT25 (48°)
Distance 3M 5M 7M
3200K 14500 lux / 1347 fc 5390 lux / 501 fc 2828 lux / 263 fc
5600K 16300 lux / 1514 fc 6110 lux / 568 fc 3200 lux / 297 fc
R 2165 lux / 201 fc 758 lux / 70 fc 393 lux / 37 fc
G 8370 lux / 778 fc 3090 lux / 287 fc 1619 lux / 150 fc
B 1432 lux / 133 fc 533 lux / 50 fc 278 lux / 26 fc
