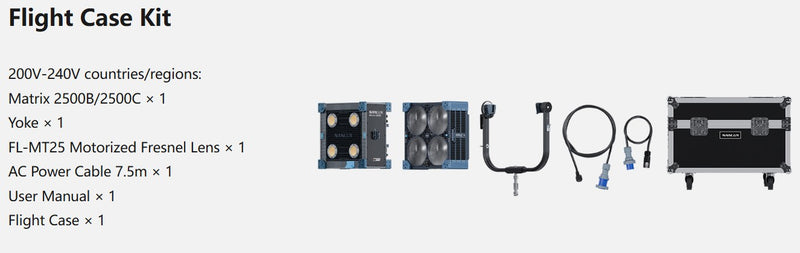

Nanlux Matrix 2500B with Flightcase

by Nanlux
Sale Sale
Original price NZD $11,863.00 ex. GST
Original price NZD $11,863.00 ex. GST - Original price NZD $11,863.00 ex. GST
Original price NZD $11,863.00 ex. GST
Current price NZD $8,898.00 ex. GST
NZD $8,898.00 ex. GST - NZD $8,898.00 ex. GST
Current price NZD $8,898.00 ex. GST

Air or Sea - You choose!


What's Not Included?

This price is for the product only. International freight and local NZ delivery is not included. Let us know your deadline and we'll quote air or sea freight costs.

Saves you money when buying multiple units.

Bonus: We might be able to loan you a demo unit while you're waiting.

Request a quote

Nanlux Matrix 2500B Overview


Spreading 2500W of powerful light across four well-ventilated lamp heads, the Matrix 2500B LED Bi-Color Multi-Source Spotlight from Nanlux is perfect for building efficient, high-output multi-fixture arrays for demanding lighting needs. Paired with the included motorized Fresnel lens at 16°, 5600K, the fixture produces a dazzling output of 927,000 lux at 3.3'. Utilizing an innovative Nebula B4 light engine, the light accurately emulates 2700-6500K color temperatures with an impressive ± 80 green and magenta shift. Built for film and TV production, the sleek, all-in-one design combines the fixture's lamp heads, control unit, and power adapter into a single magnesium alloy body. IP66-rated, this fixture can sustain extreme weather conditions for uninterrupted lighting regardless of the location. Spreading 2500W of powerful light across four well-ventilated lamp heads, the Matrix 2500B LED Bi-Color Multi-Source Spotlight from Nanlux is perfect for building efficient, high-output multi-fixture arrays for demanding lighting needs. Paired with the included motorized Fresnel lens at 16°, 5600K, the fixture produces a dazzling output of 927,000 lux at 3.3'. Utilizing an innovative Nebula B4 light engine, the light accurately emulates 2700-6500K color temperatures with an impressive ± 80 green and magenta shift. Built for film and TV production, the sleek, all-in-one design combines the fixture's lamp heads, control unit, and power adapter into a single magnesium alloy body. IP66-rated, this fixture can sustain extreme weather conditions for uninterrupted lighting regardless of the location. Its 0-100% light dimming controls with 0.1% step increments allows precise lighting control. Motorized Fresnel Lens The all-in-one Fresnel lens adjusts all the beam angles of all four lenses simultaneously. Electronic contacts make it possible to remotely adjust the lens within the zoom range of 16 to 48°. Front-to-Rear Airflow Cooling Thanks to an innovative front-to-rear airflow system, ventilation remains unimpeded by the high-density array design to ensure stable performance. Four fan modes allow you to control the cooling system as needed depending on ambient temperature and audio recording needs.
Motorised Fresnel Lens
The all-in-one Fresnel lens adjusts all the beam angles of all four lenses simultaneously. Electronic contacts make it possible to remotely adjust the lens within the zoom range of 16 to 48°.
Front-to-Rear Airflow Cooling
Thanks to an innovative front-to-rear airflow system, ventilation remains unimpeded by the high-density array design to ensure stable performance. Four fan modes allow you to control the cooling system as needed, depending on ambient temperature and audio recording needs.
Multi-Fixture Configurations
Matrix fixtures are designed for consistent, stable performance in multi-unit array setups. Using a separately available four-light frame it is possible to build a 10,000W lighting array powered by a single 4-way power distribution cable. The EXT port enables synchronous control of the four fixtures, effectively turning them into a single high-powered fixture. When conjoined, the spacing between lamps in adjoining fixtures closely matches the internal spacing within each fixture, guaranteeing an even beam.
Special Effects
Choose between CCT loop, INT loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion, and Welding effects to creatively light scenes.
Control Options
  • Onboard control with three knobs and four buttons for quick adjustments.
  • Use the NANLINK app to control the fixture via Bluetooth.
  • Two 5-pin XLR DMX in/out ports provide a stable connection and allow you to control each lamp head individually.
  • Built-in TimoTwo module makes it possible to connect to the CRMX control ecosystem for wireless DMX control.
  • Two RJ45 ports support Art-Net/sACN control over Ethernet.
  • NFC compatibility enables quick connection to the NANLINK app and batch DMX setup for multiple fixtures.
  • A separately available wired controller features the same controls as the onboard interface for easy control from a distance.

Key Specs
Item Type
1x LED Special Design Light
Included Light Modifier
1x Lens
Included Storage Case
No
Photometrics at 3.3' / 1 m
80° at 3200K: 9523 fc / 102,510 Lux (Unmodified)
16° at 3200K: 72,657 fc / 782,100 Lux (with Lens)
48° at 3200K: 17,817 fc / 191,790 Lux (with Lens)
80° at 5600K: 11,262 fc / 121,230 Lux (Unmodified)
16° at 5600K: 86,118 fc / 927,000 Lux (with Lens)
48° at 5600K: 21,103 fc / 227,160 Lux (with Lens)
Color Temperature
2700 to 6500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 98
TLCI 98
TM-30 Rf 95
TM-30 Rg 100
SSI 85 at 3200K
SSI 74 at 5600K
Dimming
App-Controlled / Built-In Dimmer / Controller Not Included / DMX / RDM (Continuous)
 • 0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
CRMX
Bluetooth
Power Source
AC Power (Cable Included)
Input Power
100 to 240 VAC, 50 / 60 Hz at 28 A
Power Consumption
2500 W
Fixture Mounting
1x 1-1/8" Stud (Via Yoke Mount)
Light Fixture
Item Type
1x LED Special Design Light
Included Light Modifier
1x Lens
Included Storage Case
No
Photometrics
80° at 3200K:
9523 fc / 102,510 Lux at 3.3' / 1 m (Unmodified)*
1058 fc / 11,390 Lux at 9.8' / 3 m (Unmodified)
401 fc / 4320 Lux at 16.4' / 5 m (Unmodified)

16° at 3200K:
72,657 fc / 782,100 Lux at 3.3' / 1 m (with Lens)*
8073 fc / 86,900 Lux at 9.8' / 3 m (with Lens)
3001 fc / 32,300 Lux at 16.4' / 5 m (with Lens)

48° at 3200K:
17,817 fc / 191,790 Lux at 3.3' / 1 m (with Lens)*
1980 fc / 21,310 Lux at 9.8' / 3 m (with Lens)
742 fc / 7990 Lux at 16.4' / 5 m (with Lens)

80° at 5600K:
11,262 fc / 121,230 Lux at 3.3' / 1 m (Unmodified)*
1251 fc / 13,470 Lux at 9.8' / 3 m (Unmodified)
476 fc / 5120 Lux at 16.4' / 5 m (Unmodified)

16° at 5600K:
86,118 fc / 927,000 Lux at 3.3' / 1 m (with Lens)*
9569 fc / 103,000 Lux at 9.8' / 3 m (with Lens)
3549 fc / 38,200 Lux at 16.4' / 5 m (with Lens)

48° at 5600K:
21,103 fc / 227,160 Lux at 3.3' / 1 m (with Lens)*
2345 fc / 25,240 Lux at 9.8' / 3 m (with Lens)
880 fc / 9470 Lux at 16.4' / 5 m (with Lens)

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
2700 to 6500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 98
TLCI 98
TM-30 Rf 95
TM-30 Rg 100
SSI 85 at 3200K
SSI 74 at 5600K
Dimming
App-Controlled / Built-In Dimmer / Controller Not Included / DMX / RDM (Continuous)
 • 0 to 100%
Cooling System
Fan
Beam Angle
80° Unmodified
16 to 48° with Included Lens
Built-In Flash
No
Pixel Zones
4
Preprogrammed Effects
Yes
Umbrella Mount
No
Front Accessory Mount
Proprietary
Lens
Lens Type
Fresnel
Connectivity
Wireless Remote Control Type
CRMX
Bluetooth
Mobile App Compatible
Yes: Android & iOS
App Name: NANLINK
Functionality: Remote Control
Power & I/O
Power Source
AC Power (Cable Included)
Inputs/Outputs
1x XLR 5-Pin Male DMX Input
1x XLR 5-Pin Female DMX Output
2x RJ45 Female Network Input/Output
1x Unspecified AC Power Input (120 to 125 VAC, 60 Hz at 28 A)
1x Unspecified Female Service Input
2x Unspecified Remote Input
Input Power
100 to 240 VAC, 50 / 60 Hz at 28 A
Included Adapter / Cable
1x USA Type-A/B to Unspecified AC to DC Adapter ( 7.5 m)
1x Bare Ends to Unspecified Cable ( 7.5 m)
Inline Switch
Yes
Power Pass-Thru
No
Power Consumption
2500 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1x 1-1/8" Stud (Via Yoke Mount)
General
Display
Yes
Environmental Resistance
Dust/Water-Resistant (IP66)
Materials
Magnesium Alloy
Dimensions
39.9 x 39.9 x 23.4 cm (Fixture without Lens)
Weight
17 kg (Fixture without Lens)
4.6 kg (Lens)
Packaging Info
Package Weight
74.5 lb
Box Dimensions (LxWxH)
25 x 25 x 22.38"
Illumination (lux / fc)
Matrix 2500B
Light Only
Distance 3M 5M 7M
2700K 10240 lux / 951 fc 3890 lux / 361 fc 2018 lux / 187 fc
3200K 11390 lux / 1058 fc 4320 lux / 401 fc 2240 lux / 208 fc
4300K 13280 lux / 1234 fc 5050 lux / 469 fc 2618 lux / 243 fc
5600K 13470 lux / 1251 fc 5120 lux / 476 fc 2651 lux / 246 fc
6500K 11910 lux / 1106 fc 4530 lux / 421 fc 2345 lux / 218 fc
With FL-MT25 (16°)

3M 5M 7M
2700K 78100 lux / 7255 fc 29060 lux / 2700 fc 14710 lux / 1367 fc
3200K 86900 lux / 8073 fc 32300 lux / 3001 fc 16400 lux / 1524 fc
4300K 101900 lux / 9467 fc 37700 lux / 3502 fc 19200 lux / 1784 fc
5600K 103000 lux / 9569 fc 38200 lux / 3549 fc 19450 lux / 1807 fc
6500K 91200 lux / 8472 fc 33800 lux / 3140 fc 17220 lux / 1600 fc
With FL-MT25 (48°)
Distance 3M 5M 7M
2700K 19180 lux / 1782 fc 7180 lux / 667 fc 3770 lux / 350 fc
3200K 21310 lux / 1980 fc 7990 lux / 742 fc 4200 lux / 390 fc
4300K 24950 lux / 2318 fc 9350 lux / 869 fc 4920 lux / 457 fc
5600K 25240 lux / 2345 fc 9470 lux / 880 fc 4990 lux / 464 fc
6500K 22360 lux / 2077 fc 8390 lux / 779 fc 4410 lux / 410 fc
