NANLUX Evoke 5C Kit

The Nanlux Evoke 5C RGB LED Spotlight Kit is a compact full-color LED lighting kit built for accent lighting, product photography, miniature and macro work, practical effects, and portable location use. Centered around the 6W Evoke 5C fixture, this kit combines RGB output, an extremely wide 1000 to 20,000K CCT range, green/magenta adjustment, and an IP67-rated weatherproof design with a versatile set of magnetic light modifiers and a battery grip for expanded runtime and shaping options.

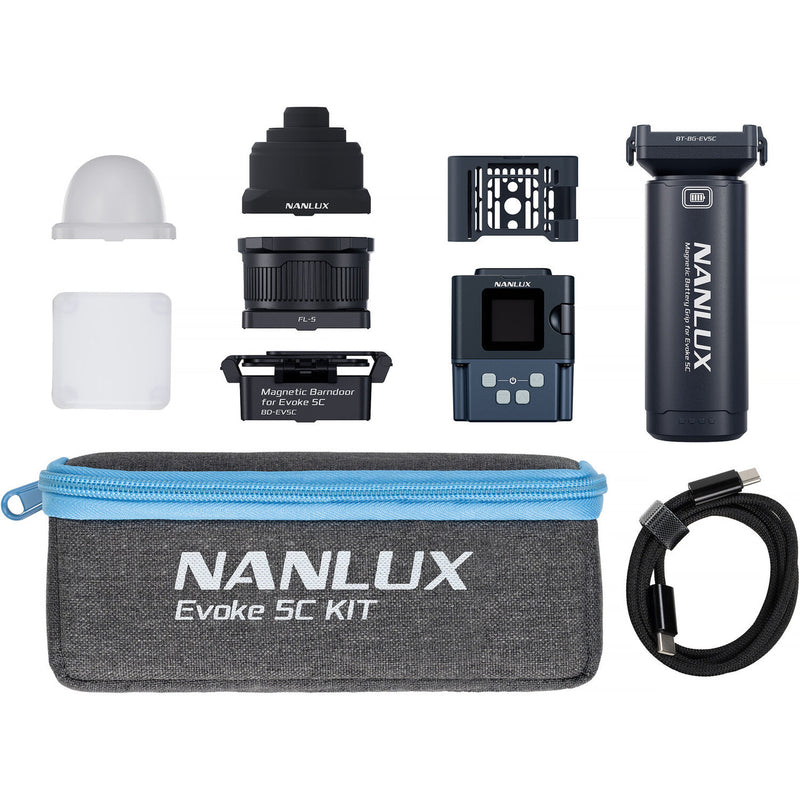

Using Nanlux’s Nebula C8 light engine, the Evoke 5C delivers advanced color mixing in an ultra-small 5.6 x 4.3 x 4.3 cm body weighing just 160 g. The included Fresnel lens, diffuser, soft dome, barndoors, snoot, thermal shield, battery grip, USB-C cable, and carry bag make this kit a highly adaptable portable lighting solution for creators who need precision, speed, and flexibility in a minimal footprint.

Core Features
The kit includes the Evoke 5C RGB LED spotlight together with a magnetic Fresnel lens, battery grip, and multiple magnetic modifiers for a flexible all-in-one lighting setup.
The light supports full RGB output, 0 to 100% dimming, and a broad 1000 to 20,000K color temperature range for both technical matching and creative lighting design.
Nanlux’s Nebula C8 light engine delivers rich multi-color output in a highly compact fixture suitable for hidden placement, detail lighting, and practical effects.
The bare light outputs up to 496 lux at 1 m at 5600K, while the included Fresnel lens boosts intensity for more focused illumination.
High CRI 98 and TLCI 98 ratings help ensure accurate color reproduction for photography, video production, and mixed lighting environments.

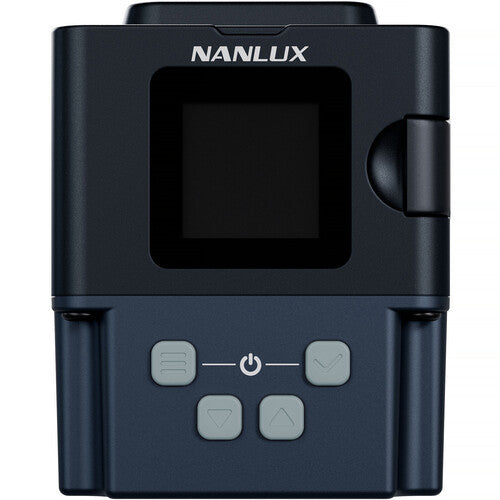

Control options include onboard controls, Nanlink app control over Bluetooth, DMX/RDM support, optional CRMX operation, and NFC pairing.
The built-in battery provides up to 50 minutes of runtime at full brightness, while the included battery grip extends runtime up to 4.7 hours at 100% brightness.
Its IP67-rated construction helps protect the fixture against dust, water, and harsh weather for dependable use on demanding indoor or outdoor shoots.
Compact Output for Detail Work
The Evoke 5C is well suited to subtle fill, product accents, miniature sets, tabletop photography, and hidden in-frame placement where a larger fixture would be impractical. Its small size makes it easy to conceal behind props or integrate into practical scenes, while still providing enough output to add depth, highlights, or controlled illumination to a subject.

Magnetic Modifier System
This kit expands the light’s versatility with a magnetic Fresnel lens, barndoors, diffuser, soft dome, and snoot. Each accessory attaches quickly for fast on-set transitions between focused output, softened illumination, beam restriction, and more directional selective lighting without slowing down your workflow.

Advanced RGB and CCT Control
With full RGB color capability, a 1000 to 20,000K CCT range, and green/magenta tint adjustment, the Evoke 5C offers broad creative and corrective lighting control. It supports CCT, HSI, HSIW, RGBW, XY, Gel, and Effect modes, making it suitable for everything from precise color matching to dramatic stylized looks.

Gel Mode and Built-In Effects
The light includes 460 LEE and Rosco gel presets for quick access to familiar color references, along with 15 built-in effects such as flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, fireworks, explosion, and welding. These presets make it easy to create cinematic effects or practical source simulations without additional accessories.

Flexible Wired and Wireless Control
For simple or advanced setups, users can control the light directly onboard or through the Nanlink app 2.0 over Bluetooth. DMX/RDM support and optional LumenRadio CRMX compatibility allow the Evoke 5C to integrate into larger lighting systems, while NFC pairing adds another convenient control option for fast setup.

Battery Power and Portable Runtime
The fixture’s built-in rechargeable battery supports cable-free use for compact location lighting, quick practical setups, and mobile content creation. The supplied magnetic battery grip extends runtime significantly, while USB-C charging and support for electronic-contact charging accessories expand powering flexibility for longer shoots.

IP67 Protection and Everyday Portability
Built for demanding environments, the Evoke 5C features IP67-rated weather resistance for protection against dust, water, and rough production conditions. The included carry bag keeps the full kit organized and portable, making it easy to pack into a travel kit, clip onto a belt, or carry alongside a larger lighting package.
