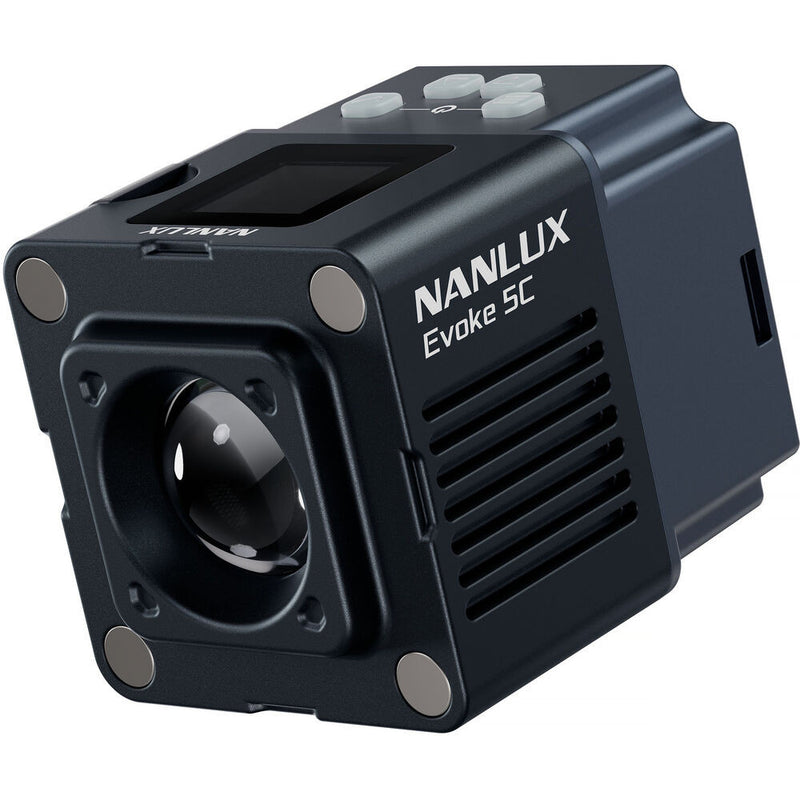

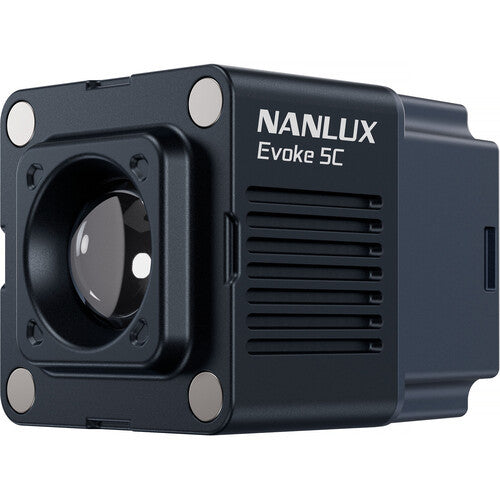

NANLUX Evoke 5C

The Nanlux Evoke 5C RGB LED Spotlight is an ultra-compact full-color LED spotlight designed for accent lighting, product work, miniature and macro photography, practical lighting, and creative effects in demanding indoor or outdoor environments. Built around Nanlux’s Nebula C8 light engine, this 6 W fixture offers RGB color control, a broad 1000 to 20,000K CCT range, green/magenta tint adjustment, and a weatherproof IP67-rated design in a highly portable 5.6 x 4.3 x 4.3 cm body with an integrated battery.

Despite its small size, the Evoke 5C delivers impressive output for detail lighting and hidden placement within a scene, while its magnetic accessory system makes it easy to adapt for diffusion, mounting, and safe handling. With onboard control, Bluetooth app support, DMX/RDM compatibility, optional CRMX integration, and NFC functionality, it is built to serve both simple portable setups and more advanced lighting workflows.

Core Features
The Evoke 5C provides full RGB color control, 0 to 100% dimming, and a wide 1000 to 20,000K color temperature range for highly flexible creative lighting.
Nanlux’s Nebula C8 light engine produces red, deep red, amber, lime, green, cyan, blue, and indigo output for rich color mixing in a compact spotlight form.
The fixture delivers up to 496 lux at 1 m when used bare at 5600K, making it suitable for accent lighting, practical effects, and close-range subject illumination.
High CRI 98 and TLCI 98 ratings support accurate color rendering for video production, photography, and mixed-light environments.

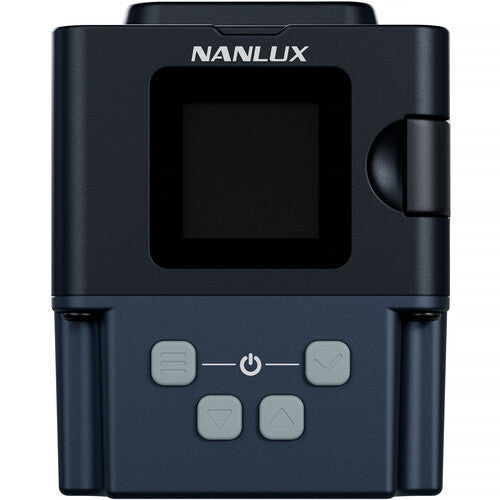

Control options include onboard adjustment, Bluetooth app control via Nanlink, DMX/RDM support, optional LumenRadio CRMX integration, and NFC connectivity.
Its built-in rechargeable battery provides portable operation with up to 50 minutes of runtime at maximum brightness.
The IP67-rated housing offers strong protection against dust and water, including temporary submersion resistance for challenging production conditions.

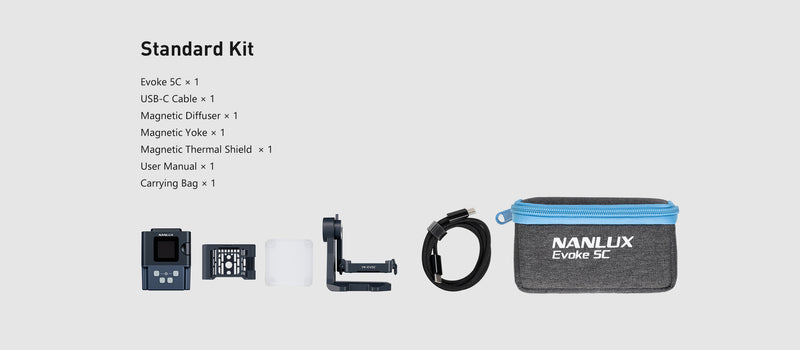

A magnetic accessory ecosystem, included diffuser, included yoke, and included thermal shield expand mounting and light-shaping flexibility straight out of the case.
Compact Output for Detail Work
The Evoke 5C is designed for subtle fill, product accents, miniature setups, practical effects, and hidden placement on set. Its compact size allows it to fit into tight spaces or behind in-frame objects, while still delivering enough output to shape surfaces, add highlights, or create depth within a scene.

Advanced RGB and CCT Control
With a wide 1000 to 20,000K CCT range, full RGB color capability, and green/magenta adjustment, the light offers extensive control for matching ambient sources or building stylized looks. Multiple lighting modes, including CCT, HSI, RGBW, XY, Gel, and Effect modes, give users flexible tools for both technical correction and creative lighting design.

Gel Mode and Built-In Effects
The Evoke 5C includes 460 LEE and Rosco gel presets for quick color selection, making it easier to recreate familiar lighting references without manual color building. It also provides 15 built-in effects such as flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, fireworks, explosion, and welding for fast cinematic and practical lighting simulations.

Flexible Wired and Wireless Control
Nanlux equips the Evoke 5C for a range of workflows, from simple solo setups to larger controlled environments. Users can operate the fixture via onboard controls or the Nanlink app over Bluetooth, while DMX/RDM support and optional CRMX compatibility make it suitable for integration into more advanced lighting systems. NFC functionality adds another convenient layer of setup and device interaction.

Integrated Battery and Charging Options
The built-in 3.7 V rechargeable battery allows the fixture to run without an external power source, making it especially useful for location work, quick practical setups, and mobile shooting. It can be charged via USB-C using a compatible adapter or power bank, and it also supports electronic-contact charging with compatible optional accessories such as a battery grip, E27 socket adapter, or charging case.

Magnetic Accessories and Mounting Versatility
The included magnetic diffuser, magnetic yoke, and magnetic thermal shield make the light easy to adapt for different shooting needs. In addition to its magnetic mounting capability, the fixture includes a 1/4"-20 mounting point with anti-twist support, allowing it to be handheld, mounted to compact rigs, or positioned as a practical or accent source in a wide variety of environments.

IP67 Protection for Demanding Environments
Built for more than studio use, the Evoke 5C features an IP67-rated housing that helps protect it against dust, water, and adverse weather. This rugged design makes it a dependable option for outdoor production, travel kits, and demanding location shoots where small fixtures still need serious durability.
