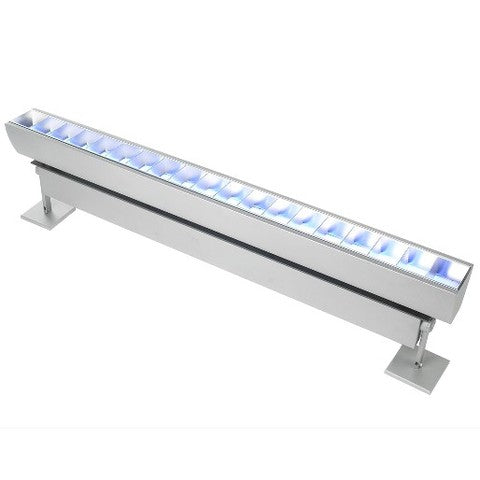

Martin Cyclo Directional DMX titan

by Martin

SKU 90550055

$0.00 ex. GST - $0.00 ex. GST

$0.00 ex. GST

$1,930.00 ex. GST

$1,930.00 ex. GST - $1,930.00 ex. GST

$1,930.00 ex. GST

All Prices Shown are Excluding GST.

Martin Cyclo Directional

The Cyclo Directional provides a simple dynamic lighting solution for retail and other commercial applications, offering a bright linear luminaire that uniformly floodlights surfaces in color and variable white light.

FEATURES

54 W T5 fluorescent tubes
Long lamp life (20 000 hrs)
RGB color mixing, variable color temperature
High optical performance: uniform distribution of light and color
0-100% intensity control
High output: 3 x 54 W T5 fluorescent tubes
DMX control
End-user programming: no extra controller required
Choice of surface or track mounting with directional aiming

SPECIFICATIONS

PHYSICAL

Length: 1200 mm

Width: 107 mm

Height: 285 mm from lighting track, mounting arms included

Height: 218 mm without mounting arms

Weight: 8.7 kg

DYNAMIC EFFECTS

Color mixing: RGB

Red: 0 - 100%

Green: 0 - 100%

Blue: 0 - 100%

CONTROL AND PROGRAMMING

Control options: DMX, stand-alone, synchronized (host/client)

DMX channels: 3

Stand-alone memory: 20 scenes

DMX address setting: DIP switch

Stand-alone and host/client programming: DIP switch

Protocol: USITT DMX512/1990

Receiver: RS-485

LAMP

Type: 54 W T5 fluorescent tubes

Approved lamps: Osram T5 HO Series

Average lifetime: 20 000 hours

Socket: G5

CONSTRUCTION

Housing: Mild steel

Finish: Electrostatic powder-coated

Colors: White, titanium

Reflector(s): High specular 99.9% aluminum

Protection rating: IP20

INSTALLATION

Mounting points: Lighting track with universal track adaptor. Surface mount with optional brackets

Orientation: Any

Minimum free space: 25 mm

CONNECTIONS

Power connection: Ensto quick connector

Data connection: RJ-45 sockets
