Infinity TS-300 Profile Engine Body
All Prices Shown are Excluding GST.
Infinity TS-300 Profile Engine Body Only
The new standard for Theatre illumination, the Infinity Signature series. The tools you have always wanted to create beautiful, energy efficient lighting for your theatre, church, studio or school. These luminaires utilise the latest LED technology with European software while having operational and lens options familiar to any entertainment technician. To create this new range of theatre lights, we have found an excellent partner in Robert Juliat
Looking for fitting LED-based answers to conventional Tungsten challenges was more than enough motivation for Infinity to design the Signature series. The TS-300 Profile Engine is one of those answers. Built around a powerful, reliable 300W Lumiled LED engine with a colour temperature of 3200K and a high, consistent CRI of more than 96 it will match conventional 750W Tungsten fixtures perfectly. Various calibration systems inside the intelligent, intuitive software make sure that the TS-300 will fit in seamlessly in Tungsten setups. Very well equipped for theatre or TV-applications where a steady output, high quality of light and silent fan operation are not only required but actual necessities. The Infinity Signature TS-300 has the complete package.
- Delivers the performance of 750W Tungsten halogen unit
- 300W, 3200K Custom designed Lumiled Engine
- CRI > 96 Consistently
- Consistent colour temperature regardless of intensity
- 16 bit Intelligent high resolution virtual dimming
- Factory calibrated
- RDM allowing for remote setting and recall of information
- Custom design silent cooling system
- Neutrik connections
Specifications
LED Engine | |
Source | 300W Lumiled White LED engine using custom designed array. |
Optical Information | |
Output | 8300lm |
Light quality | >96 CRI Consistently |
Colour Temperature | 3200K |
Beam Angles | 15°-35°, 25°-50°, 5°,10°,14°, 19°, 26°, 36°, 50° (optional) |
Electrical Specifications | |
Voltage | 100 -240 volts AC. |
Frequency | 50/60 Hz |
Power Factor | 0.97 |
Consumption | 300W max |
Environmental Specifications | |
Ambient Temp | 0°C ~40°C (operating) / -10°C ~45°C (start-up) |
IP Rating | IP 20 indoor use only |
Conformity | CE Mark |
Control Specifications | |
Control | On board Menu, RDM, DMX512 |
Fan mode | Silent, Auto, Full |
DMX Channels | Dimmer Mode, 1Ch |
Basic Mode, 2Ch | |
Pro Mode, 4Ch | |
Mechanical Specifications | |

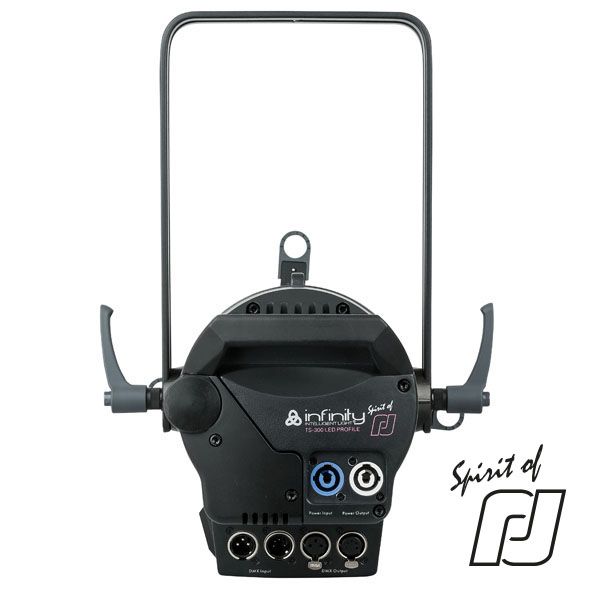

Power connections | Neutrik powerCON in- and through |
Data connections | Neutrik 3&5p DMX in- and through |
Gobo slot | B size, separate slot for diffusor or Iris |
Pole operated | Available as option |
Construction | Machined Aluminium, sheet metal, moulded engineering grade plastics. |
Colour | Black |
Dimensions | 468 x 323 x457 mm |
Weight | 8.4Kg |
Included accessoires | Goboholder, Powercable, Safetycable |
