Infinity

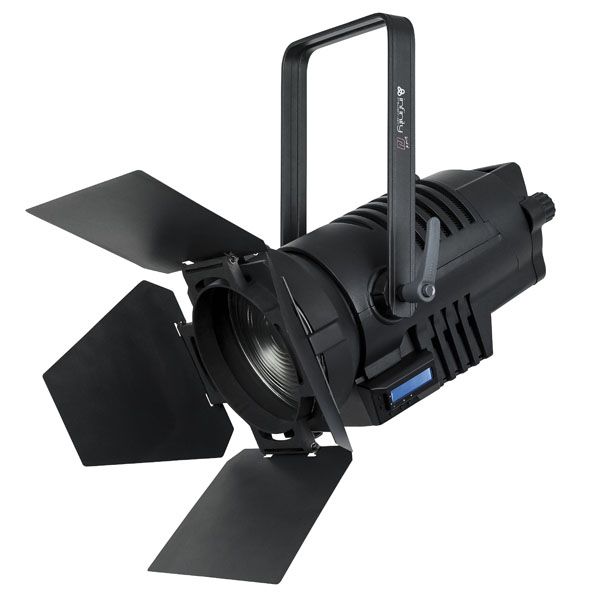

Infinity TF-300 Fresnel LED

  • Sale
  • Regular price $2,965.00


All Prices Shown are Excluding GST.

Infinity TF-300 Fresnel

3200K Fresnel 300W LED

The new standard for Theatre illumination, the Infinity Signature series. The tools you have always wanted to create beautiful, energy efficient lighting for your theatre, church, studio or school. These luminaires utilise the latest LED technology with European software while having operational and lens options familiar to any entertainment technician. To create this new range of theatre lights, we have found an excellent partner in Robert Juliat

The Infinity Signature Series Theatre Fresnel is a state of the art high resolution theatrical luminaire. Offering the option of either manual or DMX focus to achieve a soft pool of light on stage. Using Lumiled LEDs to deliver a consistent and accurate 3200K intensely bright output that can be seamlessly blended with other units to achieve smooth washes of light across the stage. The Infinity Theatre Fresnel is your option for venues where you need the power normally found in a 1.2kW tungsten fixture. Our 300W warm white custom LED array delivers the power you need. Our unique dimming software allows for perfect flickerfree crossfades or instant bumps and flashes. This together with lower power consumption make the Infinity Theatre Fresnel TF-300 the only luminaire you will need for washes where intensity is your critical issue. When it comes to mechanical focusing all operations can be performed with one hand. The zoom focus mechanism is simple and intuitive, simply twist the focus knob. It is also possible to use DMX to adjust focus making this the perfect light for specials or for adjusting focus during a show. Our optional four leaf rotating barndoor mean you can shape the light as you need. Inserting and locking a colour frame in place is simple and intuitive.

  • Delivers the performance of 1kW Tungsten Halogen unit with a consumption of 300W
  • Zoomrange 15° -35°
  • Manual and motorized zoom control
  • Consistent colour temperature regardless of intensity output
  • 1, 3 and 5 Channel modes
  • RDM allowing for remote setting and recall of information.
  • Intuitive onboard menus.

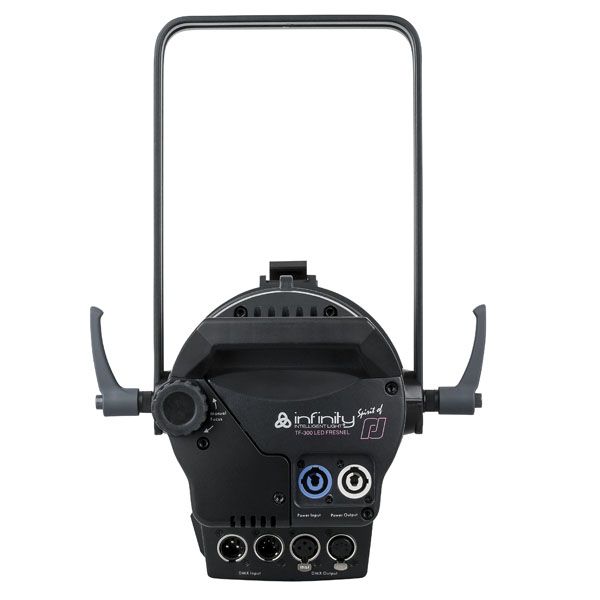

  • Neutrik Powercon in and through connectors
  • Neutrik 3&5p DMX in and through connectors
LED Engine
Source 300W Lumiled White LED engine using custom designed array.
Optical Information
Output 5000lm
CRI Consistently >96%
Colour Temperature 3200K
Beam Angles 15°-35°
Zoom Manual and motorized
Electrical Specifications
Voltage 100 -240 volts AC.
Frequency 50/60 Hz
Power Factor 0,97
Consumption 300W max
Environmental Specifications
Ambient Temp 0°C ~40°C (operating) / -10°C ~45°C (startup)
IP Rating IP 20 indoor use only
Conformity CE Mark
Control Specifications
Control Onboard Menu, RDM, DMX512
DMX Channels Dimmer Mode, 1Ch
  Basic Mode, 3Ch
  Pro mode, 5Ch
Mechanical Specifications
Construction Machined Aluminum, sheet metal, molded engineering grade plastics.
Colour Black
Weight 8,2Kg
