Infinity TF-260C7 Fresnel 7 Colour 15-50°
All Prices Shown are Excluding GST.

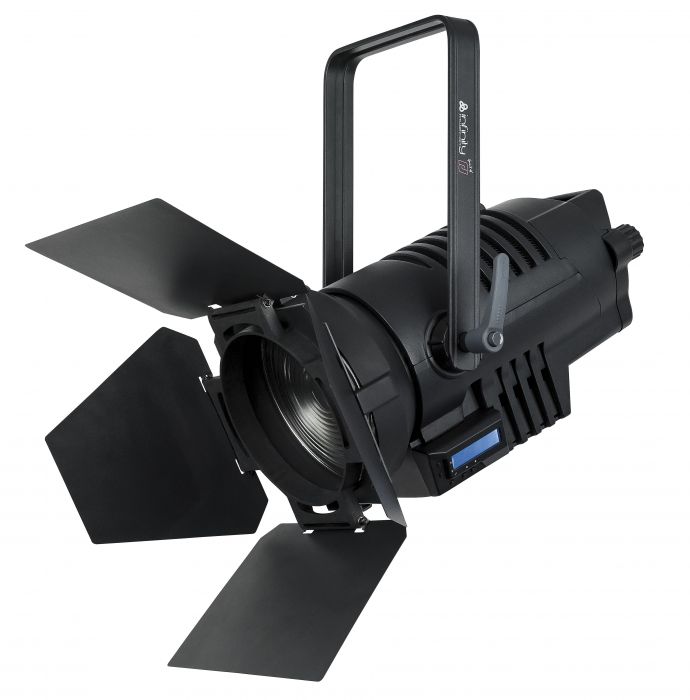

Infinity TF-260C7 Fresnel
The new standard for Theatre illumination, the Infinity Signature series. The tools you have always wanted to create beautiful, energy efficient lighting for your theatre, church, studio or school. These luminaires utilise the latest LED technology with European software while having operational and lens options familiar to any entertainment technician. To create this new range of theatre lights, we have found an excellent partner in Robert Juliat
The Infinity Signature TF-260C7 fixture is perfectly equipped for theatre and film applications. Seamlessly choosing the right colour temperature, adding the perfectly calibrated colour out of the virtual scroller, cancelling out rolling shutter and built-in Tungsten simulations. All these features combined turn the TF-260C7 into the only fixture for any TV-application. Lighting larger areas in a specified colour is no issue for the TF-260C7 Fresnel. With RGB, CMY or HSI control the desired colour is at your fingertips without worrying about the best possible mix from the 7 colours source, intelligence is inside. The zoom focus mechanism is easy and intuitive, both manually and motorized by dmx applicable between 15° to 50°.
- Delivers the performance of a 1kW Tungsten Halogen unit
- 260W Lumiled 7 colour LED engine using custom designed array
- CRI > 96 Consistently on full CCT range
- LED Colour Linearity Compensation
- LED Colour Temperature Drift Compensation (on all LEDs)
- Optics Colour Shift compensation
- Manual and motorized 15°-50° zoom control
- Colour wheel with 64 spectrum matching Filter gels
- 2000 €“ 8000K Seamless CCT channel
- RGB, CMY and HSI Colour control
- 16 bit Intelligent high resolution virtual dimming
- Tungsten mode with natural colour drift & timing simulations
- Flicker-Free with selectable PWM by DMX
- Custom design silent cooling system
- 1CH DMX mode for conventional replacement
LED Engine | |
Source | 260W Lumiled 7 colour LED engine using custom designed array. |
Optical Information | |
Output | 3500lm |
Light quality | >96 CRI Consistently |
Colour Temperature | 2000K ~ 8000K |
Beam Angles | 15°-50° |
Zoom | Manual and motorized |
Electrical Specifications | |
Voltage | 100 -240 volts AC. |
Frequency | 50/60 Hz |
Power Factor | 0,97 |
Consumption | 280W max |
Environmental Specifications | |
Ambient Temp | 0°C ~40°C (operating) / -10°C ~45°C (start-up) |
IP Rating | IP 20 indoor use only |
Conformity | CE Mark |
Control Specifications | |
Control | On board Menu, RDM, DMX512 |
Fan mode | Silent, Auto, Full |
DMX Channels | Dimmer Mode, 1Ch |
Basic Mode, 6Ch | |
Tungsten mode, 7Ch | |
HSI Pro Mode, 11Ch | |
RGB Pro Mode, 11Ch | |
CMY Pro Mode, 11Ch | |
RAW Mode, 21Ch | |
Mechanical Specifications | |

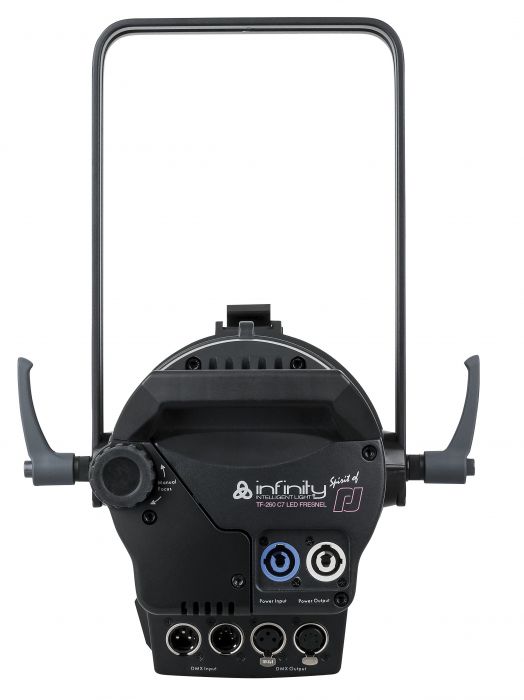

Power connections | Neutrik powerCON in- and through |
Data connections | Neutrik 3&5p DMX in- and through |
Pole operated | Available as option |
Construction | Machined Aluminium, sheet metal, moulded engineering grade plastics. |
Colour | Black |
Weight | 8.3Kg |
