Highlite

Infinity iW-741 RDM

  • Sale
  • Regular price $3,270.00


All Prices Shown are Excluding GST.

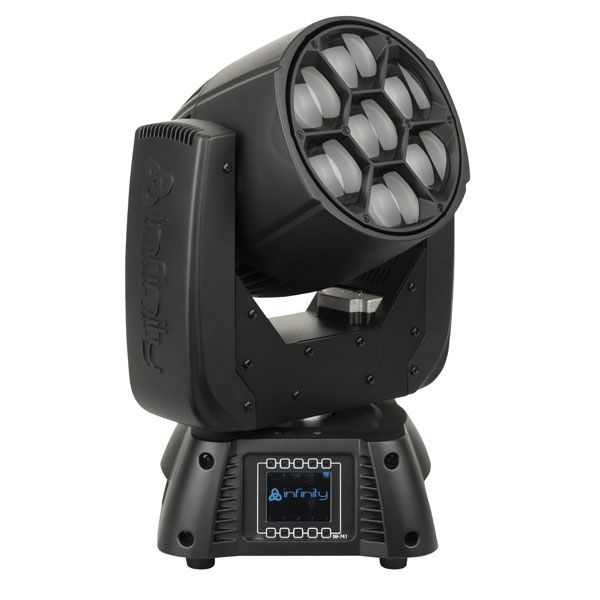

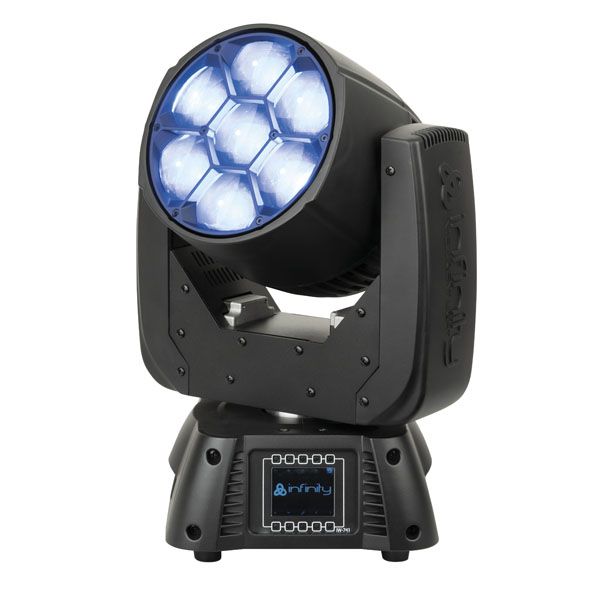

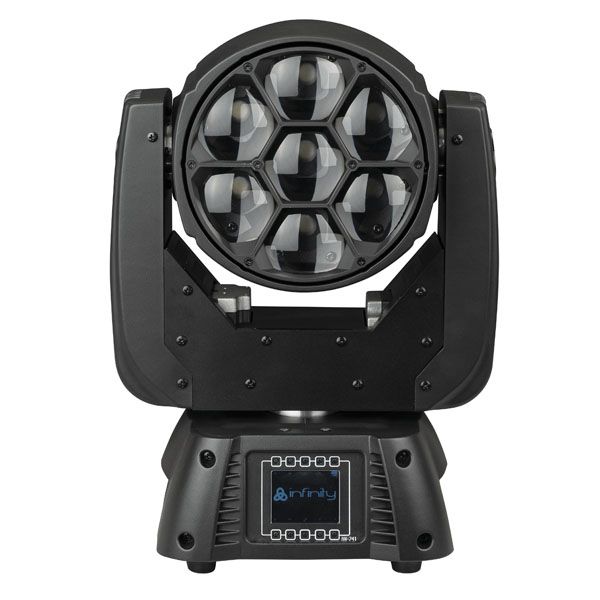

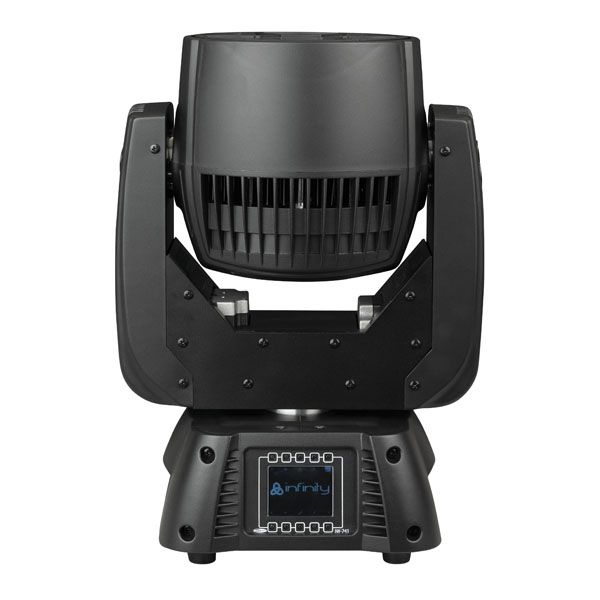

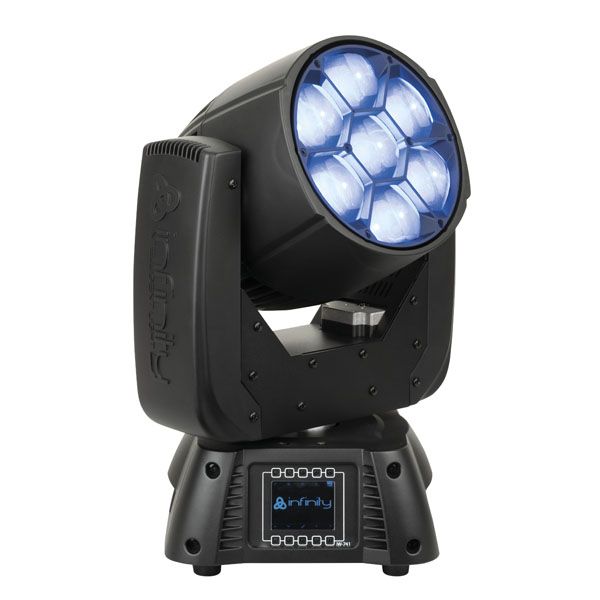

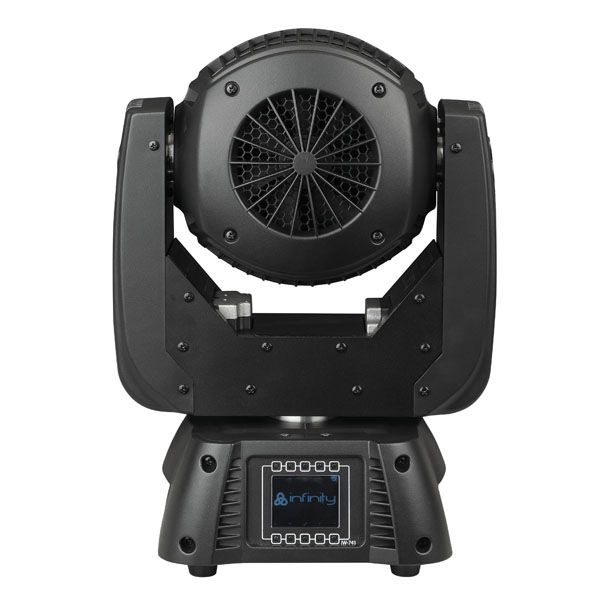

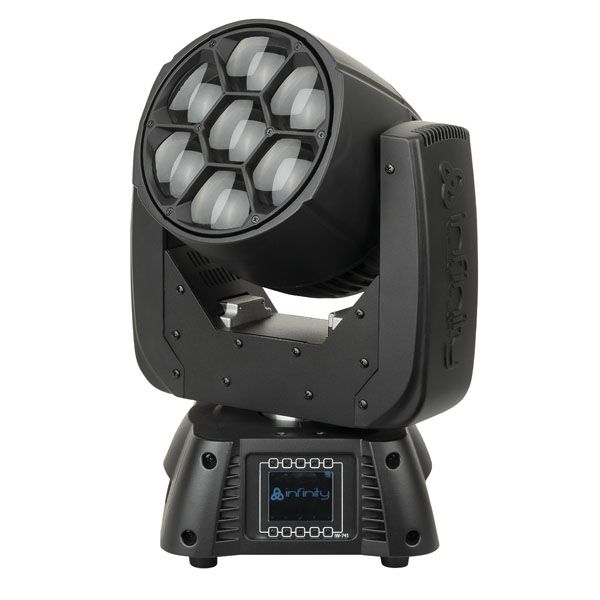

Infinity iW-741 RDM

The Infinity iW-741 is a compact power-pack which is equipped with 7 RGBW 40W Osram LEDs. Especially selected motors provide ultrafast and precise movements. In combination with motorized zoom a razor sharp 3,6° beam can be produced which changes into a 60° wash effect through various available controlling protocols. The seven O-Star LEDs produce very bright and saturated colours and by changing the PWM through DMX the iW-741 is very well suited for theatre or television applications.

  • Ultrafast movements
  • Zoom 3,6° to 60°
  • Selectable PWM rate by DMX
  • Battery powered display
  • White Output Mode
  • RDM
  • 3P DMX
Output
Lumen 41888 Lux @ 3m
Beam angle 3,6° to 60°
Light source 7x 40W RGBW (Osram)
Electrical
Input voltage 100-240VAC 50/60Hz (auto ranging)
Power consumption 295W
Control

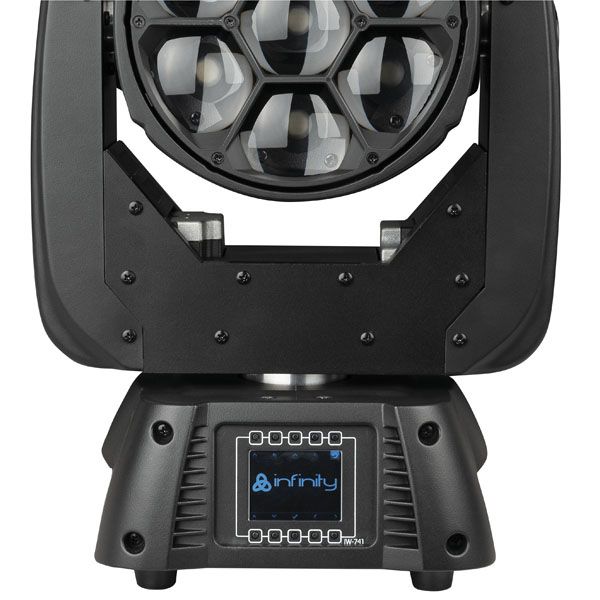

On board Battery powered full colour display including gravity sensor
Mode DMX, Auto, Master/Slave
Control Protocol DMX, RDM
Control Personality 15, 20
Wireless DMX optional available
Optical system
Dimmer 0-100%, 16 bit
Dimmer curves Linear, Square, I-Square, S-Curve
Dimmer speed Smooth, Fast
Color balance Separate RGBW adjustment
Color mode RGBW/CMY
Strobe 0-20Hz
Zoom 3,6° – 60°, motorized
Movement
Pan 540°
Tilt 230°
Pan/Tilt resolution 16 bit
Special Pan/Tilt change black out, User Selectable Pan & Tilt ranges,
  540/450/360/180°, Reverse Pan / Tilt movement, Fan control (auto, full, silent)
Physical
Colour Black
Housing Metal & Fire retardant plastic

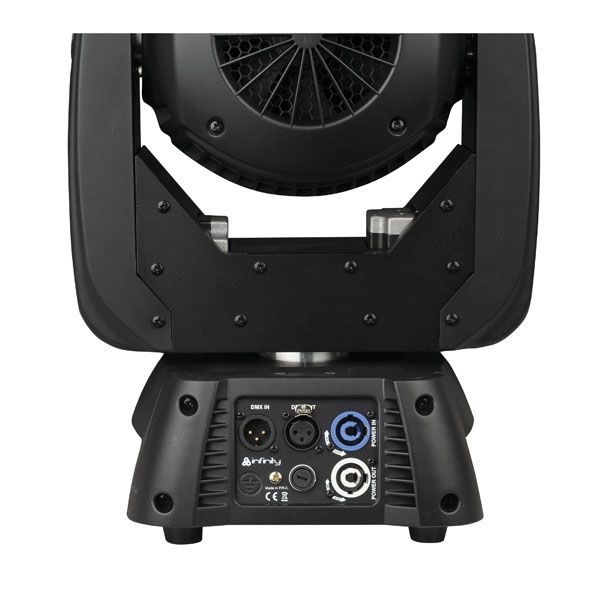

Fixture connection XLR 3P, Powercon in/out
Dimensions 205 x 295 x 395mm
Weight 9,36kg
Certification and safety
Certification CE
Max. ambient temp 45°
