Infinity iW-1240 RDM

Original price $5,650.00 ex. GST - Original price $5,650.00 ex. GST
Original price
$5,650.00 ex. GST
$5,650.00 ex. GST - $5,650.00 ex. GST
Current price $5,650.00 ex. GST
SKU 41527

All Prices Shown are Excluding GST.

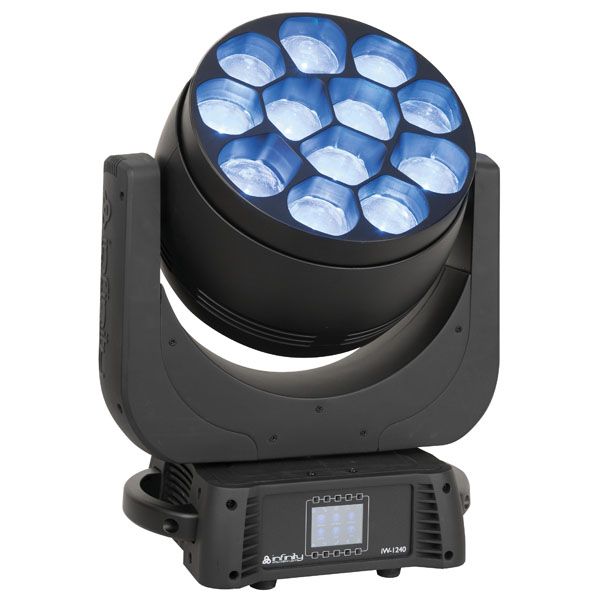

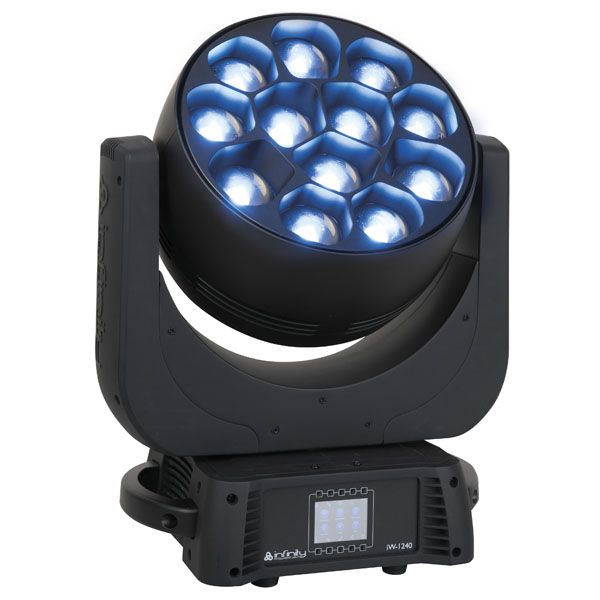

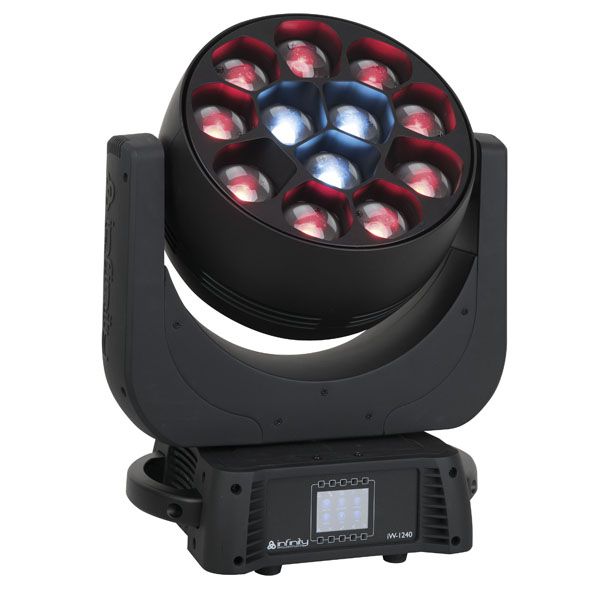

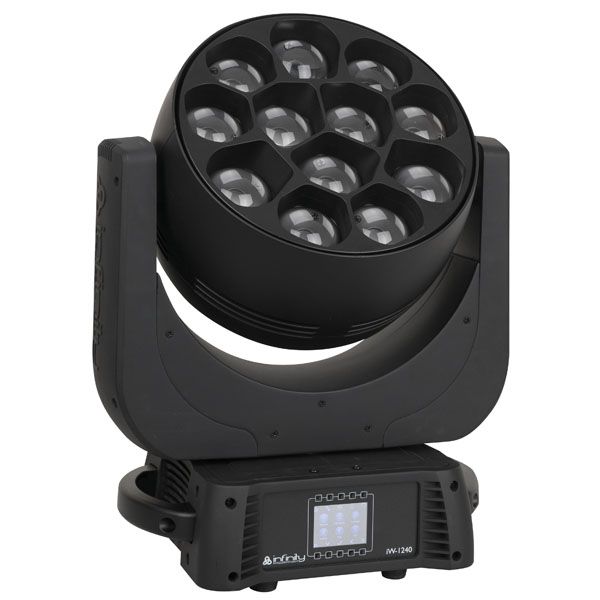

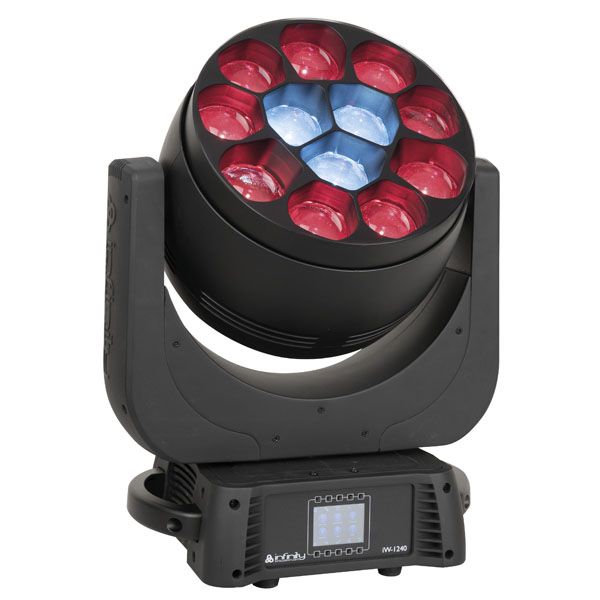

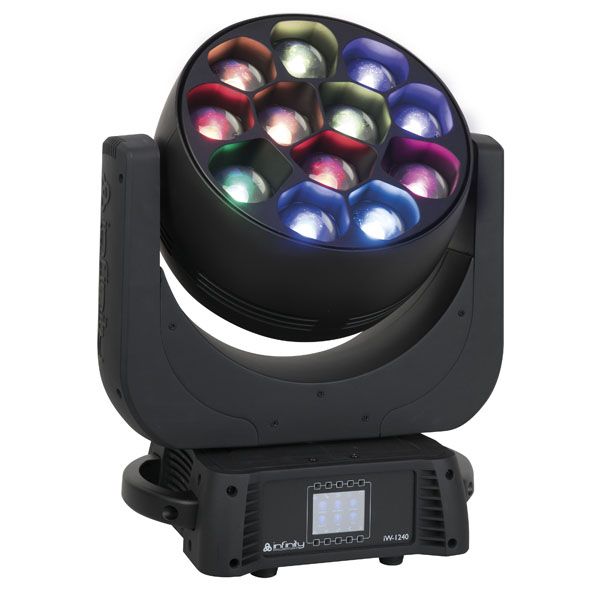

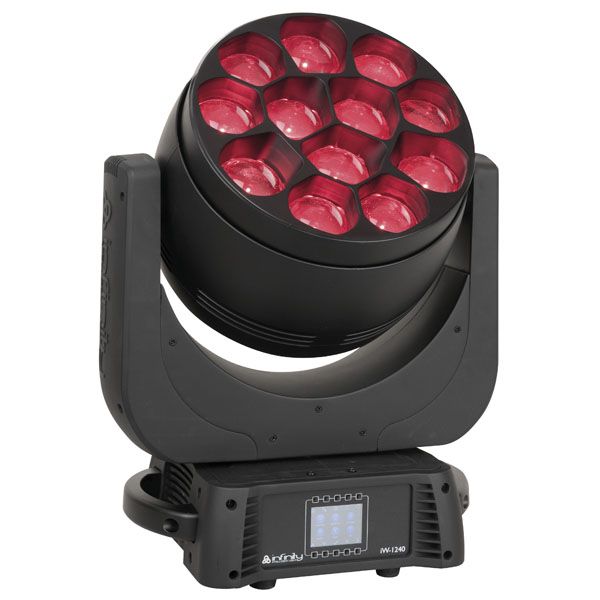

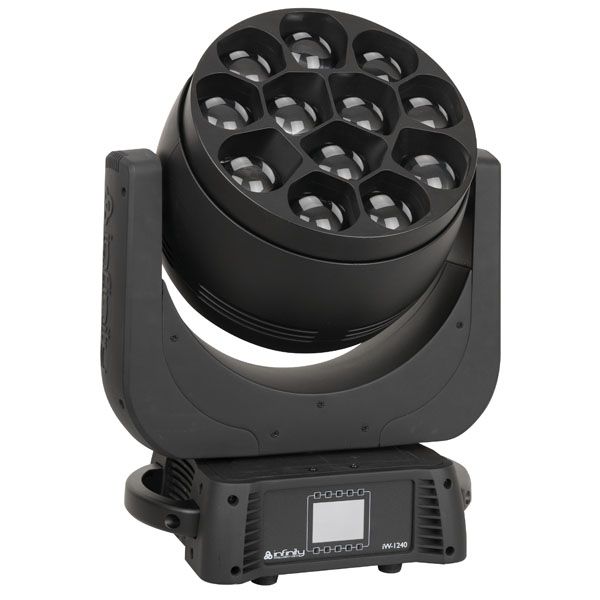

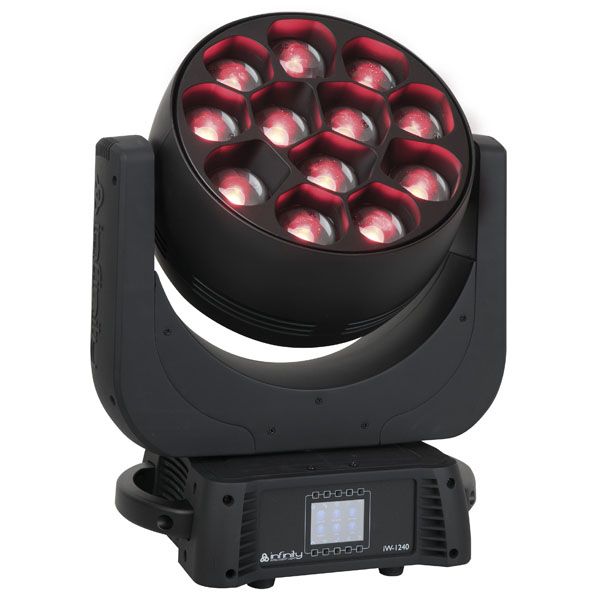

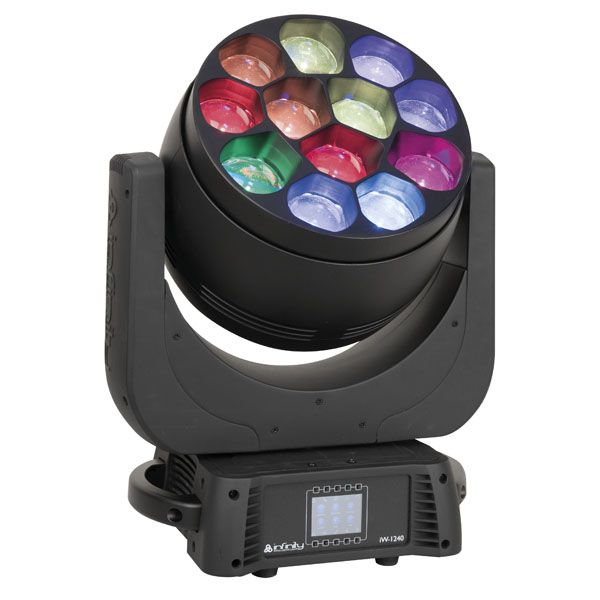

Infinity iW-1240 RDM

The Infinity® iW-340, iW-740 and iW-1240 wash lights are a great addition to the Infinity® series. With a zoom range of 4.5° - 36° these fixtures can be used as wash light and as powerful LED beam. Control the individual pixels by DMX / Artnet or select Macro patterns to transform it into an effect light. The use of the LED background can create an extra dimension. The special optics design and intelligent color- mixing system with separate CTO channel system make you create the most extensive views on stage.

The iW-1240 RDM is the top-range fixture in this series and a real beast as far as its output is concerned. A great addition to the lighting needs of any mid-sized or large venue or stage. Just as its smaller sibblings in this series, it is equipped 12 Osram 40W O-Star RGBW LEDs, which guarantee for bright and beautiful colours.

Individual pixels are controlled via DMX / Artnet or just select macro patterns to transform it into an exciting effect light. Built-in background LEDs add an additional layer to the already very extensive creative possibilities.
The specially designed optics and the intelligent colour mixing system, with a separate CTO channel system, will allow you to create spectacular light effects.
  • RDM
  • Selectable PWM rate by DMX
  • Electronic 4.5° - 36° Zoom
  • Pixel control by DMX / Artnet
  • Battery powered touch display
  • Speed and fade control for patterns

Specifications

  • Output Lux @ 3m - 55555
  • Beam Angle - 4.5° - 36°
  • Light Source - 12 x 40W RGBW (Osram Ostar)
  • Electrical Input voltage - 100~240VAC, 50/60Hz (auto ranging)
  • Power consumption - 460W
  • Control - On Board Battery powered full colour display including gravity sensor
  • Mode - DMX, Auto, Master/Slave
  • Control protocol - DMX-512, Artnet, RDM
  • Control personality - 21 / 28 / 63 channels
  • Wireless DMX optional available
  • Optical system Dimmer - 0-100% 16 bit
  • Dimmer curves - Linear, Square, I-Square, S curve
  • Dimmer speed - Smooth, Fast
  • Colour balance - Separate RGBW adjustment
  • Colour mode - RGB / CMY
  • Strobe - 0-20Hz
  • Zoom - 4.5° - 36°, motorized
  • Movement - Pan 540° Tilt 270°
  • Pan/Tilt resolution - 16 bit
  • Special - Pan/Tilt change black out, User selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement.
  • Physical Colour - Black
  • Housing - Metal & Flame retardant plastic
  • Fixture connections - XLR 3&5p & RJ-45 Data in/out, PowerCON TRUE1 in/out
  • Dimensions (WxDxH) - 388 x 274 x 493mm
  • Weight - 12.5Kg
  • Certification and Safety Certification - CE
  • Max. ambient temp - 45°
