Infinity iFX-640

Original price $3,795.00 ex. GST - Original price $3,795.00 ex. GST
Original price
$3,795.00 ex. GST
$3,795.00 ex. GST - $3,795.00 ex. GST
Current price $3,795.00 ex. GST
SKU 41552

All Prices Shown are Excluding GST.

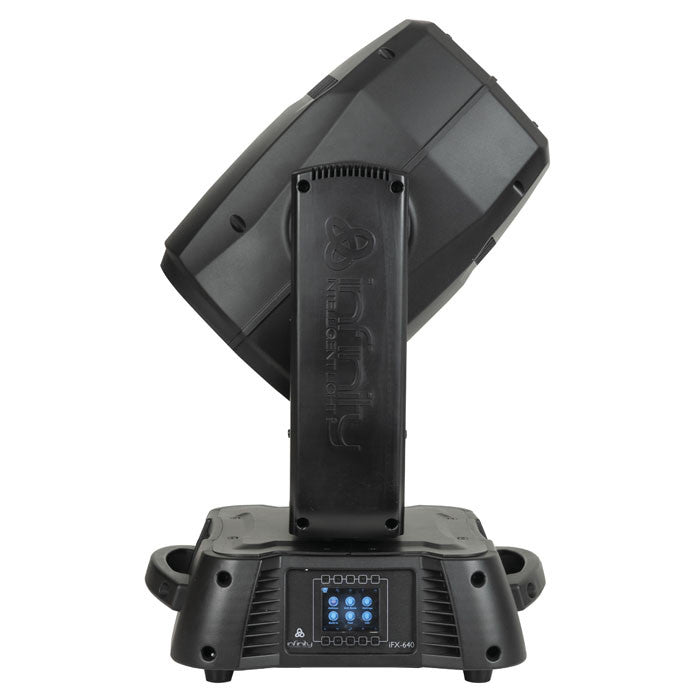

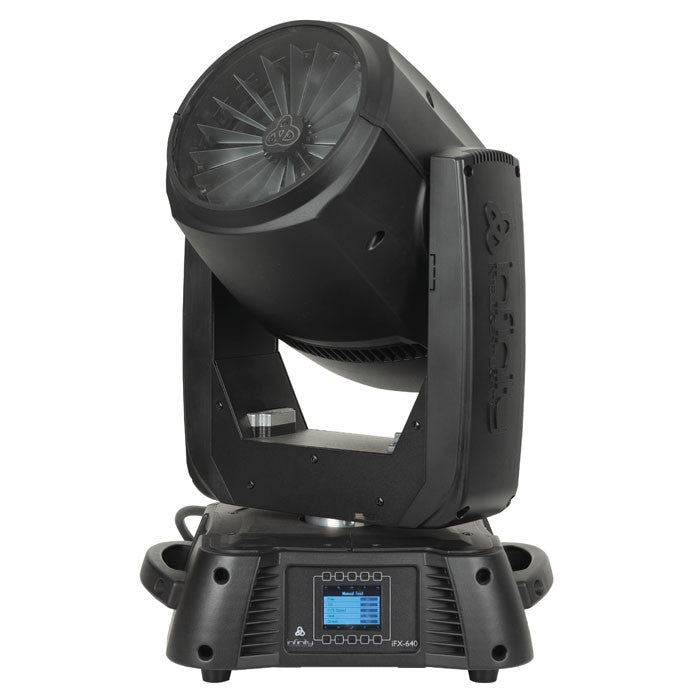

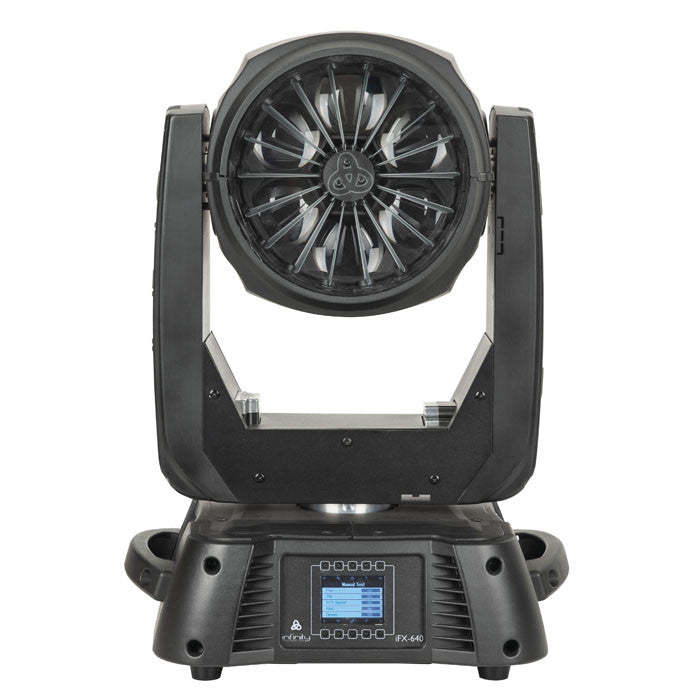

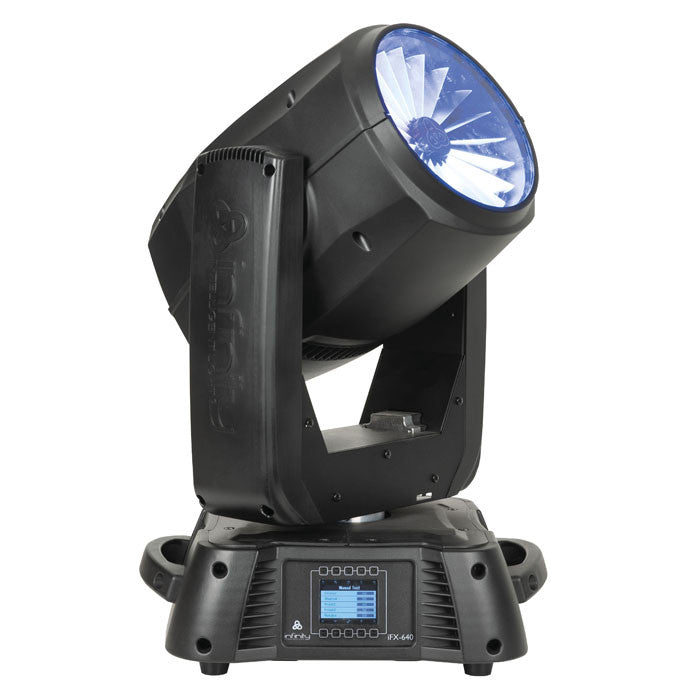

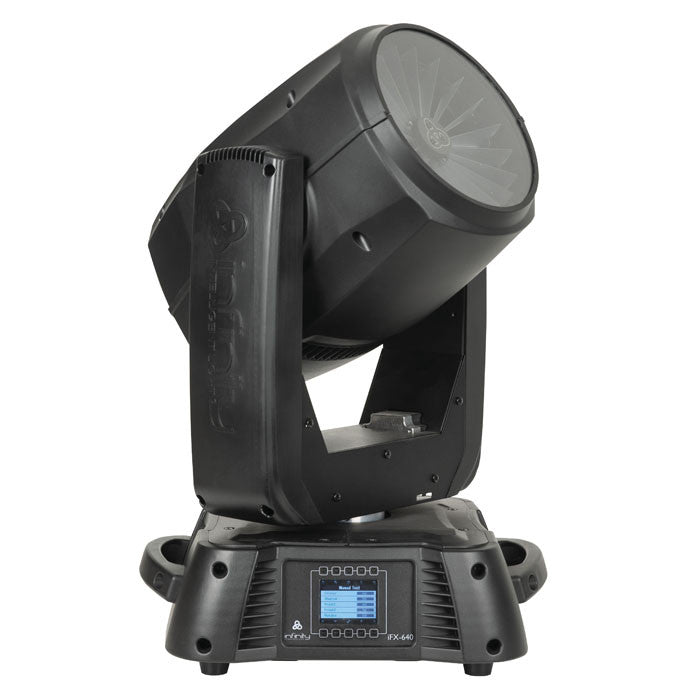

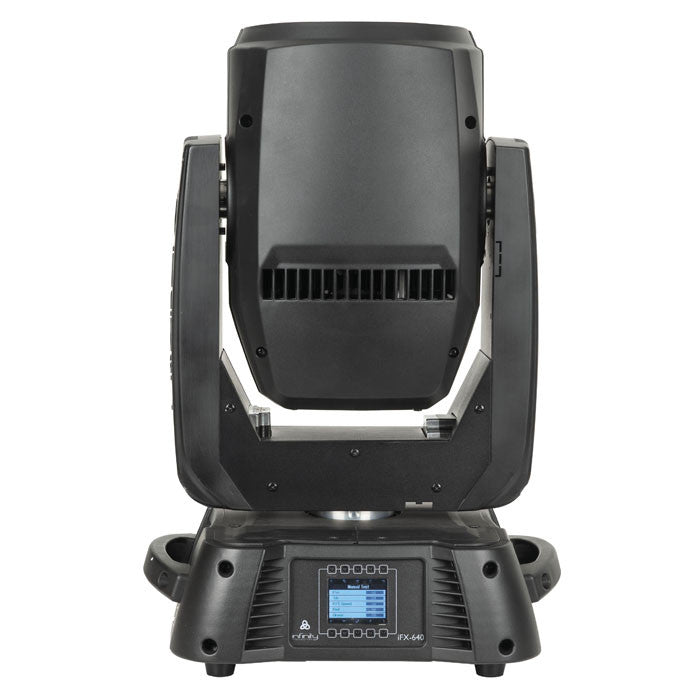

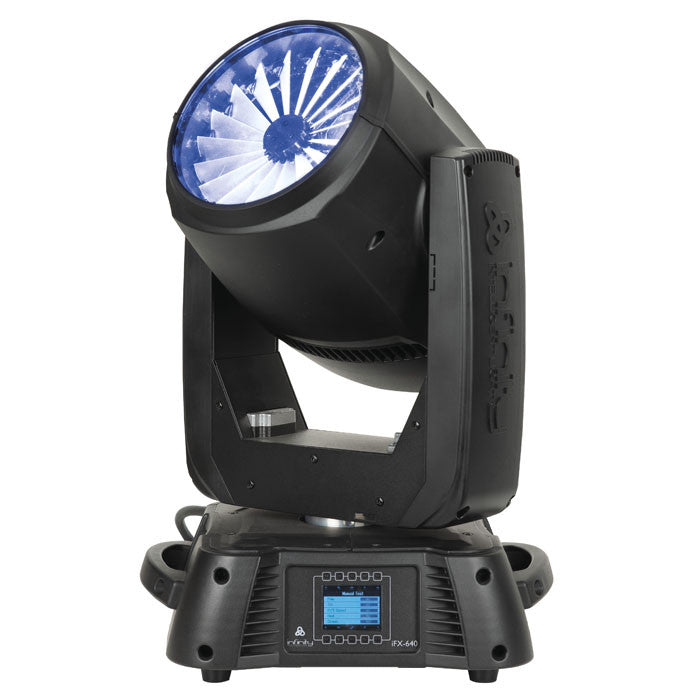

Infinity iFX-640

  • 6x O-star RGBW LED Moving Head
  • Continuously bi-rotating front lens
  • Beam diffraction blades
  • Individual Pixel Control (6 sections)
  • Flower effect

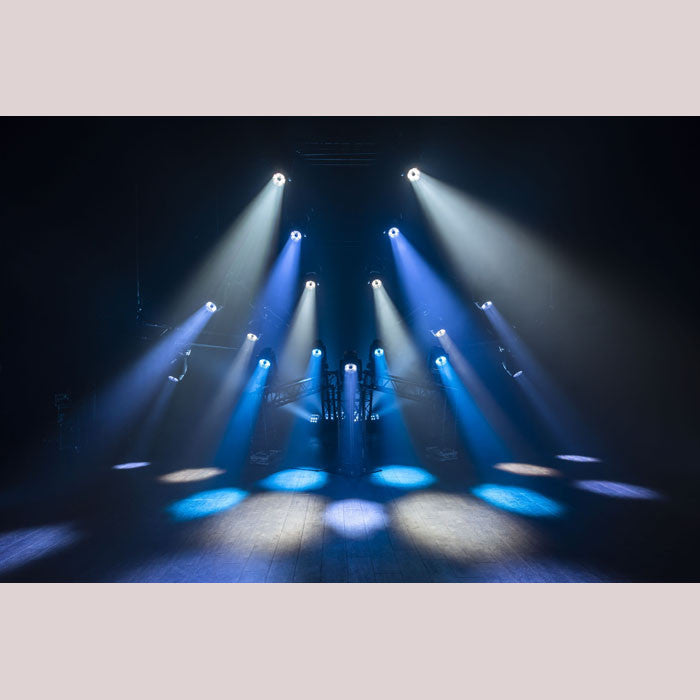

The Infinity iFX-640 is a 6x 40 watt RGBW effect Moving Head with Individual Pixel Control. This creative eye-candy lighting fixture is perfectly fit to create stunning effects with its 4 dimmer curves, continuously bi-rotating front lens, circular prism (flower effect) and strobe function.

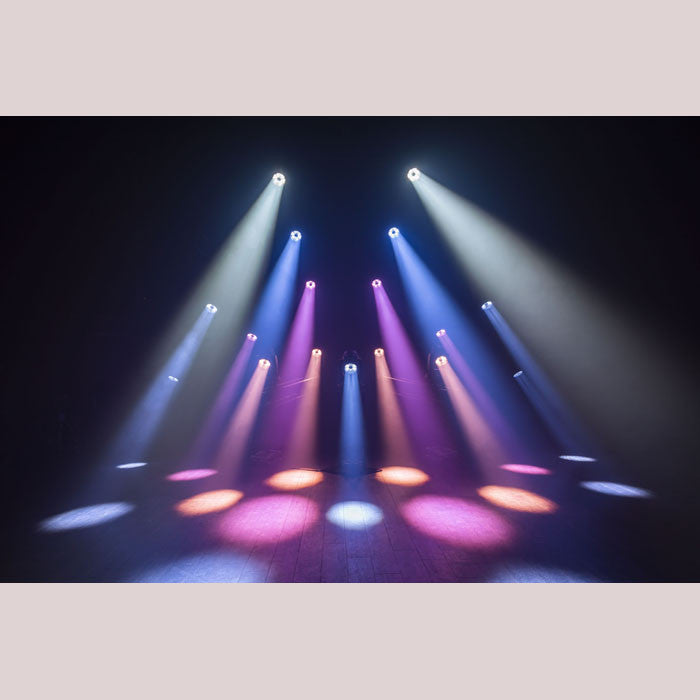

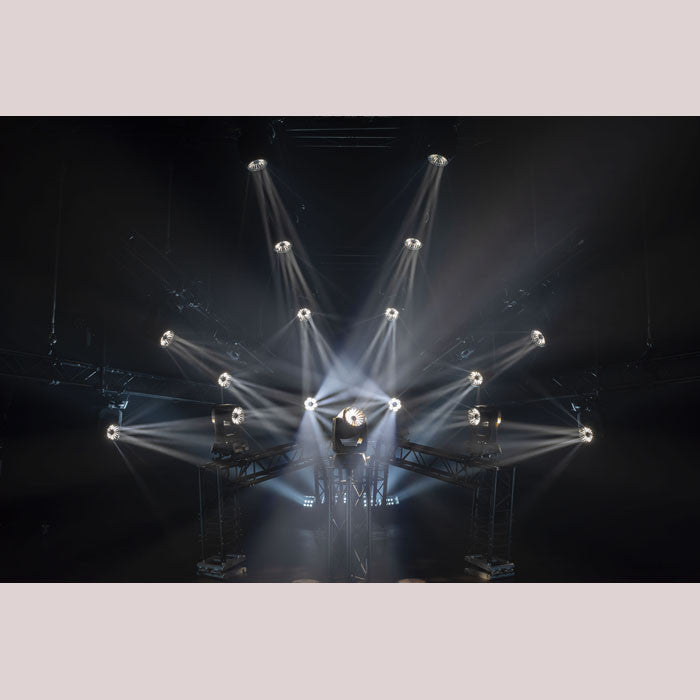

With the iFX-640 you can create nice colours, from punchy saturates to smooth pastels and whites. It's also possible to seamlessly transition from a narrow 5° beam to a wide 36° wash due to its motorised zoom. Finally, you can control the diffraction blades steplessly. This allows you to create a wash effect with a soft edge that is precisely tailored to your scene. Controlling this fixture can be done manually and via DMX in either Manual and Auto-Run mode.

Source

Light Source Type LED
Light Source Quantity 6
Light Source Power 40 W
LED Colour Type RGBW
Life Expectancy 20000 h
Refresh Rate (min) 600 Hz
Refresh Rate (max) 15 kHz
Lumen Total 1800 lm
CRI 80

Optical

Beam Angle Circular (min) 5 °
Beam Angle Circular (max) 36 °
Zoom Type Motorised
Zoom Ratio 1:7
Frost Yes

Control and Programming

Control Mode Auto, DMX, Manual
DMX Channels 24

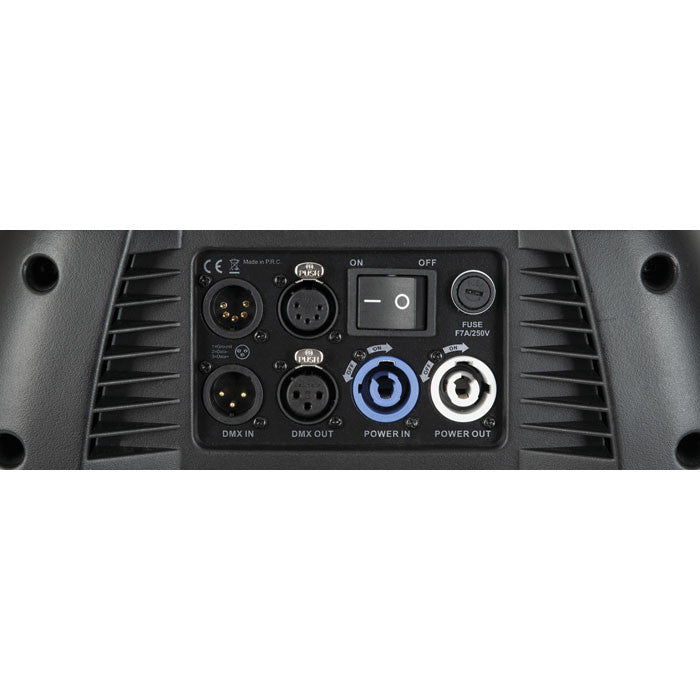

Protocols DMX, RDM
Wireless Optional

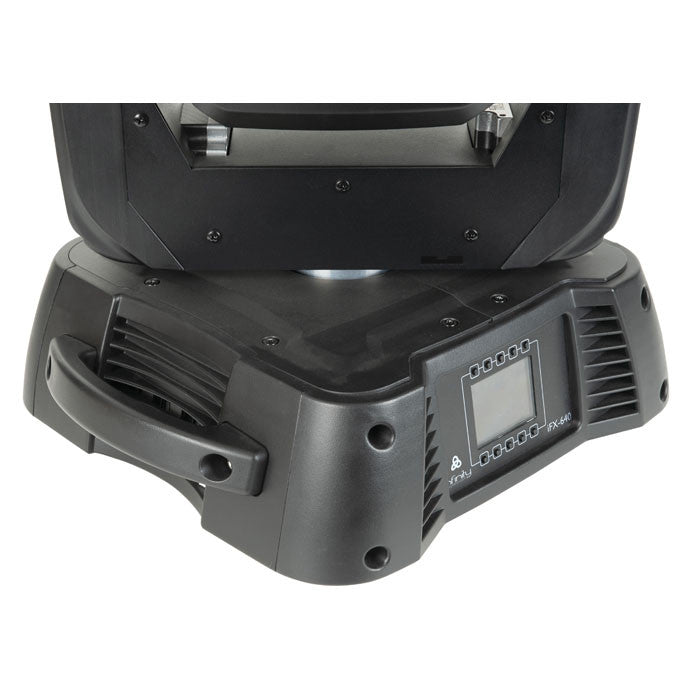

Display Battery, Gravity Sensor, LCD
Fanmode Yes
Dim Curve Linear, Square, I-Square, S-Curve
Zone Control (sections) 6 sections
Dimmer Resolution 16 bit
Zoom Resolution 8 bit
Frost Resolution 8 bit

Dynamic Effects

Dimmer 0-100 %
Strobe 0-20 Hz
Prism 1 Circular

Movement

Pan 540 °
Tilt 270 °
Pan/Tilt Resolution 16-bit
Continuous Movement Rotating Optics

Mechanical Specifications

Length (mm) 304 mm
Width (mm) 364 mm
Height (mm) 540 mm
Weight 14.2 kg
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
