Infinity Banana Wing 2 Universe Expansion Wing

  • Sale
  • Regular price $2,650.00


All Prices Shown are Excluding GST.

Infinity Banana Wing 2 Universe Expansion Wing

Chimp G2, the Next Stage: the Infinity Chimp G2 light controllers combine user-friendly design with true functionality: the Chimp 100.G2 with 2 DMX universes or the 300.G2 with 4 DMX universes and integrated 22” touchscreen. Both have the same principle: to provide the necessary tools for every light-designer and have the freedom to create the show they want. Every feature, effect and application has been engineered specifically to support this very principle. Although the Chimp 300.G2 has extended universe, fixture and memory capacity, it remains compatible with the Chimp 100.G2. Software, features, effects and possibilities are exactly the same. Programmed and saved shows on either Chimp unit are interchangeable and will run smoothly accordingly. This feature alone adds a new dimension to the compatibility of the various Chimp units.

To name a few of the versatile features each Chimp possesses: every Chimp unit is equipped with the extensive AtlaBase fixture library, giving access to more than 16.000 different fixtures. With every free Chimp software upgrade the AtlaBase library is updated automatically. The Effects Engine can be applied to any available fixture-attribute easily. This helps you to shape the show according to your creativity. You can use Magic Sheets with which you can visualize your entire setup in 2D. Always get the right colour with an accurate colour picker, RGB / CMY Control or from the built-in Lee, Rosco and Apollo filter libraries.

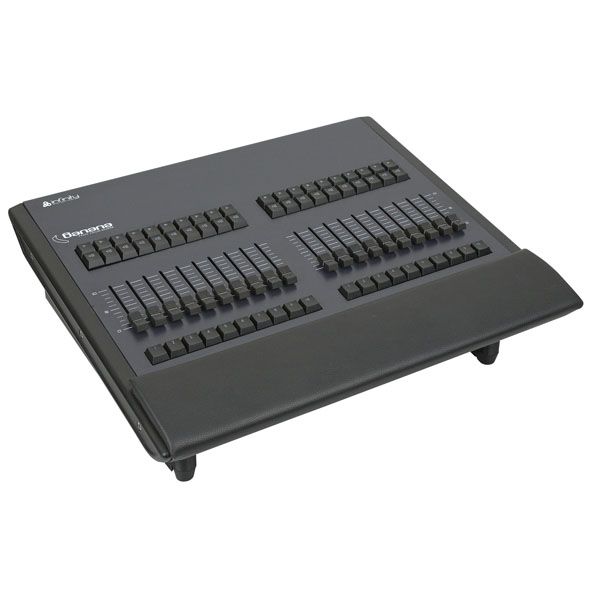

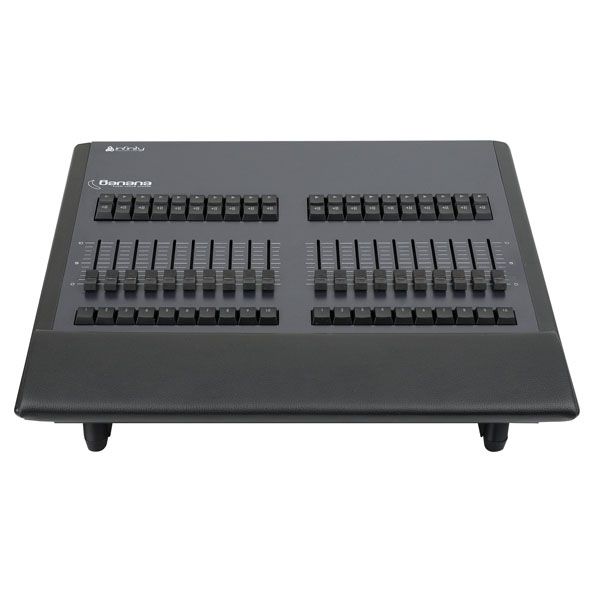

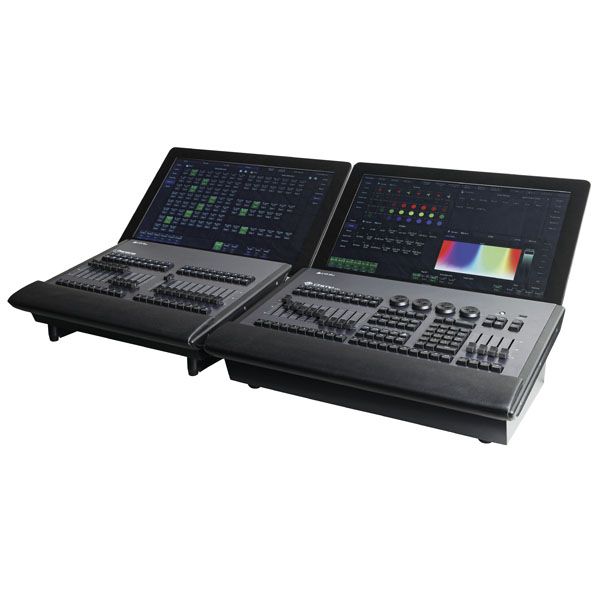

The Banana Wing is the ideal tool for extending the possibilities and flexibility of the Infinity Chimp consoles. The Banana Wing offers operators 20 extra playback faders and will release 2 extra universes on top of your Chimp’s capabilities. The console will recognize the presence of the Wing and reconfigure the second external monitor to show additional playbacks for the operator. The Banana Wing will also enable 2 universes of DMX and Artnet when connected to your Chimp OnPC software.

.rTable { display: table; width: 100%;} .rTableRow { display: table-row; } .rTableHeading { background-color: #ddd; display: table-header-group; } .rTableCell, .rTableHead { display: table-cell; padding: 3px 10px; border: 1px solid #999999; } .rTableHeading { display: table-header-group; background-color: #ddd; font-weight: bold; } .rTableFoot { display: table-footer-group; font-weight: bold; background-color: #ddd; } .rTableBody { display: table-row-group; }
Physical

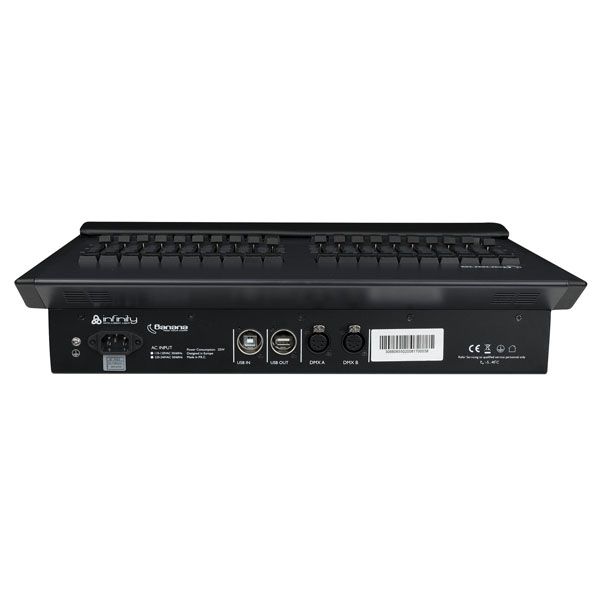

Connections 2 x DMX 5-pin opto-isolated in/outs (RDM ready)
  1x USB-B connector
  1x USB-A connector
  IEC Power Supply Input
Housing Metal & flame-retardant plastic side covers
Dimensions 400 x 490 x 160mm (LxWxH)
Input voltage 100~240VAC, 50/60Hz (auto ranging)
Power consumption 25W
Weight 4Kg
Ambient Temp. Range -0 ~ 40°C
