HL Artecta Play-III DMX Din Rail De

Original price $120.00 ex. GST - Original price $120.00 ex. GST
Original price
$120.00 ex. GST
$120.00 ex. GST - $120.00 ex. GST
Current price $120.00 ex. GST
SKU A9915860

All Prices Shown are Excluding GST.

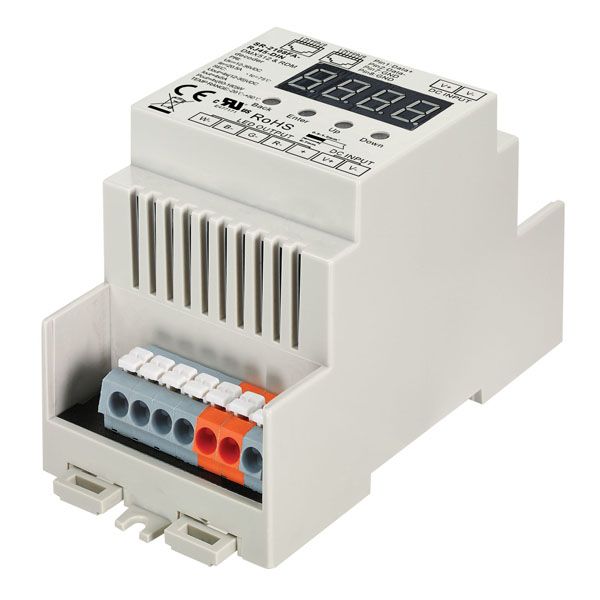

Artecta Play-III DMX Din Rail Decoder

Constant Voltage

The Play-III DMX is a din rail mounted constant voltage DMX&RDM LED controller which features full support to the latest DMX512, DMX512-A and RDM V1.0 protocols. The RDM controller is designed with 4 channels, 5A per channel constant voltage output.
The LED DMX controller is designed with easy wiring terminals without screws and RJ45 ports for data transmission.

  • RDM bi-directional communication function
  • Enable DMX512 master console to detect decoder information and set DMX address
  • Gamma ray curves value adjustable from 0.1-9,9, logarithmic dimming and linear dimming optional

Specifications:

Input voltage 12 €“ 36 VDC
Output current v4x5 A
Channels 1, 2, 3 or 4.
 Dimming DMX
Dimensions 106x53x65 mm
Operating temperature -20 - +50°C
IP rating IP20
