Gantom Precision Z Floodlight Cool

  • Sale
  • Regular price $135.65


All Prices Shown are Excluding GST.

The Precision Z Floodlight produces a soft point-source light equivalent to traditional 20W halogen fixtures in a highly energy and space efficient package. The fixture’s modular design allows it to be swapped with other fixtures without the hassle of cutting wires, allowing for fast design changes and reconfiguration. The industrial machined aluminum chassis gives the Precision Z an elegant form yet functions as a rugged shell and heat sink to protect the LED and core electronics even in outdoor applications. Internal driver circuitry ensures constant output over a wide range of input voltage and extends the fixture life beyond 50,000 hours.

FEATURES

  • Perfect for space constrained applications
  • 1W LED with 95% energy savings compared to 20W halogen lamp
  • Low voltage and minimal heat for improved safety over incandescent sources
  • Internal constant current driver gives highly efficient and consistent output
  • Dimmable using PWM power input from external constant voltage dimmer (10%-100%)
  • Easy installation and reconfiguration
  • Dual polarity input
  • Minimal maintenance required with over 50,000 hour lamp life
  • Storm Series version for permanent outdoor installations also available

Applications

  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Museums displays (wall mounted artwork and display cases)
  • Theater and stage accent lighting
  • Mobile displays
  • Retail spaces
  • Architectural accent lighting
  • Machinery

PRODUCT DETAILS

SKU PR25 Wavelength / Color Temperature 6500K CRI 70
SKU PR26 Wavelength / Color Temperature 3000K CRI 80 typical, 90+ available by spec

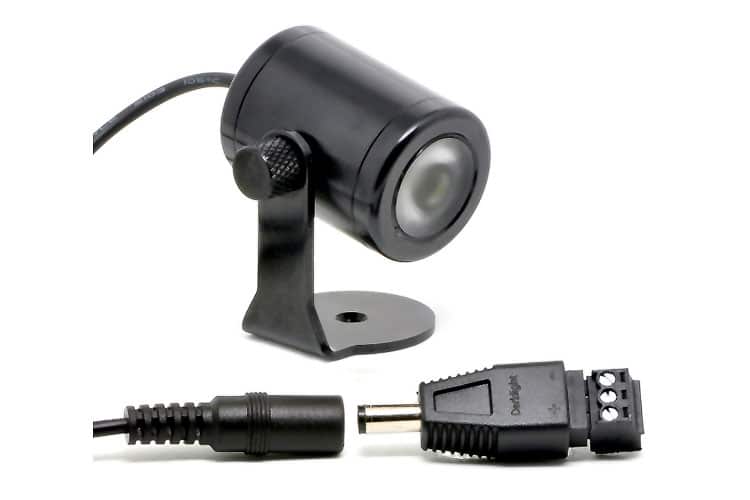

Max wattage: 1.5W Input voltage: 9-24VDC (12VDC nominal) Current draw: 125mA @ 12VDC Power supply: for use with class 2 transformer or battery Beam angle: 62 degrees Field angle: 84 degrees Ingress Protection: IP65 Material: Anodized aluminum LED: Edison S Certifications: UL and CE Power connector: 2.1mm DC jack with screw terminal adapter standard* Availability all colors stocked, usually ships within 1 business day

*Outdoor rated and specialty connectors available. Please inquire.

Distance Center Beam
Beam Width 1.0m (3.3ft) 66lx (6.1fc) 1.2m (3.9ft) 2.0m (6.6ft) 15lx (1.4fc) 2.4m (7.9ft) 3.0m (9.8ft) 5lx (0.5fc) 3.6m (11.8ft)
Distance Center Beam
Beam Width 1.0m (3.3ft) 35lx (3.3fc) 1.2m (3.9ft) 2.0m (6.6ft) 8lx (0.7fc) 2.4m (7.9ft) 3.0m (9.8ft) 2lx (0.2fc) 3.6m (11.8ft)
