Gantom Precision DMX Micro RGB

by Gantom
SKU PR41
Original price $0.00 ex. GST - Original price $0.00 ex. GST
Original price $0.00 ex. GST
$250.43 ex. GST
$250.43 ex. GST - $250.43 ex. GST
Current price $250.43 ex. GST

All Prices Shown are Excluding GST.

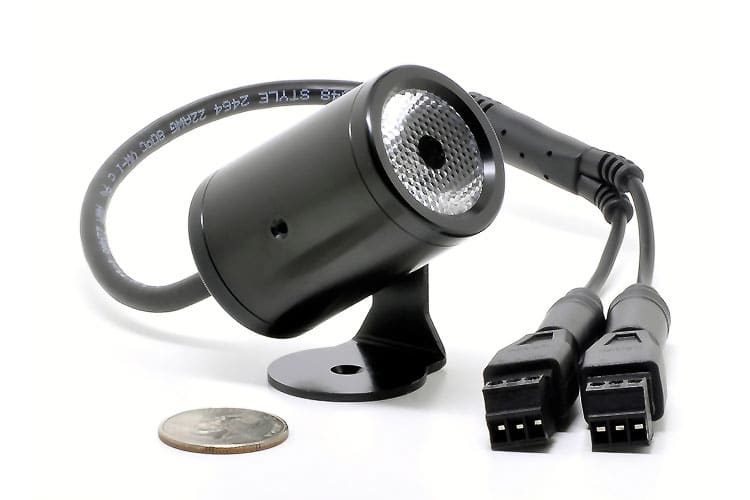

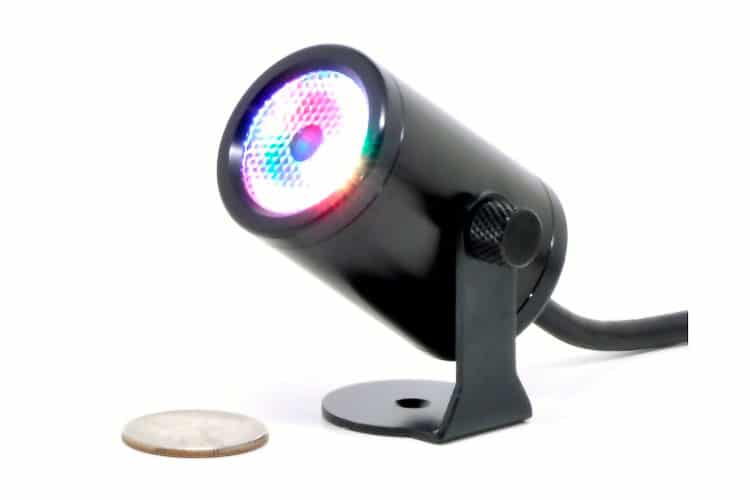

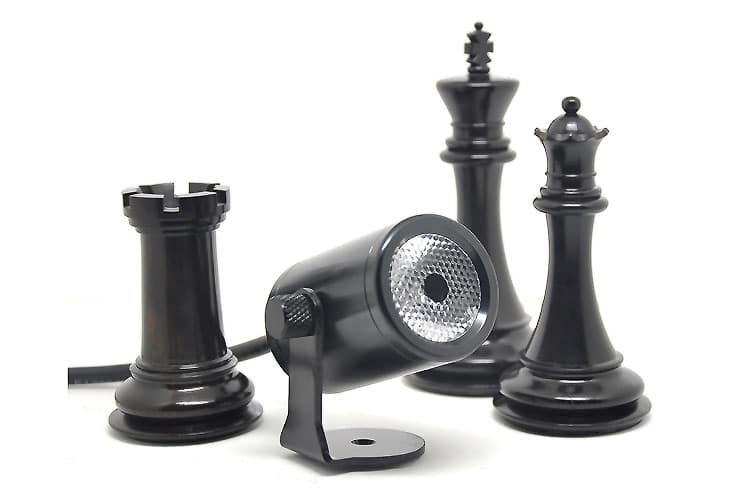

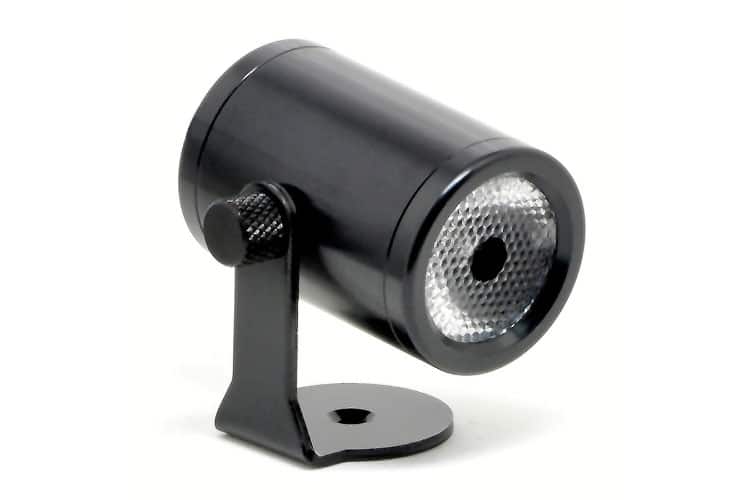

The Precision DMX is the world€™s smallest DMX controllable theatrical floodlight. This RGB fixture is smaller than a fist yet packs comparable punch to traditional fixtures several times its size! No other fixture on the market comes close to the compactness of this fixture with all the internal circuitry and intelligence built in. The Precision DMX is a microprocessor based intelligent lighting fixture that can be controlled to generate a wide range of vivid colors. Tunable preset functions allow the user to generate various patterns without complex signaling. A built-in flicker generator can create unique and realistic flame, surge, and lightning effects with ease. Standalone operation is achievable when the fixture is configured with our free DMX Programmer iOS app, making the Precision DMX a fully color and effects tunable floodlight that can operate without signal. The user simply sets the desired look of the Precision DMX with the DMX Programmer iOS app and the output settings will be stored in the fixture€™s memory. Afterward, the Precision DMX may be unplugged from DMX signal and simply powered on; the fixture will output according to the stored settings. This is an excellent feature for applications that need a fully configurable light without DMX cabling.

FEATURES

  • Full color control via DMX512 or free DMX Programmer iOS app
  • 7 channel DMX control
  • Built-in functions: flicker, strobe, blink, fade, color change, master dimming, color macro
  • Standalone mode allows set and forget operation without DMX signal (requires free DMX Programmer iOS app)
  • DMX address and configuration stored in memory
  • Low voltage and minimal heat for improved safety over incandescent sources
  • Internal constant current driver gives highly efficient and consistent output
  • Minimal maintenance required with over 50,000 hour lamp life

APPLICATIONS

  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Theater and stage accent lighting
  • Mobile displays
  • Floral centerpieces
  • Retail spaces
  • Architectural accent lighting
  • General purpose accent lighting
  • Props and animatronics
  • Special effects lighting
  • Event lighting

PRODUCT DETAILS

SKU - PR41
DMX Channels - 7 Channels
Cable Options Power Connector €“ 2.1mm DC jack with screw terminal adapter for Power Signal Connector €“ 3.5mm (1/8") TRS jack with screw terminal adapter standard

Max Wattage 3.8W
Input Voltage 9-24VDC (12VDC nominal)
Current Draw < 320ma @ 12VDC
Power Supply for use with class 2 transformer or battery
Beam Angle 21 degrees
Beam Edge Soft
Ingress Protection IP65
Material anodized aluminum
LED Edison R Series
Certifications UL and CE

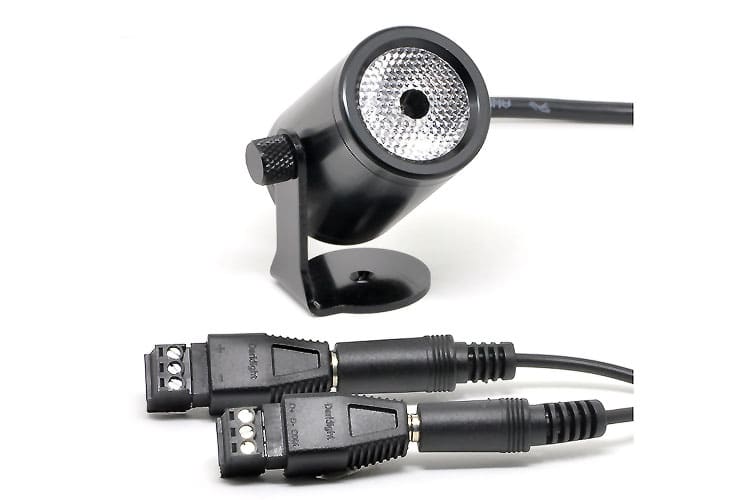

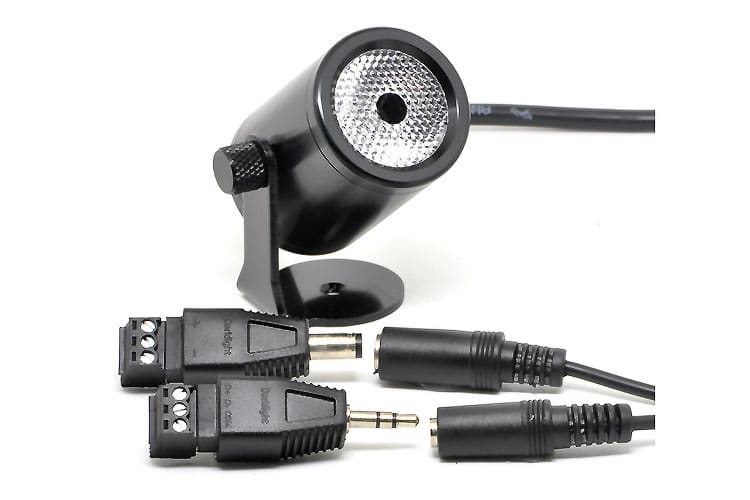

Connector: options Standard Connectors 2.1mm DC jack with screw terminal adapter for Power 3.5mm (1/8€³) TRS jack with screw terminal adapter for signal Gantom Pro Cable Connector waterproof locking connector which combines both power and DMX signal in a single cable

Channel Level Description
Ch 1 €“ Red 0-255 Sets red level
Ch 2 €“ Green 0-255 Sets green level
Ch 3 €“ Blue 0-255 Sets blue level
Ch 4 €“ Color Macro Select 32-255 Overrides Ch 1-3 with preset color
Ch 5 €“ Speed /0-255 If Ch 6 is 0, Ch 5 controls the strobe speed or speed of the selected built in function
Ch 6 €“ Built-In Functions 32-71 Fade in (at least one of Ch 1-3 must be non-zero) 72-111 Fade in (at least one of Ch 1-3 must be non-zero) 112-151 Pulsing (at least one of Ch 1-3 must be non-zero) 152-191 Smooth color fade 192-231 Red, Green, Blue color cycle 232-250 6 color cycle 251-255 Candle Flicker (color based on Ch 1-3 or Ch 4)
Ch 7 €“ Master Dimmer 0-255 Bright (0) to dim (255)
