Gantom DMX RGBW Micro

by Gantom
Original price $469.57 ex. GST - Original price $469.57 ex. GST
Original price
$469.57 ex. GST
$469.57 ex. GST - $469.57 ex. GST
Current price $469.57 ex. GST

All Prices Shown are Excluding GST.

Gantom DMX Spot

4W DMX Spotlight

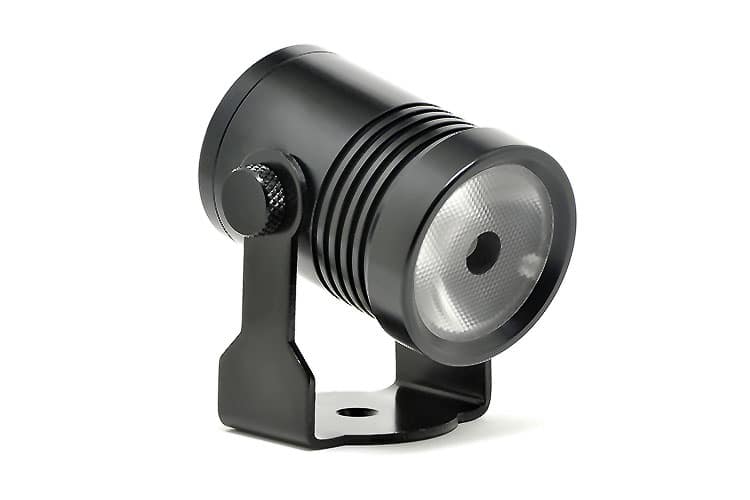

The Gantom DMX Spot is a 4W color controllable LED spotlight for professional applications. Featuring a non-linear dimming curve, the Gantom DMX Spot can be dimmed with high precision even at the lowest intensity levels. Homogeneous optics smoothly blend the colors of the internal quad chip LED producing a clean projected field without the €œhalos" seen in many other color mixing fixtures. High frequency hybrid modulation allows the Gantom DMX Spot to be used in video
applications with minimal on-camera flickering. The Gantom DMX Spot can even be battery powered for portable applications, perfect for event lighting where access to power and signal is inconvenient. The Gantom DMX Spot is configured using our DMX Programmer app, available free for Apple and Android devices.


  • Homogeneous narrow beam optics
  • Available in dynamic white and RGBW configurations
  • Also available in wide beam angle configuration (see Gantom DMX Flood)
  • Non-linear dimming curve for smooth fading without visible €œsteps" in output intensity
  • 14 bit dimming compressed into single 8 bit channel gives precision control without using extra channels
  • Minimized on-camera flicker
  • DMX address and colors configured via DMX Programmer app
  • Less than 5W at full output
  • Integrated DMX receiver
  • Integrated quad channel constant current driver for consistent output
  • Storm Series version for permanent outdoor installations also available


  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Theater and stage accent lighting
  • Mobile displays
  • Floral centerpieces
  • Retail spaces
  • Architectural accent lighting
  • General purpose accent lighting
  • Props and animatronics
  • Special effects lighting
  • Temporary event lighting


Max Wattage 4.8W
LED Wattage 4 x 1W
Input Voltage 9-24VDC (12VDC nominal)
Current Draw < 400mA @ 12VDC
Power Supply For use with class 2 regulated switching power supply
Beam Angle 19 degrees
Field Angle 38 degrees
Ingress Protection IP65
LED Cree XLamp MC-E
Certifications UL and CE
Connector Options
Standard Connectors 2.1mm DC jack with screw terminal adapter for Power
  3.5mm (1/8€³) TRS jack with screw terminal adapter
Gantom Pro Cable Connector waterproof locking connector which combines both power and DMX signal in a single cable
