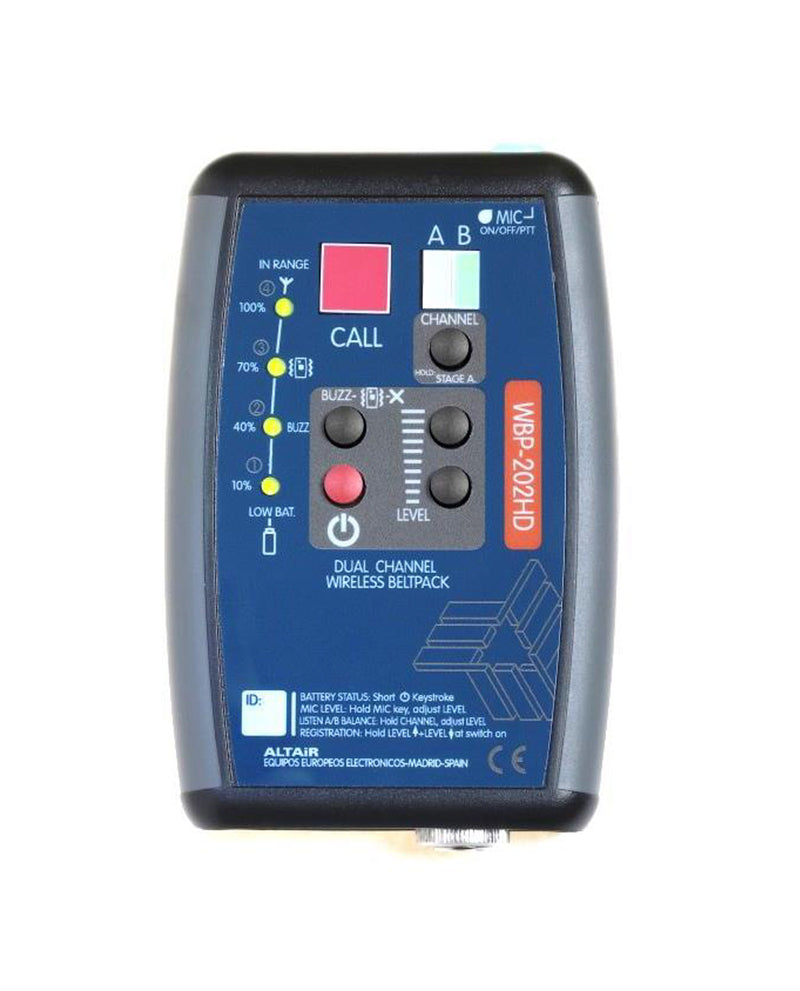

ALTAIR Wireless Intercom Dual Channel Beltpack WBP-202HD

WBP-202HD Compact Series� dual channel wireless beltpack is the brand new version of the WBP-202 (discontinued). Compact Series beltpacks offer an unmatching price-quality ratio, with a low-size design, impressive range and remarcable autonomy.

WBP-202HD allows simultaneous or independent communication with two separate intercom channels (selectable A, B or A&B). As in every ALTAIR wireless beltpack model, antennas are located inside the enclosure allowing a more comfortable belt fitting.

Please note that a maximum of two dual channel wireless beltpacks can be connected to one dual channel wireless base station (WBS-202HD or WBS-202). Furthermore, the two dual channel beltpacks must be connected to different RADIO links (one to RADIO 1 and one to RADIO 2).

Battery status can be easily checked using the front pannel led bargraph. The beltpack also features a low-consumption call receive� mode and general low power circuitry.

Out of range� indication helps the user be aware of the coverage area and prevent possible communication dropouts.

MAIN FEATURES

“ Range: Typical 50 to 350 m around base station.

“ Wideband Audio: 100Hz “ 7kHz when used along with any ALTAIR HD� base station.

“ MIC� Button: New MIC� button, more accessible, placed on the upper side of the beltpack.

“ Estimated Battery life: 10 hours in full Duplex mode. / 50 hours in Call receive mode.

“ Battery type: NI-MH. 3,6 VDC pack.

“ Charger: External case/wall mounting charger allowing 4 beltpack charging. ( Not included “ Sold Separately )

“ Headset Connector: 4 pin mini� XLR .

“ Headset Type: Selectable, dynamic or electret.

“ Controls: Call. Volume level. Mic On/Off/PTT. Buzz On/Off. Vibrator On/Off.

“ Indicators: Call. Battery status, Low Batt. Mic On/Off. Buzz On/Off. In Range led. Vibrator.

“ Call Notification System: Light, Vibration and Buzzer.

“ Dimensions / Weight: 120x80x25 mm / 175 gr.

 COMPATIBLE PRODUCTS / ACCESSORIES

“ Headsets: WAM-100, WAM-100/2, WAM-100S, WAM-100/2S, WAM-100/2SEC (in-ear) and WAM-100/2L (lightweight)

“ Charger: WBPC-200

“ Base Stations: WBP-202HD beltpack is compatible with any ALTAIR wireless intercom base station (WBS-200HD, WBS-202HD, WBS-200 & WBS-202)
