CueServer 2 Pro

Original price $5,950.00 ex. GST - Original price $5,950.00 ex. GST
Original price
$5,950.00 ex. GST
$5,950.00 ex. GST - $5,950.00 ex. GST
Current price $5,950.00 ex. GST
SKU CS-900-AUST

All prices shown are excluding GST

CueServer 2 Pro

CS-900-AUST

CueServers are powerful lighting control and show playback processors designed to be completely self-contained and extremely cost effective. Available in a series of models, these powerhouse controllers provide limitless solutions to the lighting professional.

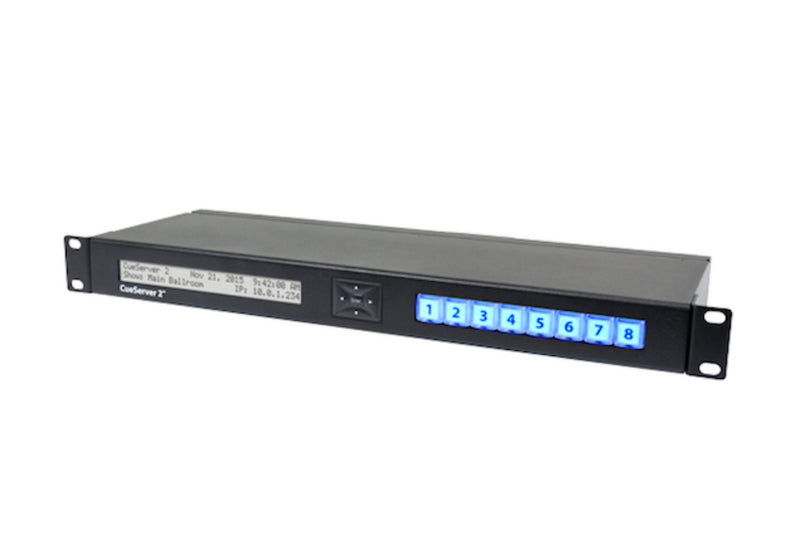

The CueServer 2 Pro (CS-900) is housed in a sturdy 1U rack-mount enclosure with removable brackets.

CueServer 2 Pro features dual LAN ports for splitting Ethernetbased lighting and management data onto separate networks if desired.

CueServer 2 Pro boasts an innovative modular DMX port system.

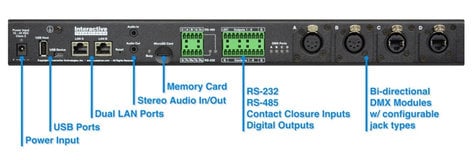

Four bi-directional DMX ports on the back of the unit are userconfigurable with any of seven available port modules. These interchangeable modules allow CueServer 2 Pro to be customized for different installation environments eliminating the need for external adapters.

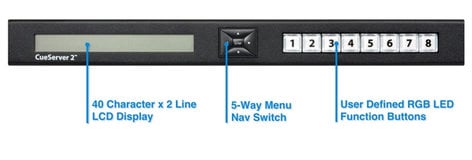

The front-panel of CueServer 2 Pro has eight customizable function buttons. Each button has fully controllable RGB backlighting and field-replaceable legends for project personalization. A navigation keypad is used to operate the onboard LCD menu for basic system settings, show selection, and macro execution

Features:

• Completely self-contained lighting playback, architectural processor, and DMX fade engine
• Seamless handling of Cue Lists, Presets, and Streams
• Control of up to 32 universes of DMX or 32 independent playback timelines
• Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
• Dual Ethernet ports for separate configurable lighting data and management networks
• Flexible module-based bi-directional DMX ports for custom jack configurations
• Front-panel configurable function buttons with RGB backlighting and fieldreplaceable legends
• Creation of lighting scenes directly or capture from external sources
• Powerful CueScript scripting language
• Real-Time clock with astronomical and calendar events
• Built-in web server for hosting custom interactive web pages
• Multi-show storage on removable microSD memory card
• System integration via Ethernet, Serial, Digital I/O, and Audio
• Compatible with CueStation buttons and CueTouch touchscreens
• Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
• Native programming environment for both Mac and Windows
• 1U rack-mounted enclosure with removable bracket

Includes:

Rack-mounted CueServer 2 with power supply (NZ/AUS)

Four empty DMX module slots

Rack mounting brackets

Terminal blocks

1,024 channel license
