CueServer 2 Mini

CueServer 2 Mini

by Interactive Technologies
SKU CS-920
$0.00 ex. GST - $0.00 ex. GST
$0.00 ex. GST
$4,620.00 ex. GST
$4,620.00 ex. GST - $4,620.00 ex. GST
$4,620.00 ex. GST

All Prices Shown are Excluding GST.

CueServer 2 Mini

Compact Lighting Control Processor

Overview

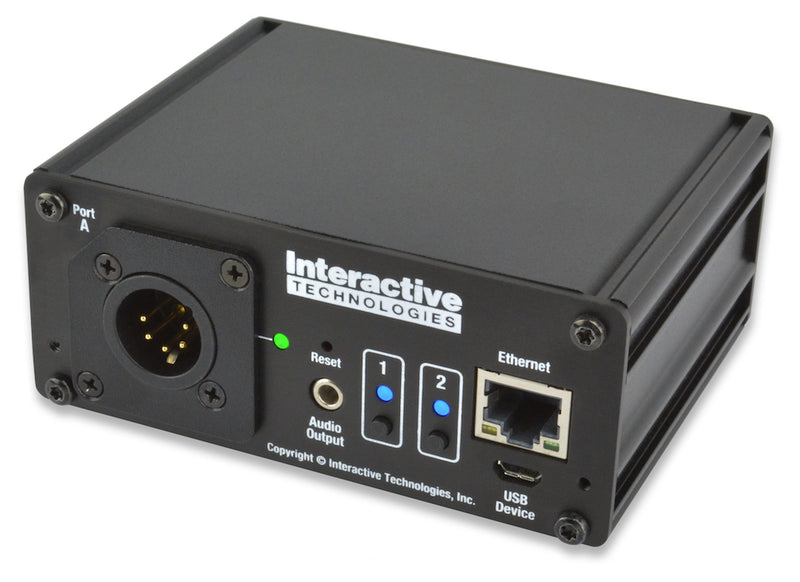

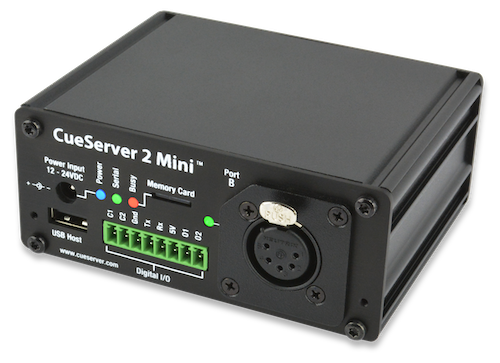

The CueServer 2 Mini (CS-920) is the smallest of the CueServer 2 models and is housed in a rugged anodized aluminum enclosure suitable for desktop use or panel, DIN, or truss mounting using optional bracket kits.

The CueServer 2 Mini can output shows utilizing up to 16,384 channels and features two built-in modular DMX slots that are user-configurable with any of seven available port modules. These interchangeable modules allow CueServer 2 Mini to be customized for different installation environments eliminating the need for external adapters.

CueServer 2 Mini also features two user-definable function buttons with RGB indicators, two contact closure inputs, two low-voltage digital outputs, a serial port, and stereo audio output.

Key Features

  • Completely self-contained lighting playback, architectural processor, and DMX fade engine
  • Seamless handling of Cue Lists, Presets, and Streams
  • Control of up to 32 universes of DMX or 32 independent playback timelines
  • Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
  • Flexible module-based bi-directional DMX ports for custom jack configurations
  • Front-panel configurable function buttons with RGB indicator LEDs
  • Creation of lighting scenes directly or capture from external sources
  • Powerful CueScript scripting language
  • Real-Time clock with astronomical functions and calendar events
  • Built-in web server for hosting custom interactive web pages
  • Multi-show storage and removable Micro SD memory card
  • System integration via Ethernet, Serial, Digital I/O, and Audio
  • Compatible with CueStation buttons and CueTouch touchscreens
  • Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
  • Native programming environment for Mac and Windows
  • Small anodized aluminum enclosure with optional brackets

Technical Specifications

Installable Options

DMX Channels
512 (base)
16,384 (maximum)


Capacity per Show

Universe Patching
128 sACN, Art-Net, or KiNET universes
Playbacks
Up to 32, depending on number of Channels[1]
Cues
1,000,000 per Cue Stack[2]
Cue Stacks
Unlimited[2]
Groups
100,000[2]
Macros
100,000[2]
Global Rules
1,000[2]
Timer Events
1,000[2]
External Button Stations
1,000[2]
Audio Clips
Unlimited[2]
Web Content
Unlimited[2]

[1]The number of channel universes times the number of playbacks must be 32 or less.
[2]These parameters may be limited by available SD Card storage space.


Protocols

Ethernet
UDP, TCP, HTTP, TELNET, NTP, Streaming ACN (sACN), Art-Net, KiNet v1/v2, CueScript, CueStation
Serial
User-Defined ASCII, CueScript, CueStation

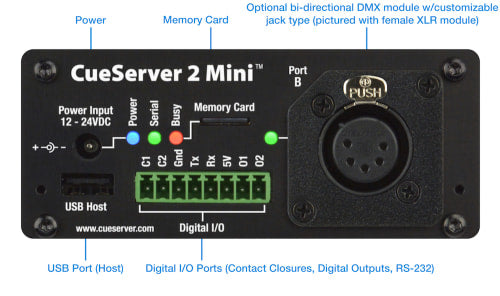

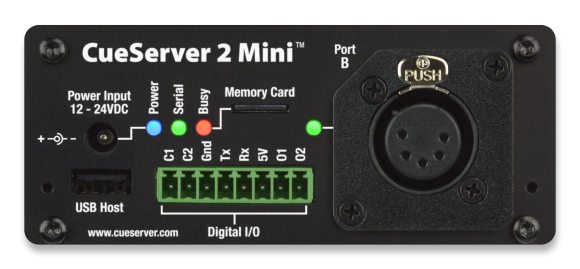

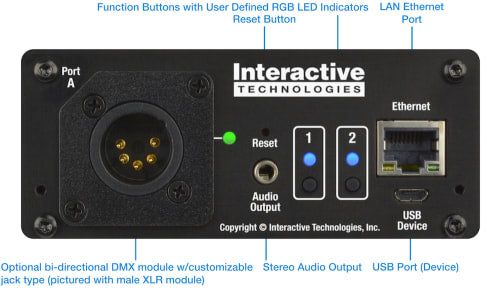

Connections

Power
2.1mm DC Power Input Jack
Network
RJ45 10/100 Base-T Ethernet
I/O
8-Position Pluggable Terminal Block for 2 Contact Closure Inputs, 2 Low-Voltage Digital Outputs, RS- 232 Serial Port and Auxiliary 5VDC Output
Audio
3.5mm, Audio Jack for stereo audio output
USB
(1x) Type-A USB Host Port
(1x) Micro-B USB Device Port


User Interface

Function Buttons
(2x) User-Defined Function Buttons with RGB LEDs


Power

Input
12-24VDC, 7 Watts


Memory

Removable Card
Micro SD (FAT32 formatted cards up to 2TB)


Real Time Clock

Type
Battery-backed, 1 second resolution, less than +/-5ppm drift
Synchronization
Automatic using Network Time Protocol (NTP)
Event Triggers
Time of day, day of week, day of month, week of month, year, date range, astronomical time
(relative to sunrise or sunset +/- specified offset)


Physical

Width
4.27" (109 mm) without mounting brackets
4.81" (122 mm) with vertical mounting bracket
5.13" (130 mm) with vertical DIN mounting bracket
6.15"(156 mm) with horizontal mounting brackets
Length
3.43" (87 mm)
Height
1.77" (45 mm)
Weight
0.7 lbs. (0.32 kg)


Environmental

Operating Temperature
-13° to 158° F (-25° to 70° C)
Storage Temperature
-40° to 176° F (-40° to 80°C)
Relative Humidity
5% to 95% noncondensing
Altitude
10,000 feet maximum
