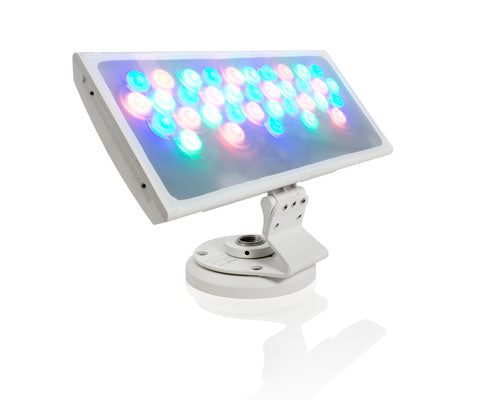

ColorBlast 12 Powercore 23° Beam Angle White Model
All prices shown are excluding GST
Color Kinetics ColorBlast 12 Powercore 23° Beam Angle White Model
910503701743
The ColorBlast® 12 Powercore fixture combines rich, saturated, wall-washing color and colorchanging effects with high performance, operational efficiency, and simplified installation.
Projecting a soft-edge beam of light, ColorBlast 12 Powercore is a sealed product designed
for both indoor and outdoor installations.
Features:
- 10° clear or 23° frosted glass lens
- Low-profile mounting
- Rugged, die-cast aluminum housing
- Meets or exceeds specifications for use in wet locations
- Attaches to standard junction boxes
- Power and data delivered over a single standard cable
- Versatile range of light positioning offered with 350°, friction-free rotation, a locking base swivel, and 110° locking fixture rotation
- Powercore® technology supports 100–240 VAC direct line voltage input for simple installations
Specifications:
Length: 31.7 cm (12.5 in)
Width: 16.5 cm (6.5 in)
Height: 17.2 cm (7.1 in)
Weight: 2.9 kg (6.4 lbs.)
LEDs Per Fixture: 36 (12 red, 12 green, 12 blue)
Total Output: (lumens) 725 lumens
Efficacy (Lm/W): 14.5
Source: High intensity RGB LEDs
Beam Angle: 10º with clear lens; 23º ground lens
Housing: Die-cast aluminum; powder coated finish
Lens: Clear tempered glass or soft-focused tempered glass
Environment: UL Wet; IP66 (Suitable for wet locations)
Power / Data Connector: 1.83 m (6-ft) unified power and data cable
Listings: UL/CUL, CE
Control: Philips Solid-State Lighting Solutions controllers or a DMX512 (RS-485) source.
Operating Voltage: 100 – 240 VAC, 50 – 60 Hz
Power Consumption: 50W maximum, full-intensity, steady state
Temperature Range: -20°C to 50°C (-4°F to 122°F) starting temperature
-40°C to 50°C (-40°F to 122°F) operating temperature
Humidity Range: 0 to 95% non-condensing
LED Source Life: 50,000 hours, based on LED manufacturers’ test data
