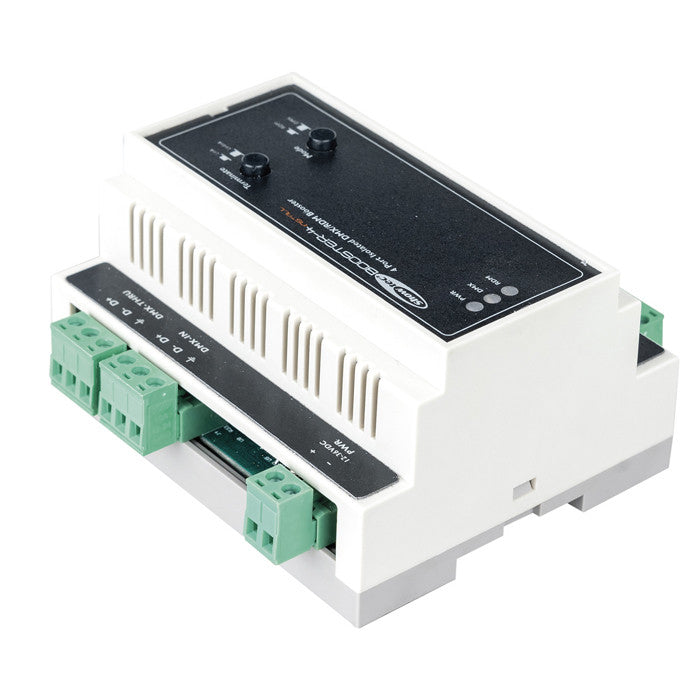

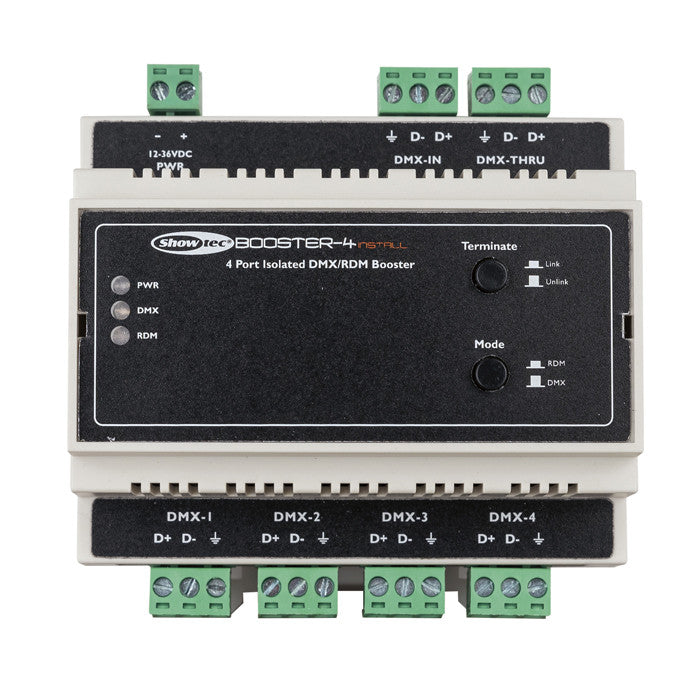

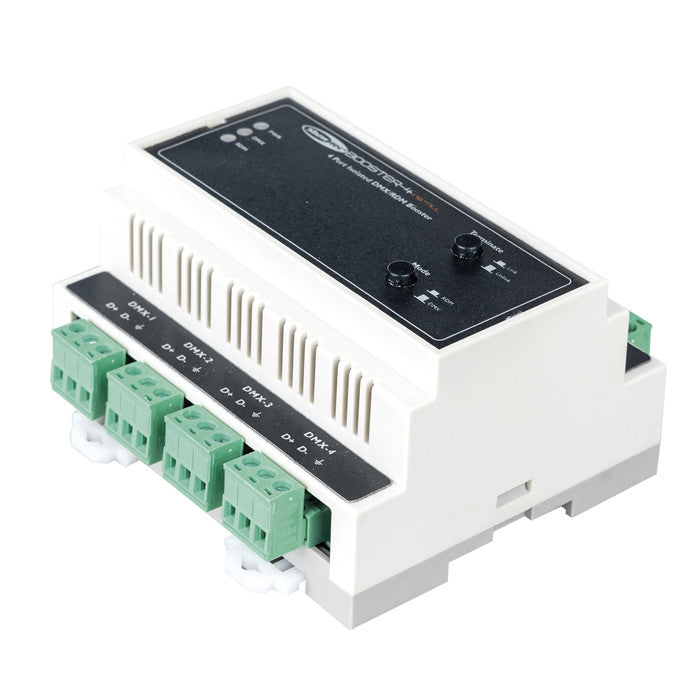

Booster-4 Install Din-rail
All Prices Shown are Excluding GST.
Showtec Booster-4 Install
- Wide range DC input voltage
- Fully isolated inputs and outputs
- RDM compliant
- DIN EN43880 form factor
- DIN EN60715 rail system
The Artecta Booster-4 Install is the ideal compact fixed-installation booster for you. All connections are easy connectable with the plug-in Phoenix terminals, and both inputs as all outputs are optically isolated to prevent any interference from getting hold of your signal. The din-rail mounted Booster distributes both DMX and RDM and is ideal for network system integration projects.
Electrical Specifications and Connections
Power Supply | 12-36 VDC |
Power Consumption | 9 W |
Power Connector in | Phoenix |
DMX Connector | Phoenix In/Out |
DMX Connector in | Phoenix |
DMX Connector out | Phoenix |
Mechanical Specifications
Length (mm) | 106 mm |
Width (mm) | 87 mm |
Height (mm) | 58 mm |
Weight | 0.18 kg |
IP Rating | IP20 (indoor use only) |
Housing | Plastic |
Colour | Grey |
