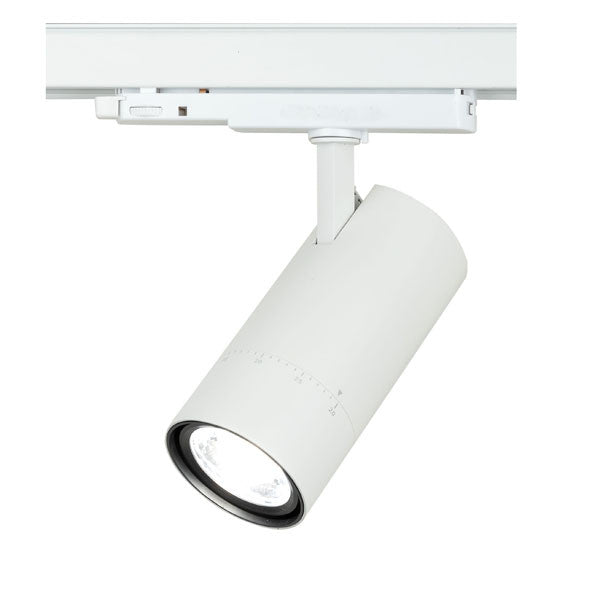

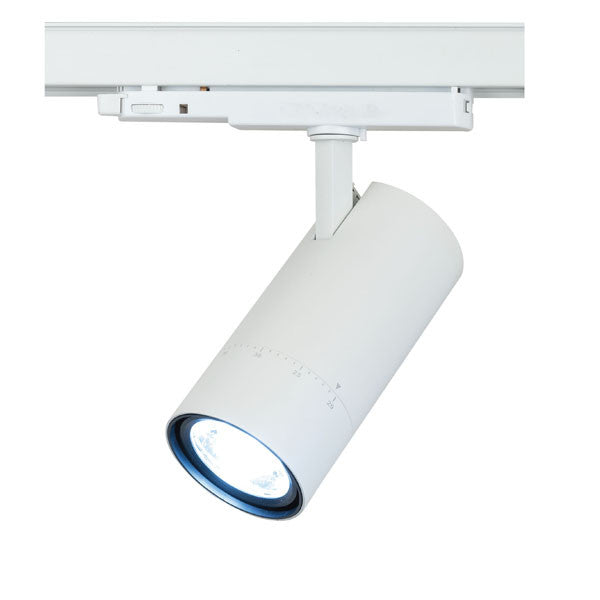

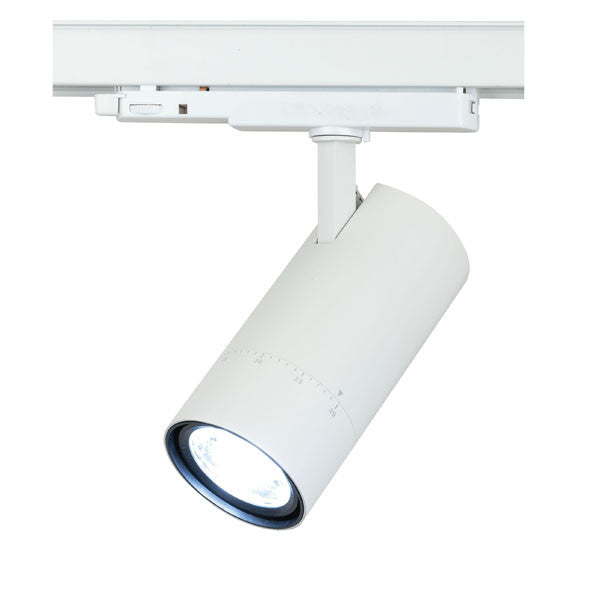

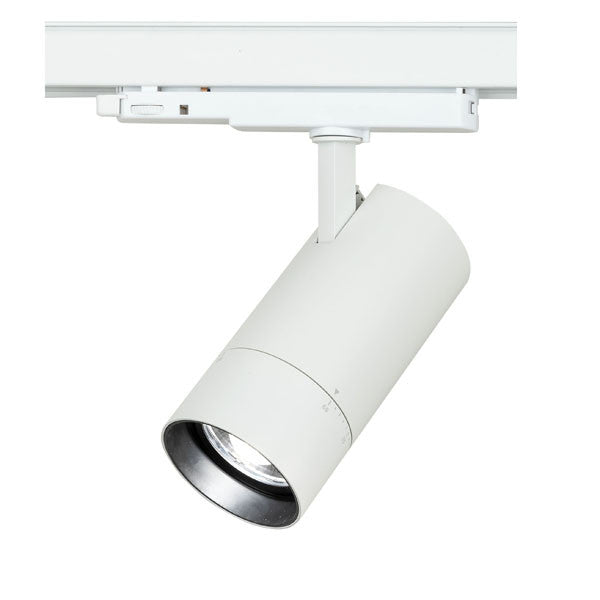

Artecta Newark 30W CCT Zoom 20°-60°
SKU A0320221
Original price
$330.00 ex. GST
-
Original price
$330.00 ex. GST
Original price
$330.00 ex. GST
$330.00 ex. GST
-
$330.00 ex. GST
Current price
$330.00 ex. GST
50 W Switchable White LED Profile - White
- 30 W Dimmable White LED Track Light
- Manually adjustable 20°–60° zoom
- Suitable for 3-phase track rail
- Dimmable driver
- 2700 K, 3000 K & 4000 K colour temperature
The Artecta Newark 30 W CCT Zoom 20°–60° is a Warm, Neutral and Cool White 130 W LED light suitable for a 3-phase track system. The beam angle is manually adjustable from a narrow 20° to a wide 60° and there is a switch at the back for switching between 2700 K, 3000 K and 4000 K colour temperature. These colour temperatures are very accurate due to a high >90 CRI.
Equipped with a dimmable driver, the light intensity can be adjusted when using an external LED dimmer. Also, the Newark series is available in either black and white to fit any setting.
Equipped with a dimmable driver, the light intensity can be adjusted when using an external LED dimmer. Also, the Newark series is available in either black and white to fit any setting.
Specifications
Source
| Light Source Type | LED |
| Light Source Quantity | 1 |
| Light Source Power | 30 W |
| LED Colour Type | WW, WW+, NW |
| Lux @ 2m | 2400 lx |
| Lumen Total | 2400 lm |
| CRI | 90 |
| CCT Minimum | 2700 K |
| CCT Maximum | 4000 K |
| Dimmable (Type) | Leading Edge, Trailing edge, Triac |
Optical
| Beam Angle Circular (min) | 20° |
| Beam Angle Circular (max) | 60° |
Control and Programming
| Dimmable | Yes |
Movement
| Tilt Range | 90° |
| Turning Range | 360° |
Electrical Specifications and Connections
| Power Supply | 220V-240 VAC 50 Hz |
| Power Consumption | 35 W |
| Power Connector in | 3 Phase Track Adaptor |
Mechanical Specifications
| Length (mm) | 230 mm |
| Height (mm) | 80 mm |
| Width (mm) | 80 mm |
| Weight | 1 kg |
| IP Rating | IP20 (indoor use only) |
| Housing | Aluminium, Plastic |
| Finish | Powder Coating |
| Colour | White |
Rigging
| Mounting Options | 3 Phase Track Adaptor |
Thermal Specifications
| Maximum Ambient Temperature | 40 °C |
|
Minimum Ambient Temperature
|
-20 °C |
Product code A0320221
EAN 8717748517036
