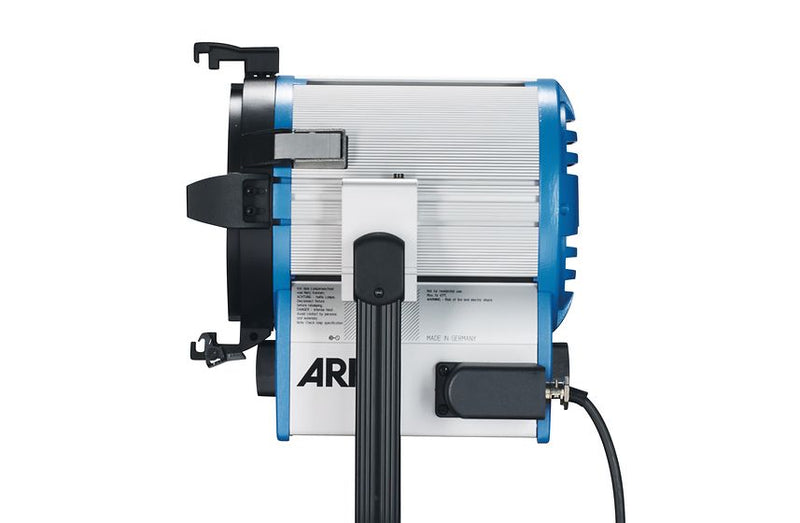

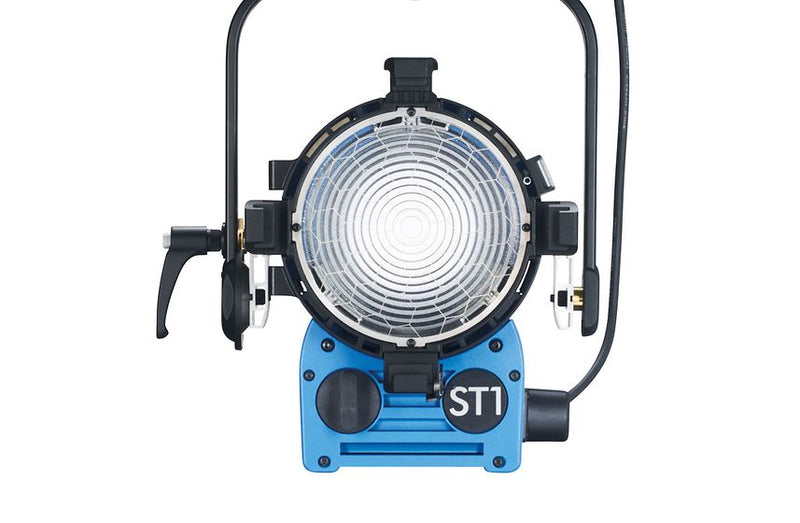

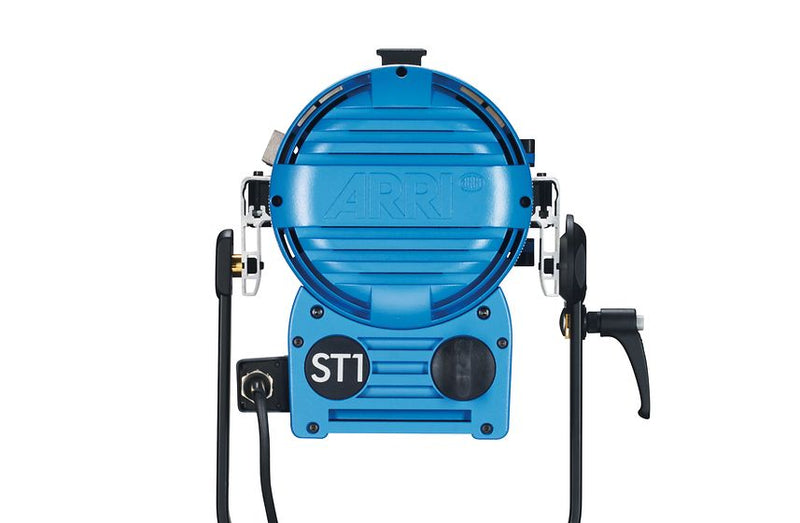

ARRI ST1 Tungsten Fresnel Blu/Silvr 230VAC Pole Op c/w 1.5m Cable, 4 leaf barndoor and filterframe
All Prices Shown are Excluding GST.
ARRI True Blue ST1
ARRI True Blue represent an unprecedented evolution of the studio fixtures that have been popular workhorses for over two decades. Following extensive research and feedback from lighting professionals around the world, combined with advances in technology, ARRI has designed a series of six highly innovative lampheads with over 30 new improvements for studio and location lighting. ARRI Fresnels are available in both manual and pole-operated versions.
Features
- Cross Cooling System: new, highly effective cooling streams in addition to conventional cooling
- Sliding Stirrup: centre of gravity adjustment
- Tilt Lock: stainless steel friction disc for rigid lock-off
- Top Latches: application-oriented Top Latches for location or studio use
- Adjustable Accessory Brackets: adjustable 2-scrim and 4-scrim position
- Stainless Steel Lens Protection: maximised light transmission and high temperature stability
- Extremely Robust Barndoors: made of special alloy with high strength-to-weight ratio and effective tightening function
- Maintenance: more shared parts, very fast access to all interior workings with three torx drivers only
- Protection Class IP23: safe indoor and outdoor use
- Safety Certification: CE, GS, cNRTLus
Category | Tungsten |
Series | True Blue ST |
Model | True Blue ST1 |
Mains Plug | Schuko, Bare Ends |
Lamphead Type | Fresnel, 1,000 W |
Reflector | Spherical specular high purity aluminium |
Lamp Type | CP/40 FKJ 1,000 W, 230 V; CP/71 FKJ 1,000 W, 230 V |
Power Consumption | 1,000 W |
Voltage Range | 100 to 240 V |
Lamp Base | G22 |
Dimming | yes, 0 to 100 % via external dimming system |
Correlated Color Temperature | 3,200 K |
Beam Angle | 8.3° to 53° |
Weight in kg net* | approx. 7 kg |
Weight in kg packed* | approx. 9 kg |
Measurements (HxWxL) incl. Pin in mm* | - |
Measurements (HxWxL) excl. Pin in mm* | 398 x 362 x 325 mm |
Measurements (HxWxL) Packed size in mm* | 475 x 395 x 405 mm |
Lens / UV-Protection Glass Diameter in mm | 175 mm |
Accessory Diameter in mm | 230 mm |
Barndoor in mm | 245 mm |
Mounting | Spigot 28 mm / 1 1/8"" |
Housing Color | Blue/Silver, Black |
Protection Class / IP Rating | I / IP23 |
Certifications | CE, CB, ENEC, cNRTLus |
