ARRI S360-C SkyPanel Set

SKU L0.0016329

Contact us for pricing

All Prices Shown are Excluding GST.

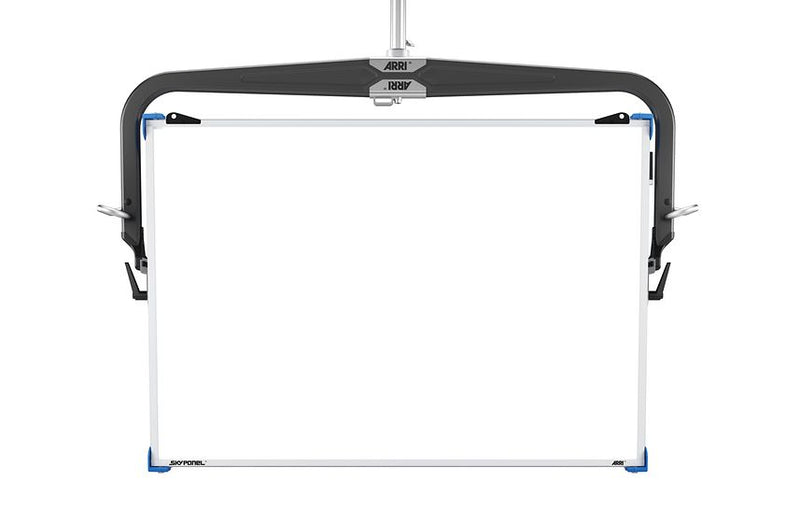

ARRI Skypanel S360-C

The SkyPanel Family. Different sizes for different applications.

The ARRI SkyPanel has always been known for its tremendous output and large light aperture. The new S360-C has expanded ARRI’s LED soft light range with the largest and brightest SkyPanel to date. Not only is the S360-C powerful, but it is packed full of exciting features, making it one of the most versatile LED fixtures on the market. Features include full color control, lighting effects on a huge aperture, wireless DMX built in, a unique carbon fiber yoke, and much more. The S360-C is truly a beast of a light.

Enormous Aperture

Soft lights are all about size, the larger the aperture the better. With the S360-C, size has not been compromised. The surface area of the S360-C is over 5.8 times larger than the S60 and produces beautiful soft light in a wide 105° beam angle. The light will wrap around large objects and throw much farther than the smaller SkyPanels

Lumens, Lumens, and more Lumens

At over 120,000 lumens, the S360-C is one of the brightest LED soft lights on the market. Compared to the S60-C, the S360-C is more than four times brighter and maintains excellent color quality and tuneability. Consuming only 1500 watts, the S360-C is twice as bright as a 4,000-watt tungsten soft light and over three times as bright as a 12,000-watt tungsten space light. Achieving an energy efficacy of over 80 lumens per watt, the S360-C is also one of the most eco-friendly LED soft lights available while also being one of the brightest.

Lighting Effects on a Grand Scale

In SkyPanel Firmware 3.0 and greater, powerful lighting effects were introduced into the SkyPanel family. And with the introduction of the S360-C, these effects are even more impressive. Over the large aperture of the S360-C, the dynamic light effects appear more dramatic and powerful. The fire effect covers a huge area, the cop car effect can blast down a street, and the paparazzi effect looks like an entire press corps snapping photographs. With the turn of a few knobs, amazing and realistic effects are at the crew's fingertips.

Category LED
Series SkyPanel
Model S360-C
Optical System Swappaple Soft Diffusion Panel
Light Aperture / Lens Diameter in mm 1280 x 870 mm
Light Aperture / Lens Diameter in inch 50.4 x 34.4"
Beam Angle 105° (Half Peak Angle)
Weight in kg net* approx. 41 kg
Weight in kg packed* -
Measurements (HxWxL) incl. Pin in mm* 1237 x 1594 x 203 mm
Measurements (HxWxL) excl. Pin in mm* 1122 x 1594 x 203 mm
Measurements (HxWxL) Packed size in mm* -
Handling Carbon Fiber Yoke, Dual High-Strength Tilt Lock
Mounting 28 mm Spigot (Junior Pin)
Tilt Angle +/- 90°
Lamphead Voltage Input 54 V DC
Power Consumption 1500 W Maximum
Lamphead Power Connection Male 4-Pin Metal Locking - 30 Amp
Battery Connector -
Battery DC Voltage Range -
White Light 2,800 K to 10,000 K continuously variable correlated color temperature
Coloured Light Full RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition CRI Average > 95, TLCI Average > 90
Green-Magenta Adjustment Continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming 0 to 100 % continuous
Control On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Wireless Control LumenRadio CRMX (DMX & RDM)
Remote Device Management (RDM) DMX Setup, Hour Counter and Standard RDM Commands
Software / Mini-USB Interface Ethernet: DMX Setup, Fixture Status & Control and Firmware Upgrade through PC or Mac, USB-A: Software Upgrade via flash drive
Housing Color Blue/Silver
Ambient Temperature Operation -20 to +45° C (-4 to +113° F)
Protection Class / IP Rating III / IP20
Estimated LED Lifetime 50,000 hours
Estimated Color Shift Over Lifetime (CCT) +/- 5 %
Certifications CE, CB, GS, cNRTLus, FCC, PSE
Power Supply Unit S360 PSU
Power Supply Input Range 100 to 240 V ~, 50/60 Hz
Power Supply Output Range 54 V DC
Power Input Connection powerCON 32A (Bare Ends / Schuko / Edison / China / Japan)
Power Output Connection Female 4-Pin Metal Locking - 30 Amp
Weight in kg approx. 11 kg
Measurements (HxWxL) in mm* 206 x 240 x 451 mm
Control On-Board On/Off Switch
Mounting SkyPanel PSU Super Clamp Adapter
Certifications CE, CB, ENEC, cNRTLus
