ARRI Omnibar 4 Production Kit
ARRI Omnibar 4 Production Kit

ARRI Omnibar 4 Production Kit

by ARRI
SKU
NZD $15,115.00 ex. GST - NZD $15,115.00 ex. GST
NZD $15,115.00 ex. GST
NZD $15,115.00 ex. GST - NZD $15,115.00 ex. GST
NZD $15,115.00 ex. GST

All Prices Shown are Excluding GST.

Choose a Colour
Got a Question? Ask us here

Key Details

  • For Film, Broadcast & Video Production
  • Six Linear IP65 LED Lights
  • CRMX/Bluetooth Wireless Control
  • Wired DMX Control via Included Omnibase
  • Magnetic Optics and Mounting
  • RGBAM Color Mixing, 1700-20,000K CCT
  • Battery-Powered Operation
Designed for fast setup and creative lighting scenarios, the ARRI Omnibar 4 Production Kit provides six sleek, linear Omnibar 4 LED lights that can be daisy-chained and extended for a variety of productions, such as broadcast, film, and content creation. These long, thin 4' long lights feature built-in wireless control, magnetic optics mounting, IP65 waterproofing, RGBMA color modes, lighting effects, and optional wired control via the included Omnibase. A large Omnibar case is included to carry the lights, power, mounting, and optics accessories.
Quick Facts
  • Linear IP65 LED light with magnetically interchangeable optics and extensive practical mounting options
  • RGBMA color mixing
  • CCT range from 1700 to 20,000K
  • Versatile color modes, new Pixeleffects, and cinematic lighting effects matching SkyPanel
  • Battery powered to allow operation up to 24 hours
  • Built-in CRMX and Bluetooth wireless control
  • Wired DMX control via included Omnibase
  • Omnibase supports daisy-chaining and up to DMX 6 universes
  • The Production Kit includes six lights with diffusers, intensifiers, Omnigrips, Omnipins, eyebolts, and mini tripods
Daisy Chaining
Users can combine and daisy-chain multiple units with minimal visible gaps, so up to Omnibars can share a single power and data source, reducing setup times and minimizing the need for long cables.
Fast, Easy Optics Installation
Designed for quick setups, the Omnibar features flexible rigging options that save valuable time and reduce complexity. Its front-loaded, magnetically fixed, and easily interchangeable optics make it easy to customize your light setup. The included round diffusers can be used for maximum softness and a wide beam spread.
The flat diffusers can be used for controlled softening without significantly altering the beam angle. And the included intensifiers provide a maximum punch with a tight 60° beam.
Onboard Menu and Built-In Battery
The onboard LCD features an intuitive user-friendly menu to toggle between CCT, RGB, and Effects modes, as well as runtime and DMX configuration.



The Omnibar also features a powerful integrated battery and a control panel recessed into the rail system, providing access to core functions such as color modes and lighting/pixel effects. The battery is designed to be fully service-replaceable by ARRI Service, authorized service partners, or rental houses with suitable facilities.

Omnibase
The included Omnibase is a compact unit that allows you to utilize wired DMX control of your wireless Omnibars, providing IP-rated durability and all-weather performance.



It combines a responsive touchscreen interface with 5-pin XLR input and output and RJ45 Ethernet ports that convert wired DMX 512 control and connects to LumenRadio CRMX1 (DMX), Art-Net, sACN, and ARRI Bluetooth Mesh Protocol.

NOTE: A powerCON cable for Omnibase is not included and must be ordered separately.

IP65 Rating
The Omnibar's rugged design and IP65 weatherproof rating perform well in harsh conditions, including resistance to water and dust. It provides a minimum runtime of two hours at full brightness or up to 24 hours at lower outputs. Its ruggedness and durable build make it suitable for semi-permanent exterior and interior installations.
Omniclip
The included Omniclips install around each light and feature multiple screw threads and three angle options, ensuring stable support when the fixture is used horizontally for uplighting or low-angle applications. It's an effective mounting solution for securing bars to set pieces, walls, or screw-compatible surfaces with multiple fixing points.
Omnigrip
The included Omnigrips and Omnipins are a key mounting combination for quick and efficient 16mm attachment onto grip heads, clamps, and compatible stands, with additional fitting points for the included eyebolts to secure safety chains.



They allow you to create a seamless connection of multiple fixtures in horizontal or vertical orientation. For example, you can connect two 2' bars to create a 4' for standard floor use, or connect a 4' and a 2' to make a 6' fixture.

Eyebolt
Made of high-quality steel, the eyebolt is an essential safety component for securing lighting fixtures. Each eyebolt adapter features a customized 3/8" screw design, allowing it to be securely mounted on both sides of the Omnibar for optimal stability. Two eyebolts are provided per fixture, per set.
Wireless Control
In addition to its onboard controls and wired DMX options, Omnibar can be controlled wirelessly via its integrated LumenRadio TimoTwo CRMX chip or Bluetooth Omnibar app. The new ARRI Bluetooth Mesh Protocol allows fixtures to relay control signals between each other to extend range and improve connection stability without additional hardware. Even Bluetooth effects can be controlled and kept in sync via the app.
Omnibar iPhone Control App
The intuitive ARRI Omnibar Control App interface features a clear lighting control layout, detailed status displays, and straightforward configuration screens. It provides speed and simplicity when configuring DMX and control settings for a whole case of Omnibars directly from an iPhone.



You can also utilize the Blackout app for seamless integration with CRMX wireless systems (e.g., LumenRadio), which provides stable connectivity, efficient fixture patching, precise color-control interfaces, and demonstrations of multiple user interactions throughout the control workflow.

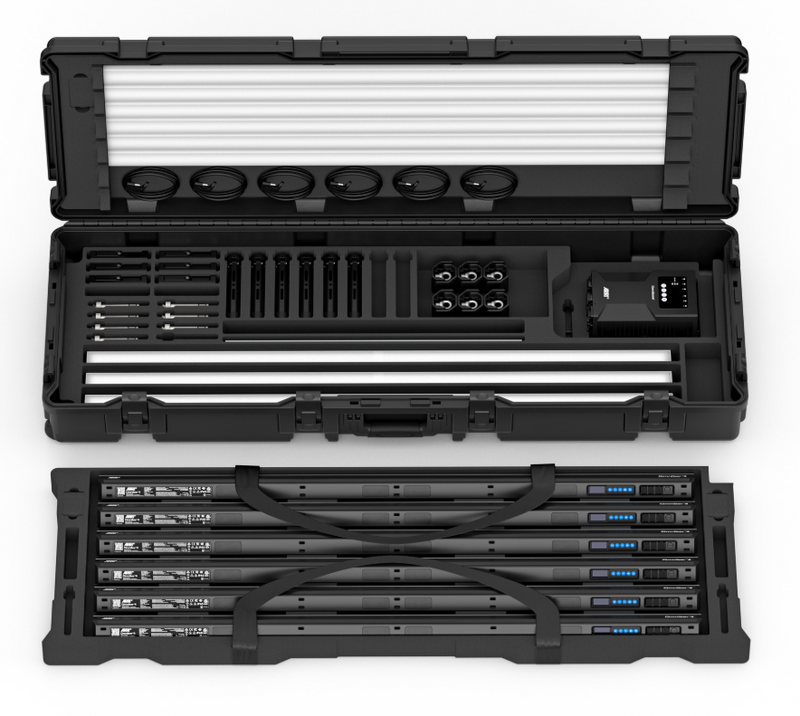

Omnibar Production Case
Each light fits into the kit, the diffusion attachments store neatly in the lid, and each piece of grip equipment has its own dedicated space in the included production case.
Mini Tripod
The mini tripods can be used in various vertical applications and feature four adjustable height settings. It's easy to set up, and it adds efficient placement when running on the built-in battery.

Item Type 6x LED Light Bar

Included Light Modifier 6x Diffuser

6x Dome

6x Intensifier

Included Storage Case Yes

Photometrics at 3.3' / 1 m 115° at 3200K: 124 fc / 1339 Lux (Unmodified)

115° at 5600K: 137 fc / 1475 Lux (Unmodified)

145° at 3200K: 69 fc / 752 Lux (with Dome)

145° at 5600K: 77 fc / 832 Lux (with Dome)

130° at 3200K: 61 fc / 663 Lux (with Diffuser)

130° at 5600K: 68 fc / 737 Lux (with Diffuser)

60° at 3200K: 108 fc / 1168 Lux (with Filter)

60° at 5600K: 119 fc / 1287 Lux (with Filter)

Color Temperature 1700 to 20,000K

Color Modes RGB, Daylight, Tungsten

Color Accuracy Standard CRI 98 at 3200 to 5600K

TLCI 98 at 3200 to 5600K

TM-30 Rf 93 at 3200 to 5600K

Dimming App-Controlled / Built-In Dimmer / Controller Included / DMX / RDM (Continuous)

• 0 to 100%

Front Accessory Mount Proprietary

Wireless Remote Control Type CRMX

Bluetooth

Power Source Battery (Built-In)

AC to DC Adapter (Not Included)

AC Power (Cable Not Included) *Requires Power Supply/Controller (Included)

Battery Per Light:1x Rechargeable (Built-In)

Input Power 24 VDC at 2.1 A

100 to 240 VDC

Power Consumption 50 W

Fixture Mounting 2x 3/8"-16 Female Thread

Proprietary

Magnetic

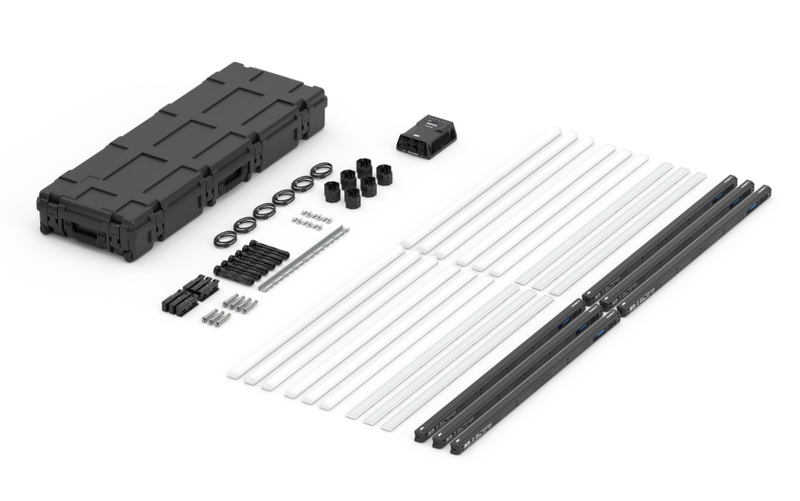

  • ARRI Omnibar 4 Production Kit (Black)
  • 6 x ARRI Omnibar 4 Single Set (Black)
  • 6 x Round Diffuser
  • 6 x Flat Diffuser
  • 6 x Intensifier
  • 6 x Omnigrip
  • 7 x Omnipin
  • 12 x Omniclip
  • 12 x Eyebolt
  • Omnibase
  • 6 x Mini Tripod
  • 6 x Power Cable (4.3')
  • Omnibar Case
  • Limited 1-Year Manufacturer Warranty
