Arri

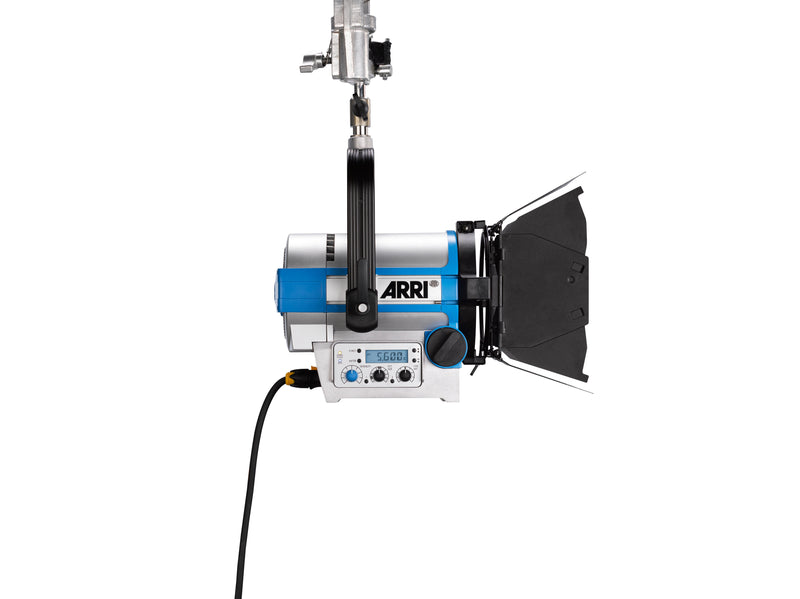

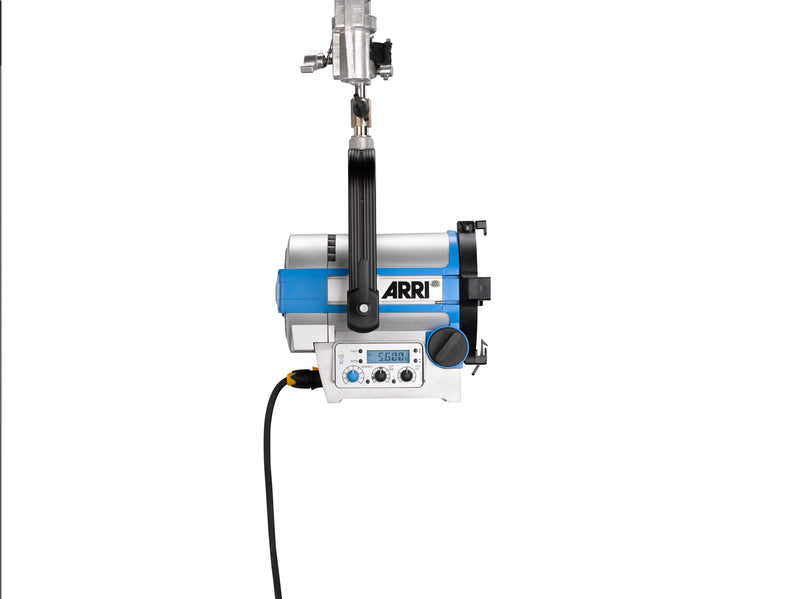

Arri L5-C LED Fresnel Hanging Blue/

  • Sale
  • Regular price $4,940.32


All Prices Shown are Excluding GST.

Arri L5-C

Color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000K, between full plus or minus green and RGBW colors.

The L5 addition to the L-Series perfectly complements the L7, allowing for more mobile lighting and a wider range of power classes for television studios. Its compact size and low weight allow the L5 to be rigged in tight places and hung from low ceilings. The L5 is also ideal for cramped location shoots and interview setups. Low heat allows safer and more comfortable shooting conditions. This versatility and superb light quality make the L5 a highly anticipated addition to the award-winning L-Series family.

New features available on the L5 include a powerCON power connector and an on-board battery input that permits industry-standard batteries to power the L5 without any sacrifice in terms of features or light output. The resulting increase in portability opens up whole new application areas, giving productions with the L5 the tremendous freedom to move and work fast.

The L5 is approximately 45 % brighter than a 300 W tungsten Fresnel, but only consumes 115 watts. When compared to the L7, the L5 is half the weight and size.

STAND-MOUNT
versions include the following base configuration: 16 mm / 28 mm Combo Pin (Baby 5/8" / Junior 1-1/8" Combo Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.

HANGING
versions include the following base configuration: 16 mm / 28 mm Combo Pin (Baby 5/8" / Junior 1-1/8" Combo Pin), 1.5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

POLE-OPERATED
versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 16 mm / 28 mm Combo Pin (Baby 5/8" / Junior 1-1/8" Combo Pin), 1.5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

Technical Data

Category LED
Series L-Series
Model L5-C
Optical System Focusable Fresnel
Light Aperture / Lens Diameter in mm 137 mm
Light Aperture / Lens Diameter in inch 5.4"
Beam Angle 14° to 50° Half Peak Angle
Weight in kg net* Manual Version: approx. 6 kg
Pole Operated Version: approx. 7 kg
Weight in kg packed* Manual Version: approx. 9 kg
Pole Operated Version: approx. 10 kg
Measurements (HxWxL) incl. Pin in mm* Manual Version: 394 x 278 x 280 mm
Pole Operated Version: 451 x 270 x 280 mm
Measurements (HxWxL) excl. Pin in mm* Manual Version: 321 x 278 x 280 mm
Pole Operated Version: 332 x 270 x 280 mm
Measurements (HxWxL) Packed size in mm* 470 x 400 x 410 mm
Handling Adjustable Sliding Stirrup, High-Strength Tilt Lock / Pole Operation Option (Pan, Tilt and Focus)
Mounting 16 mm / 28 mm Combo Pin (Baby 5/8” / Junior 1-1/8” Combo Pin)
Tilt Angle +/- 90°
Lamphead Voltage Input 90 - 250 V ~, 50 - 60 Hz
Power Consumption 100 W Nominal, 115 W Maximum
Power Connection powerCON TRUE1 (Bare Ends / Schuko / Edison)
Battery Connector 4-Pin XLR Connector (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range 23 to 36 V DC
White Light 2,800 K to 10,000 K continuously variable correlated color temperature
Coloured Light Full RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition CRI Average > 94, TLCI Average > 90
Green-Magenta Adjustment Continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming 0 to 100 % continuous
Control 5-Pin DMX In and Through, On-Board Controller, Mini-USB
Wireless Control Not integrated, via SkyLink
Remote Device Management (RDM) DMX Setup, Hour Counter and Standard RDM Commands
Software / Mini-USB Interface DMX Setup, Fixture Status and Firmware Upgrade through PC
Housing Color Blue/Silver, Black
Ambient Temperature Operation -20 to +45° C (-4 to +113° F)
Protection Class / IP Rating I / IP20
Estimated LED Lifetime 50,000 hours
Estimated Color Shift Over Lifetime (CCT) +/- 5 %
Certifications CE, CB, GS, cNRTLus, FCC, PSE
