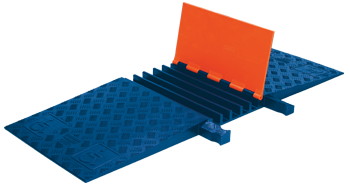

5-Channel General Purpose Guard Dog ADA

Original price $513.90 ex. GST - Original price $513.90 ex. GST
Original price
$513.90 ex. GST
$513.90 ex. GST - $513.90 ex. GST
Current price $513.90 ex. GST
SKU 32137

All Prices Shown are Excluding GST.

Protects Cables And Hoses Up To 1.325" Outside Dia.
  • Dog Bone Connectors To Extend To Any Desired Length
  • Reinforced Hinged Lid For Easy Cable Placement
  • All-Weather Polyurethane Construction
  • Patented 5-Bar Tread Surface For Maximum Traction
  • Interconnects with standard 5 Channel Dog Bone Connector Models
  • Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications

GD5X125-ADA SPECIFICATIONS

Model No. GD5X125-ADA-O/B / GD5X125-ADA-B/B / GD5X125ADAO/BLU
Quantity Included 1
Load Capacity Per Axle 21,000 lbs (9,526 Kg)
Load Capacity Per Tire 10,500 lbs (4,763 Kg)
Length 20 in (50.8 cm)
Width 50 in (127 cm)
Height 1.88 in (4.8 cm)
Max Cable Outside Diameter 1.325 in (3.4 cm)
Number of Channels 5-Channel
Connector Type Dog Bone
Channel Width 1.339 in (3.4 cm)

GUARD DOG® 5-CHANNEL ADA CABLE PROTECTOR has built-in ADA accessibility ramps to provide a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines. Because the ramps are built-in, there is no need for separate connectors.

Another unique feature of this product is that it interconnects directly to a 5-channel standard ramp Guard Dog cable protector. This modular interlocking design is available in lightweight 18" sections and it includes a recessed carrying handle on the underside of the protector. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.

SKU: GD5X125-ADA Categories: ,
