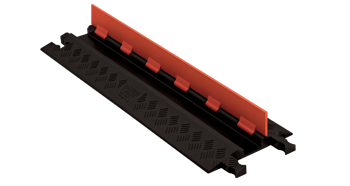

1-Channel Guard Dog Low Profile Cable Protector

1-Channel Guard Dog Low Profile Cable Protector

by Checkers Industrial
SKU GD1X75-ST-O/B
$0.00 ex. GST - $0.00 ex. GST
$0.00 ex. GST
$395.00 ex. GST
$395.00 ex. GST - $395.00 ex. GST
$395.00 ex. GST

All Prices Shown are Excluding GST

  • Protects cables and hoses up to .75" outside dia.
  • Dog-Bone Connectors to extend to any
    desired length
  • Reinforced hinged lid for easy cable placement
  • With standard ramps
  • Patented 5-bar tread surface for maximum traction
  • Modular interlocking design for easy setup

GD1x75-ST - SPECIFICATIONS

Model No. GD1X75-ST-O/B / GD1X75-ST-B/B
Quantity Included 1
Load Capacity Per Axle 26,000 lbs (11,794 Kg)
Load Capacity Per Tire 13,000 lbs (5,897 Kg)
Length 38.5 in (97.8 cm)
Width 11 in (27.9 cm)
Height 1.25 in (3.2 cm)
Max Cable Outside Diameter 0.75 in (1.9 cm)
Number of Channels 1-Channel
Connector Type Dog Bone
Channel Width 2.25 in (5.7 cm)

GUARD DOG® LOW PROFILE models are the most compact top-loading cable protectors on the market, fitting cables up to 0.75" tall and 2.25" wide. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic while still maintaining a high load-bearing capacity for heavy equipment. The Low Profile models are available with your choice of standard or ADA/DDA compliant ramps.
