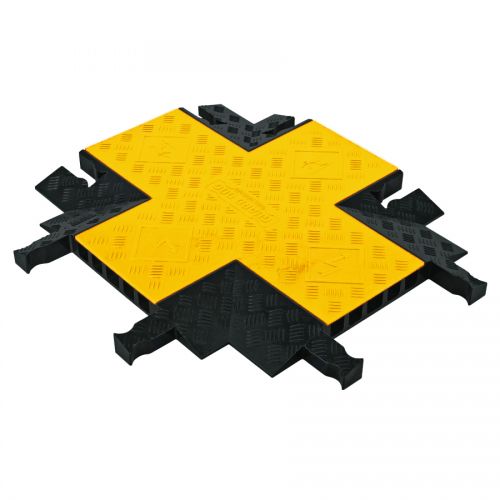

Yellow Jacket,5 Way Cross Yel/Blk

Yellow Jacket,5 Way Cross Yel/Blk

by Yellow Jacket
SKU YJ5-X125-YB
$480.00 ex. GST - $480.00 ex. GST
$480.00 ex. GST
$480.00 ex. GST - $480.00 ex. GST
$480.00 ex. GST

All Prices Shown are Excluding GST.

Use the 5-Channel Heavy-Duty Yellow Jacket® 4-Way Cross with Yellow Jacket® 5-channel cable protector with hinged lid. Provides a safe crossing in high volume traffic areas while protecting valuable electrical cables and hose lines from damage. The modular interlocking design is ideal for use in industrial, commercial, and public applications.

  • Creates 90 degree 4-way cross (split or join cable runs)
  • Protects cables and hoses up to 1.0" outside dia.
  • The "original" cable protector
  • Dog bone connectors to extend to any desired length
  • Thick lid and base allow for high volume of traffic
  • Modular interlocking design
Model No.: YJ5X-125-Y/B
Weight: 16.00 lbs (7.3 Kg)
Quantity: Included 1
Load Capacity Per Axle: 32,600.00 lbs (14,787.40 Kg)
Load Capacity Per Tire: 16,300.00 lbs (7,393.70 Kg)
Length: 19 in (48.3 cm)
Width: 20 in (50.8 cm)
Height: 2 in (5.1 cm)
Max Cable Outside Diameter: 1.325 in (3.4 cm)
Number of Channels: 5-Channel
Connector Type: Dog Bone
Channel Width: 1.34 in (3.4 cm)
