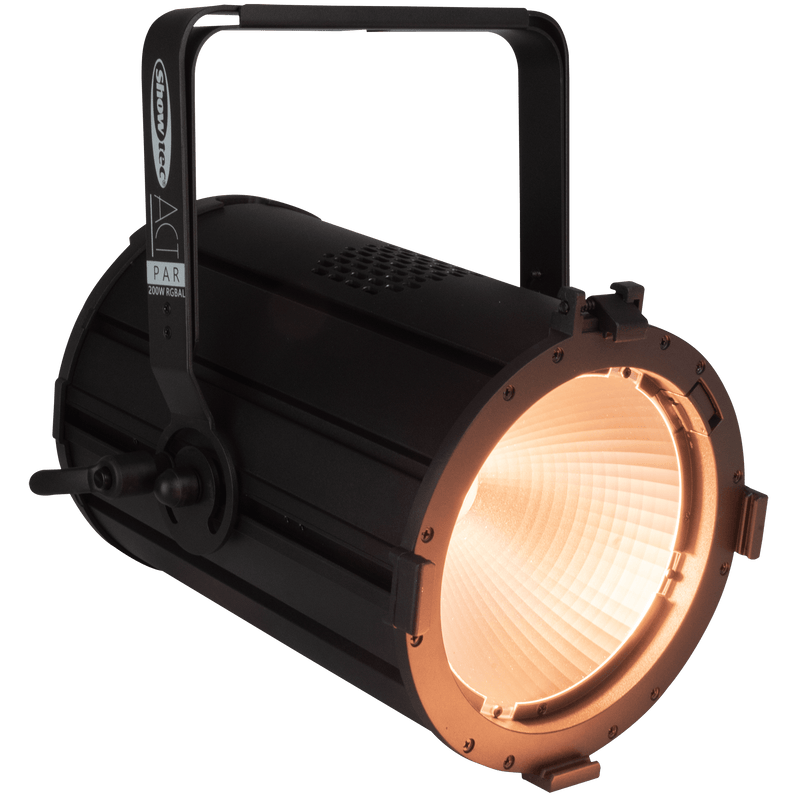

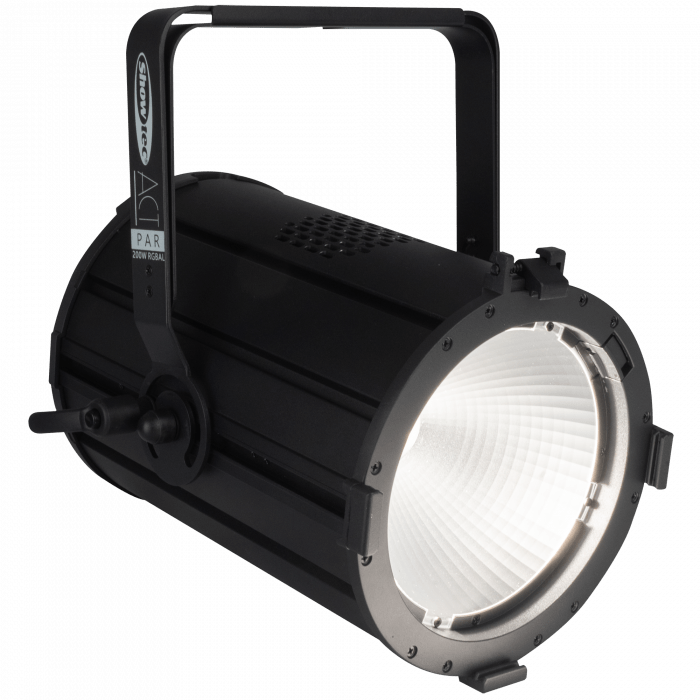

Highlite Showtec ACT Par 200 W RGBAL

SKU 34065
Sold out - Call us for options
Original price $1,568.00 ex. GST - Original price $1,568.00 ex. GST
Original price
$1,568.00 ex. GST
$1,568.00 ex. GST - $1,568.00 ex. GST
Current price $1,568.00 ex. GST

All Prices Shown are Excluding GST.

Got a Question? Ask us here

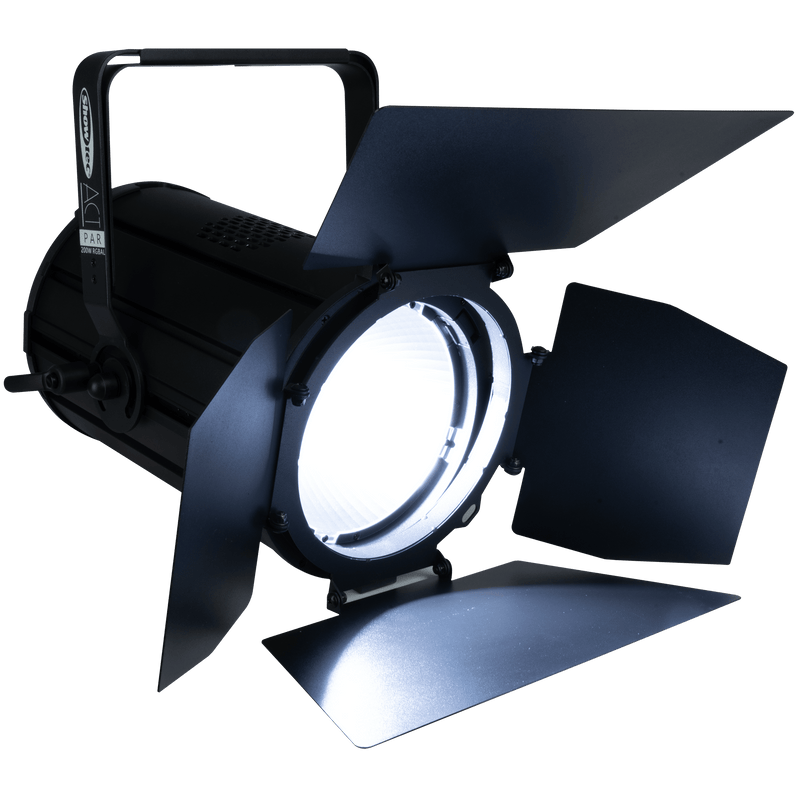

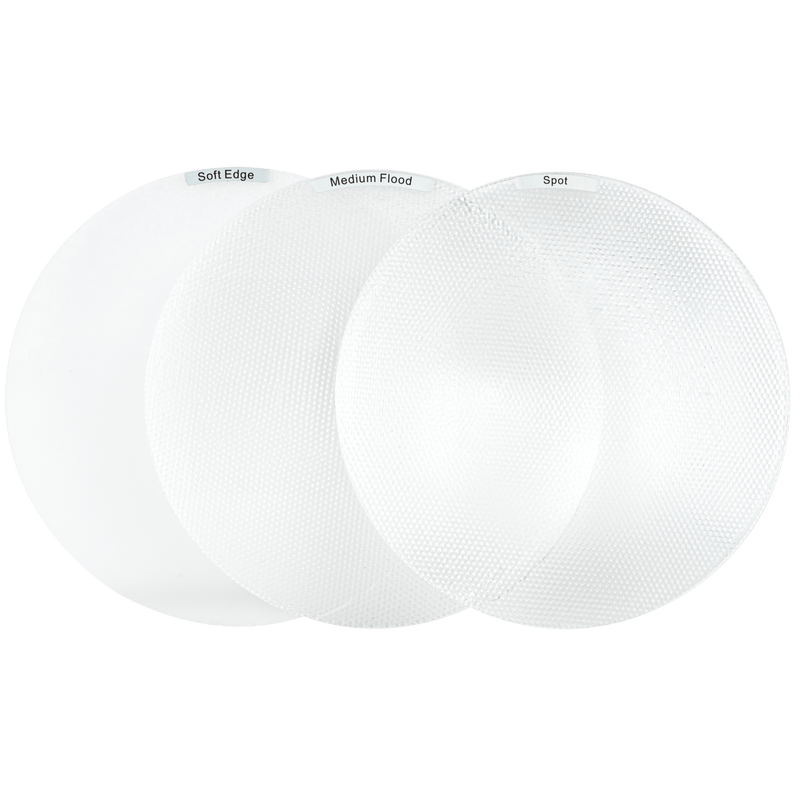

The Showtec ACT Par 200 W RGBAL is a versatile indoor spotlight with a high CRI and RDM capability. Thanks to the RGBAL LED light source (Red, Green, Blue, Amber and Lime), it’s capable of producing a wide range of colours, including white. In addition to the control panel on the back, the ACT Par has two knobs to easily control the colour and intensity when using it in standalone mode, which makes it ideal for applications like exhibitions too. Three diffusers are included, so that the ACT Par can be used a spotlight (30°), a medium flood (50°) or a soft beam (80°). An optional barndoor is also available.

Specifications

Source

Light Source Type  LED
Light Source Quantity 1
Light Source Power
200 W
LED Colour Type
R, G, B, A, L
Luminous Flux (Total)
5481 lm
Luminous Flux (Red)
1619 lm
Luminous Flux (Green)
2004 lm
Luminous Flux (Blue)
602 lm
Luminous Flux (Amber)
1049 lm
Luminous Flux (Lime)
2267 lm
CRI
90
Minimum CCT
2800 K
Maximum CCT
10000 K

Optical

 Beam Angle (Circular) 32 °

Control and Programming

Control Mode DMX, Manual
DMX Channels 5, 8, 12
Protocols DMX, RDM
Display OLED

Dynamic Effects

Dimmer  0-100 %
Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply
100-240 V AC 50/60 Hz
Power Consumption 205 W
Fuse 3.15 A
Power Connector In PowerCon Pro Blue
Power Connector Out PowerCon Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P

Mechanical Specifications

Width (mm)  258 mm (10.158″)
Height (mm) 304 mm (11.969″)
Depth (mm) 280 mm (11.024″)
Weight 4.5 kg (9.921 lb)
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black

Product Properties

Cooling  Convection

Rigging

Mounting Options  Bracket, Floor
Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature  40 °C (104 °F)

Included Items

Included Cables  PowerCon Pro Cable
Included Optics Diffuser
