Dap Audio Cable Tester Pro

SKU D1909
Original price $135.00 ex. GST - Original price $135.00 ex. GST
Original price
$135.00 ex. GST
$135.00 ex. GST - $135.00 ex. GST
Current price $135.00 ex. GST

All Prices Shown are Excluding GST.

Got a Question? Ask us here

Key Details

  • Must have for every roady
  • 9 V Battery operated

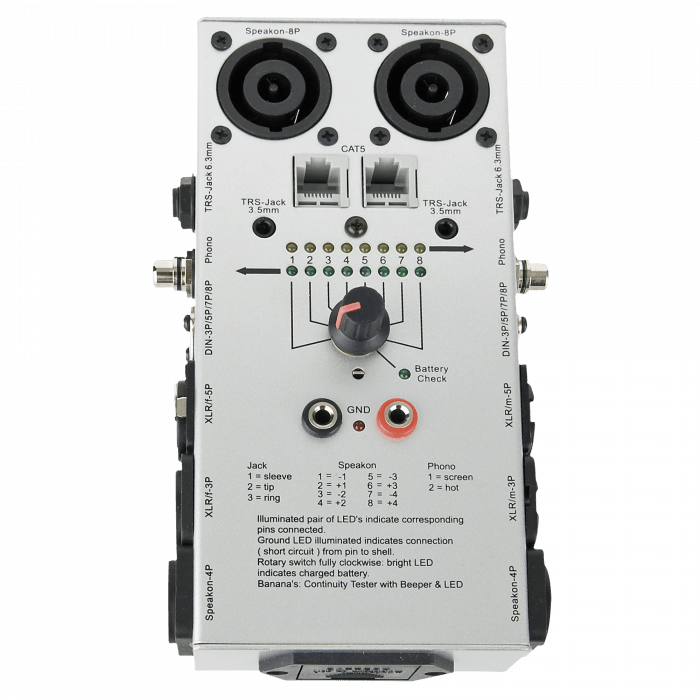

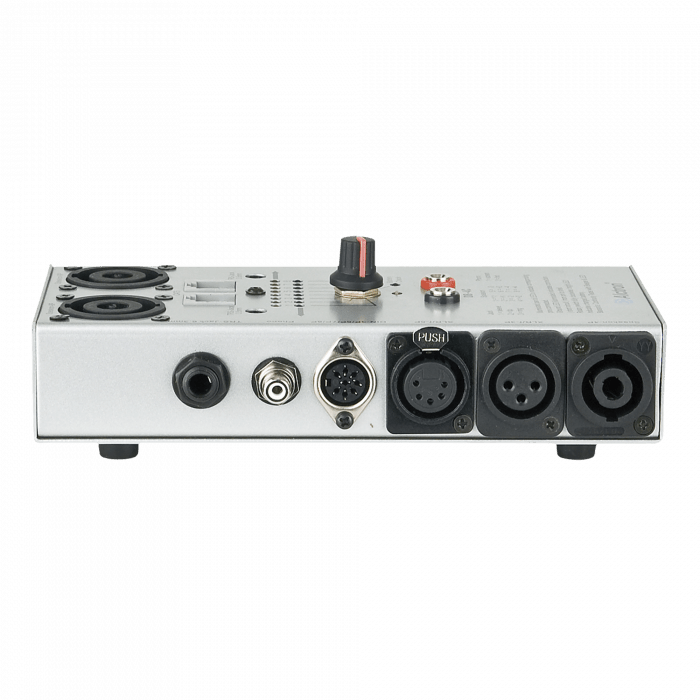

  • speakON 4P, speakON 8P, RJ45, RCA
  • XLR 3P, XLR 5P, 5P Din, 6.3 Jack, 3.5 Jack

The Cable Tester Pro is your ideal tool for checking all your audio cables.
It is easy in use and rugged enough for use on the road.

Battery
Battery Type             9 V Block PP3 not included
Battery Voltage        9 V
Capacity                   0.692 Ah
Battery Power           6.23 Wh
Electrical Specifications and Connections
Connector 1             DIN 5P, Speaker Connector 4 pole , Speaker Connector 8 pole , Pomona, RCA, RJ45, TRS 3.5 mm balanced, TS 3.5 mm unbalanced, TRS 6.3 mm balanced, TS 6.3 mm unbalanced, XLR 3P, XLR 5P
Mechanical Specifications
Length (mm)            190 mm (7.48″)
Height (mm)             60 mm (2.362″)
Width (mm)              112 mm (4.409″)
Weight                      0.8 kg (1.764 lb)
IP Rating                   IP20 (indoor use only)
Material                    Metal
Colour                       Gray

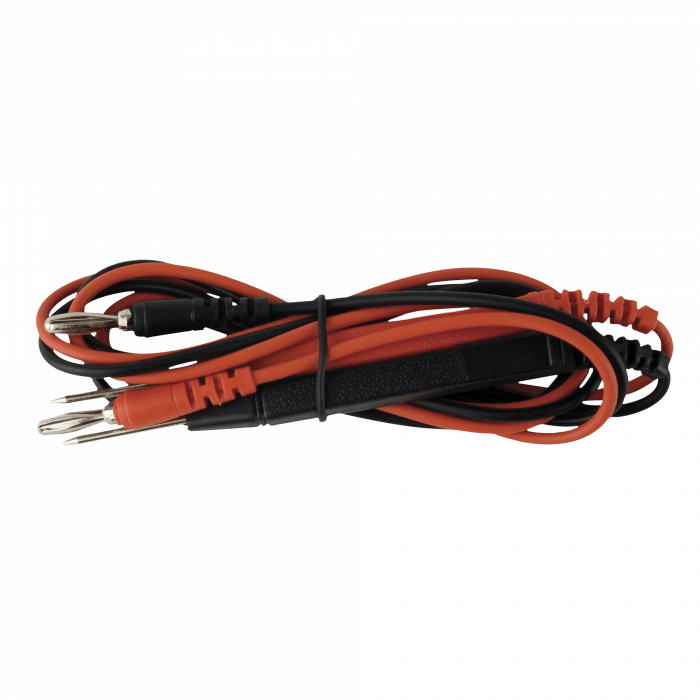

Included Accessories    Battery, Test Leads Red/Black

Download Manual

D1909_MANUAL_GB_V1.pdf
