BB&S Pipeline Raw 2' 5600K

SKU 3516 BB&S
Original price $357.74 ex. GST - Original price $357.74 ex. GST
Original price
$357.74 ex. GST
$357.74 ex. GST - $357.74 ex. GST
Current price $357.74 ex. GST

All Prices Shown are Excluding GST.

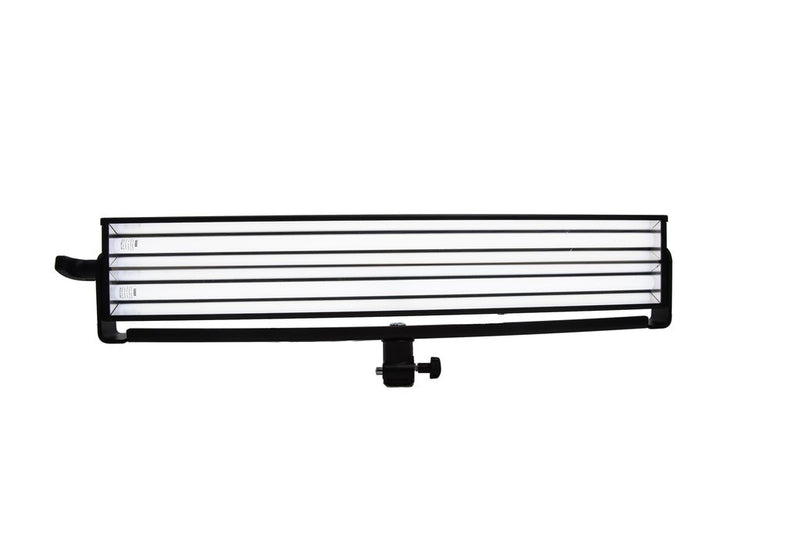

BB&S Pipeline Raw 2' 5600K

BB&S™ new Pipeline Raw 2€™ 2-Bank remote phosphor LED lights are so compact and lightweight with such powerful and controllable output that they are being grabbed up for use by broadcast studios, remote production, and cine work alike€”since deliveries began this season.

Small broadcast studio space saver

When studio space is small, with low ceilings that often don't come with a large power drop, there's a lighting challenge. They require small form-factor lights that provide high light output, low power draw, with high TLCI 98 accurate color quality.

BB&S rides to the rescue with the Pipeline 2' 2-Bank remote phosphor fixtures, available in 3200°K, 4300°K and 5600°K versions.

The compactly-designed 2' 2-Bank fixture weighs 3 pounds and is 24" L x 4" high x 1.5" deep. It comes with a removable honeycomb grid and Diffuser. In studio it can be mounted flush against a wall or ceiling, or hung with multiple optional hardware accessories. In the field it travels lightly as a single unit, in a small case.

Better Color over time

Where traditional LED fixtures may offer a partial solution for the studio, they are limited in providing highly accurate color rendering. And while their phosphor layer is applied directly onto the heat generating LEDs (that degrade over time), BB&S uses remote phosphor technology, which separates the LEDs from the color generating phosphor coating, enabling more vivid color generation, TLCI as high as 98, and less color degradation over the long term.

2' 2-Banks Rugged, High TLCI and Infinitely Dimmable

BB&S Pipeline fixtures, are ruggedly made in a 1-inch cylindrical form that emits light around 180 degrees. They provide upwards of 98 TLCI color accuracy, and are infinitely dimmable with no color shift or flicker. With an aluminum back channel, Pipeline fixtures are practically indestructible. Plus they are smoothly dimmable throughout the range.

Low Power Draw, High Light Output

Each 2' 2-Bank fixture draws a paltry 40W at the 100% end of its dimming range, outputting a maximum of 4000 lumens. This allows up to a dozen of the 2-Banks to be plugged into the same 10amp wall outlet. For field production assignments, commonly available professional 14.4V camera battery packs can also be utilized, with the optional driver dimmer pack, to eliminate the need for AC power outlets.

Control Options

The 2' 2-Banks are part of BB&S€™ Raw series of lights, which means they do not come with their own driver dimmers. A short cable with a 3-pin XLR connector on the 2' 2-Bank allows the BB&S€™ convenient 48V 4-way Controller with 4 each 40 watt channels plus DMX to control up to four of the banks. This 48V solution provides smooth dimming all the way to zero. And there is no flicker at any frame rate. Optional extension cables 8', 16' and 24' can be used, with no power loss.

(Alternatively, users can supply their own LED driver/dimmers with optional DMX packages.)

From Small Broadcast Studios to Run and Gun

With its small footprint, low power draw, high light output at 98 TLCI or better, and full dimming, the BB&S 2' 2-Bank remote phosphor lighting instruments are made to order for small studios and remote broadcast and ENG.
