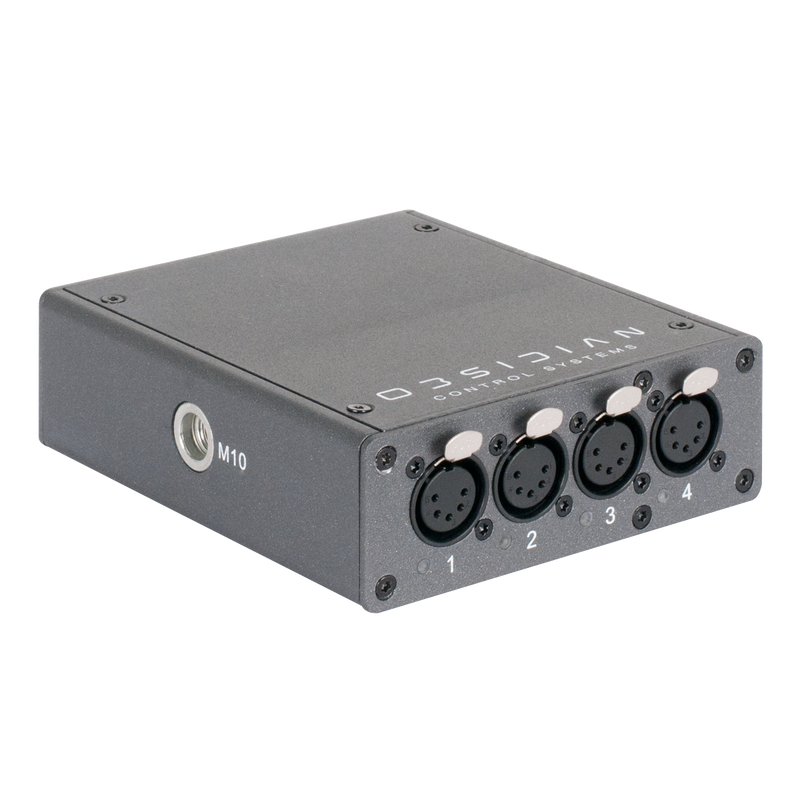

Obsidian Onyx EP4

NRE023

The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.

As a four Universe Node the EP4 is ideally suited for the powerful ONYX NOVA Edition.

Key Features:

  • RDM, Artnet and sACN support
  • Factory and user presets for plug and play setups
  • POE or USB-C powered
  • 99 Internal cues with fade and delay time
  • Remote configuration via internal webpage
  • Powder-coated compact aluminum housing
  • Unlocks ONYX NOVA 4-Universe License

Specifications:

Mounting:

  • Standalone
  • Truss-mount (M10 or M12 mounting hole)
  • Wall-mount horizontal or vertical (included)
  • DIN Rail horizontal or vertical (included)

Connections:

Front
  • (4) 5pin DMX/RDM optically isolated ports
  • Ports are bidirectional for DMX In and Output
Back
  • (2) Locking RJ45 Ethernet network connections (1x POE)
  • USB-C power option (5V, 2A)
Physical:
  • Length: 133.5 mm (5.3 in.)
  • Width: 118 mm (4.6 in.)
  • Height: 42 mm (1.65 in.)
  • Weight: 0.5 kg (1.1 lbs)
Electrical:
  • USB-C 5V
  • POE 802.3af
Approvals / Ratings:
  • CE / IP20
