Strand NEO Compact 10 PC Wing
54104-101

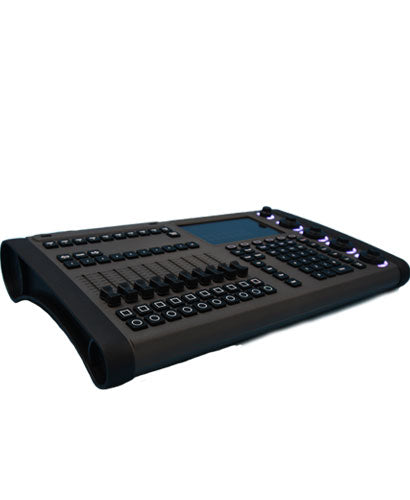

The Strand NEO Compact 10 PC Wing is a USB control surface designed as a companion to Strand NEO PC. The powerful NEO PC software gives users the full power of a premium console platform from their computer. With the addition of the NEO Compact 10 PC Wing users are provided faster, easier programming thanks to the internal 7” touchscreen, 10 user-defined faders and a 0-10 command keypad. Users can quickly manipulate palettes and groups, while using NEO PC to select fixtures, access effects, and manipulate cue lists. The small footprint and built-in DMX connectivity of the NEO PC Wing gives operators a full tactile lighting control surface that can be used anywhere. The Strand NEO Compact 10 PC Wing is the perfect companion for any project where NEO PC is deployed.

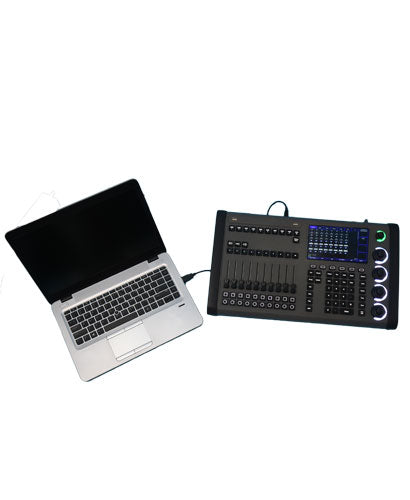

- 10 fader USB control wing - portable, small-format control accessory that easily connects to a PC running NEO PC
- Expanded connectivity - provides additional connectivity separate from PC, 1 DMX in, 2 DMX outand USB
- True 0-10 button numeric keypad - quickly program advanced shows using NEO PC
- Internal touchscreen - intuitive touch-based selection of palettes and groups
- Tiered DMX universe licensing for NEO PC, expandable to unlimited universes - Don’t worry about restrictive limitations. Add more universes as your design changes
- Strand Advantage - use Strand®, Vari-Lite®, or Color Kinetics®luminaires without using your licensed NEO PC DMX universes
STRAND ADVANTAGE DMX
Every NEO lighting control console benefi ts from the Strand Advantage DMX model. This allows
you to patch any Strand®, Vari-Lite®, Color Kinetics® or legacy Selecon and Showline branded
luminaires without consuming the console’s licensed DMX outputs. With Strand Advantage DMX,
you can control thousands of luminaires at no additional cost or output license limitations.
POWER
| AC voltage | 100-240 V AC, 50-60 Hz |
| Typical power and current | 60 W, 1.4 A |
CONNECTIONS
| DC power in | Locking barrel socket, 12 V DC, 4 A |
| Data in | 1x Neutrik 5-pin locking XLR |
| Data out | 2x Neutrik 5-pin locking XLR |
| Serial data, rear panel | 1x USB 3.0, Type B |
| Serial data, front panel | 2x USB 2.0, Type A |
| Security lock | K-Slot |
PROTOCOLS
| Connectivity | DMX-512A RDM Streaming ACN (sACN)* Art-Net* Strand ShowNet* Color Kinetics KiNet* Pathport Protocol* *Requires network adapter support from PC |
USER INTERFACES
| Touchscreens | 1x 7 in. internal |
| Faders | 10x non-motorized, user-defi ned, 10 pages (100 total) |
| Encoders | 1x Level wheel, 4x attribute encoders |
| PC interface | Requires a USB 3.0 connection to a PC running licensed NEO PC installation |
PHYSICALS
| Housing | High-impact fl ame-retardant thermo-plastic |
| Colour | Dark grey |
| Ingress protection rating | IP20 |
| Dust cover | Polished polyurethane, black |
| Optional rack mount kit | Aluminium, black |
ENVIROMENT
| Operating temperature | 0–40°C 32–104°F |
| Maximum surface temperature, steady state, at 25° C ambient |
63°C 145.4°F |
| Cooling | Convection cooled |
| Relative humidity | 0-95% non-condensing |
| Total calculated heat dissipation |
163.8 BTU/hr |
DIMENSIONS
| Console only | 486x302x91mm/19.1x11.9x3.6 in |
| Packed dimensions | 610x350x152mm/24x13.8x6 in |
WEIGHT
| Console only | 2.06kg 4.55lb |
| Packed weight | 4.07kg 8.97lb |
INSTALLATION
| Mounting | Standing or rack-mounted |
| Clearance | 76.2 mm (3 in.) left and right |
| Rack unit | 7U (without cable connections) |
APPROBATIONS
| Approvals / Listings | CSA C22.2 No. 62368-1 EN 62368-0 UL 62368-1 |
INCLUDED ITEMS
- Power supply, 12 V DC, 5 A, 5’ (1.5 m) lead
- Power input cable, EU, IEC C13, CEE 7/4, 6 ft. (1.83 m)
- Power input cable, US, IEC C13, NEMA 5-15P, 6 ft. (1.83 m)
- Power input cable, UK, IEC C13, BS-1363-1, 6 ft. (1.83 m)
- USB 3.0 cable, Type A, Type B, 6.6 ft. (2 m)
- Dust cover
