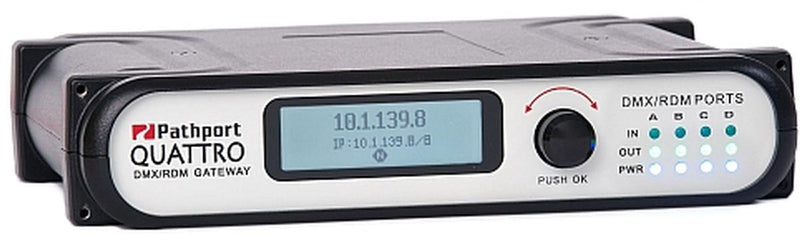

Pathway Pathport Quattro 4port Gate way Rear XLR5F

Pathway Pathport Quattro 4port Gate way Rear XLR5F

by Pathway
SKU 6311
$2,784.25 ex. GST - $2,784.25 ex. GST
$2,784.25 ex. GST
$2,784.25 ex. GST - $2,784.25 ex. GST
$2,784.25 ex. GST

All Prices Shown are Excluding GST.

Power-over-Ethernet operation makes the Pathport Quattro ideal for truss-mounted locations, while silent, fanless operation allows it to be placed immediately next to the lighting console, no matter where the console must be located. The encoder knob/LCD screen interface provides front panel access to all common configuration parameters. Most user won’t need a computer for configuration.

  • Four DMX512 ports, individually configurable
  • 10/100Mb Ethernet port
  • Front panel UI supports configuration of IP settings, port direction, basic patching and more
  • Route DMX on either a universe or channel-by-channel basis
  • Map up to eight sources to each output channel, with merge and/or priority options user-set for each source
  • Acts as E1.20 RDM proxy controller, when used with freely downloadable Pathport Manager software
  • DMX output speed and signal loss behavior user-selectable
  • Compact size - two nodes may fit side-by-side in 1RU of space
  • Rackmount ears included
  • Operates on Poe (Power over Ethernet) or auxiliary 24VDC power supply (accessory)
  • Supports the following Ethernet protocols
  • E1.31 streaming ACN (sACN)
  • Art-Net
  • Pathport Protocol
  • Shownet
