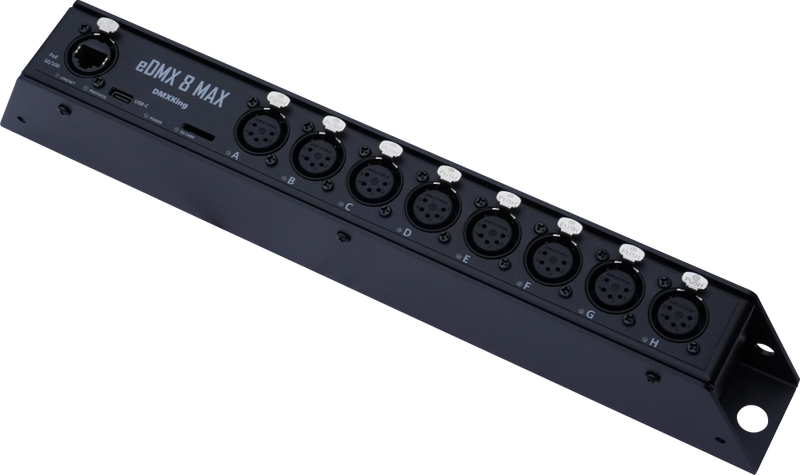

DMXking eDMX8 MAX Rackmount 5 pin

DMXking eDMX8 MAX Rackmount 5 pin

by DMX King
SKU 0139-5R
$0.00 ex. GST - $0.00 ex. GST
$0.00 ex. GST
$899.00 ex. GST
$899.00 ex. GST - $899.00 ex. GST
$899.00 ex. GST

All Prices Shown are Excluding GST.
Got a Question? Ask us here

.. eDMX8 MAX ..

Rugged 8 port DMX512 node. Fully protected and isolated DMX512 IN/OUT independently configurable ports with advanced stream merging and built in show recording for standalone operation.



Main Features

  • Power over Ethernet 802.3af/at compliant. Alternative power via USB-C
  • Tough metal enclosure with multiple mounting options
  • USB DMX functionality in addition to Network ArtNet/sACN
  • Available with 3pin or 5pin Neutrik XLR socket options
  • 8x DMX512 OUT or DMX512 IN isolated ports
  • Merge 2 incoming Art-Net streams per output channel with both HTP and LTP options
  • Merge Art-Net + DMX input -> DMX output(s)
  • Merge 2x DMX input -> DMX output(s)
  • sACN Priority takeover for multi-tier controller arrangements
  • Recording and playback of shows to microSD card (not supplied) - See eDMX MAX Record / Playback manual
  • Static scene recording and playback without requiring SD card. See eDMX MAX Record / Playback manual
  • Standalone scene/show playback without computer or network connection
  • Real time clock with battery (not supplied) backup for intermittent power standalone playback
  • Art-Net I, II, 3 & 4 + sACN/E1.31 protocol support including universe synchronization
  • Static or DHCP IPv4 networking



Downloads
