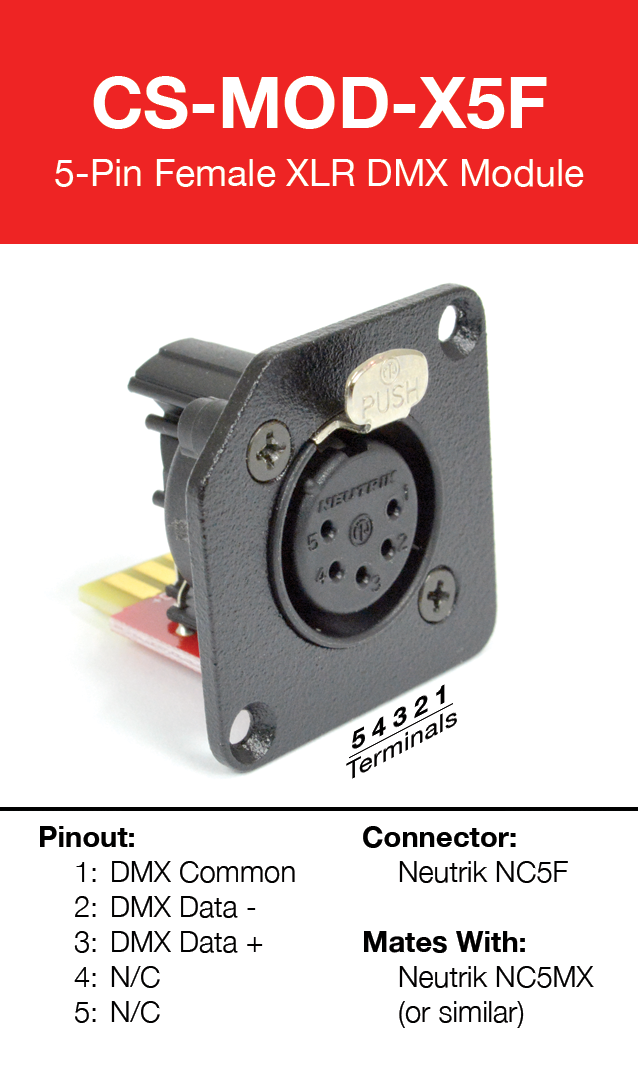

CueServer DMX Module, 5-Pin Female

MOD-X5F

In addition to being able to transmit and receive DMX-over-Ethernet, CueServer also has built-in DMX ports for hard-wired DMX connections to fixtures, dimmers, consoles and virtually any other DMX compatible devices.

The rack-mounted CS-900 has four replaceable DMX module slots, and the miniature CS-920 has two replaceable DMX module slots, each of which can accept any of seven available DMX modules for input or output of DMX. The surface-mounted CS-940 has two DMX input ports and two DMX output ports that are available on the unit’s pluggable terminal block strips. The surface-mounted CS-950 has four bi-directional DMX ports that are available on the unit’s pluggable terminal block strips.

Pinout

1. DMX Common
2. DMX Data -
3. DMX Data +
4. N/C
5. N/C

Connector

Neutrik NC5F

Mates With

Neutrik NC5MX (or similiar)
