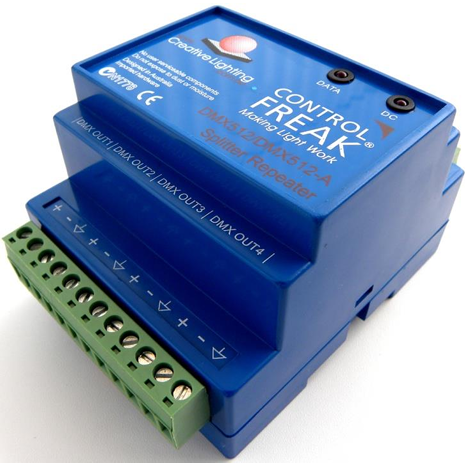

Control Freak DMX Splitter/Repeater 1 in 4 out din rail

SKU CON-SPLITTER 1 I
Original price $440.00 ex. GST - Original price $440.00 ex. GST
Original price
$440.00 ex. GST
$440.00 ex. GST - $440.00 ex. GST
Current price $440.00 ex. GST

All Prices Shown are Excluding GST.

CL Con-Splitter 1 in 4 out din rail

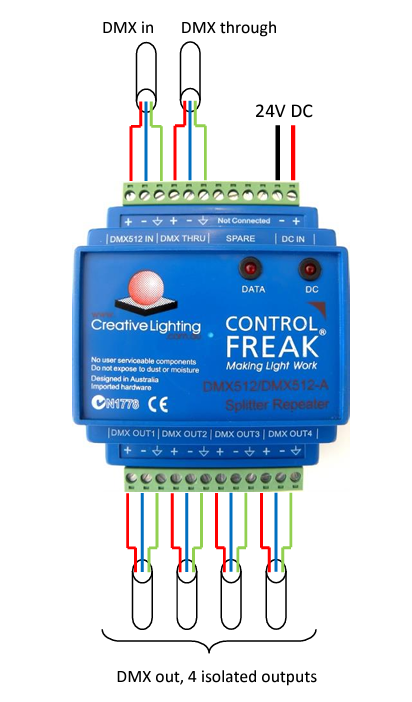

The DMX512-A splitter/repeater provides a DMX512-A input along with a passive loop through connection and four optically isolated DMX512-A outputs. Each of the four outputs can drive 32 DMX512-A devices. Please note that the maximum number of devices can vary depending on the quality of the receivers.

The splitter also incorporates an end-of-line termination resistor which is selectable via an internal dip switch together with the ability to connect or disconnect the signal ground.

Input Voltage:  9V to 40V DC
Power: 4.5W max
Operating Temperature: 0oC to +70oC
Data Protocol: DMX512-A
Terminals
Inputs: 1 x DMX512-A input & 1x DMX512-A through
Outputs: 4 x DMX512-A outputs
Physical Dimensions
Height: 105mm
Width: 71mm
Depth: 59mm
EMC Compliance: C-Tick, CE
DMX Protection (IN) +-60Vdc, +-15kV HBM ESD
