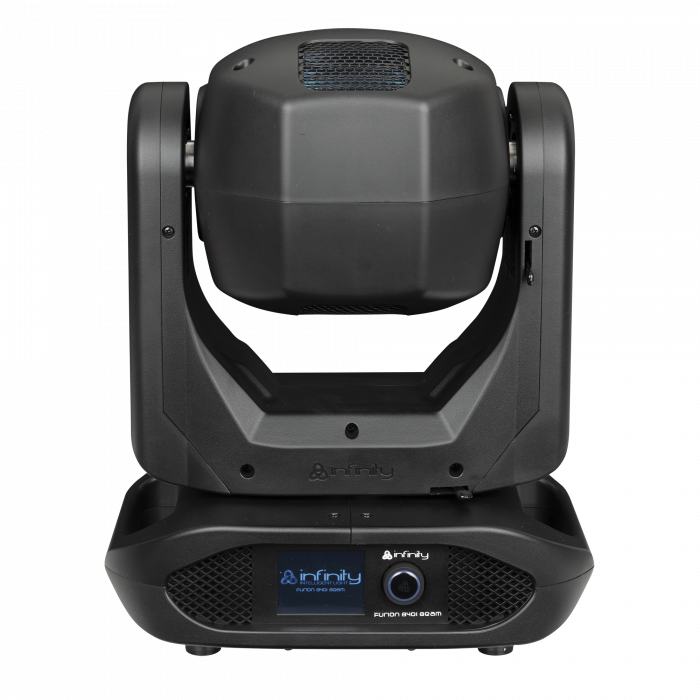

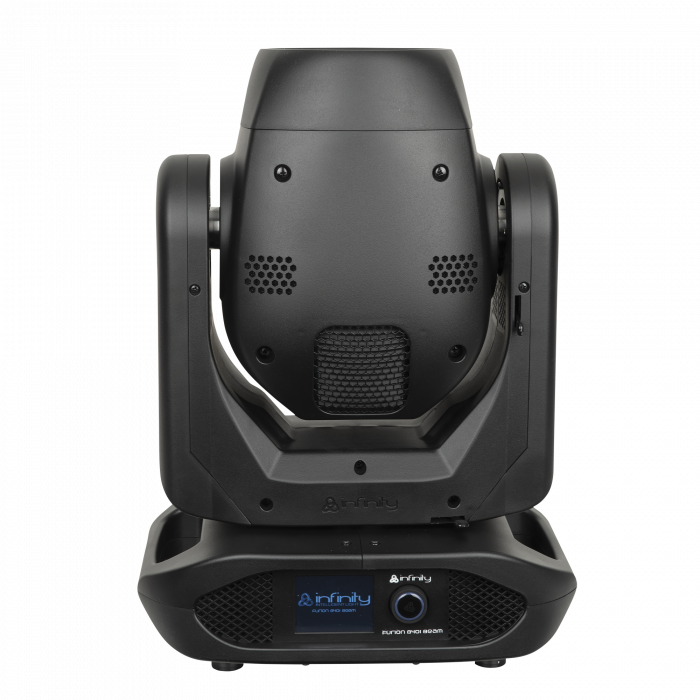

Infinity B401 Beam

Infinity B401 Beam

by Highlite Infinity
SKU 41533
$4,961.94 ex. GST - $4,961.94 ex. GST
$4,961.94 ex. GST
$4,961.94 ex. GST - $4,961.94 ex. GST
$4,961.94 ex. GST

All Prices Shown are Excluding GST.

  • Multiple Colour bump possibilities
  • Prism Overlay
  • Frost filter
  • Fast movement thanks to high torque motors
  • Onboard W-DMX

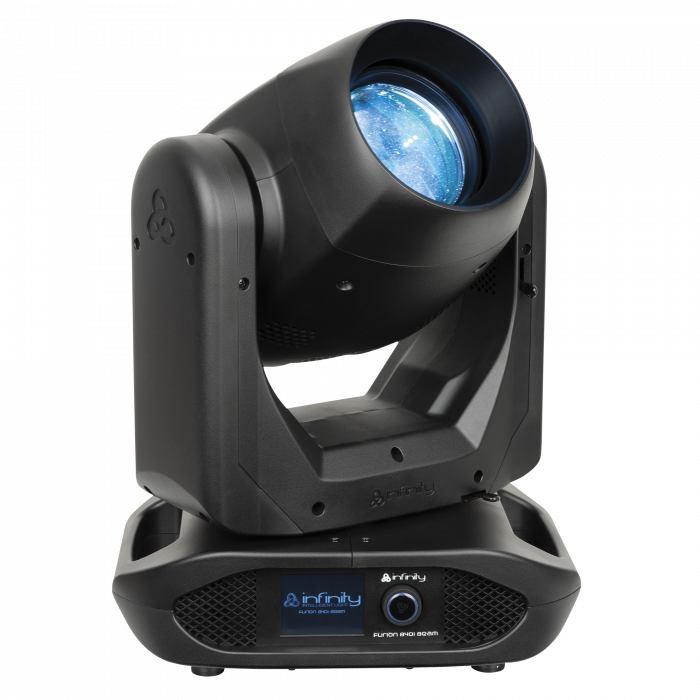

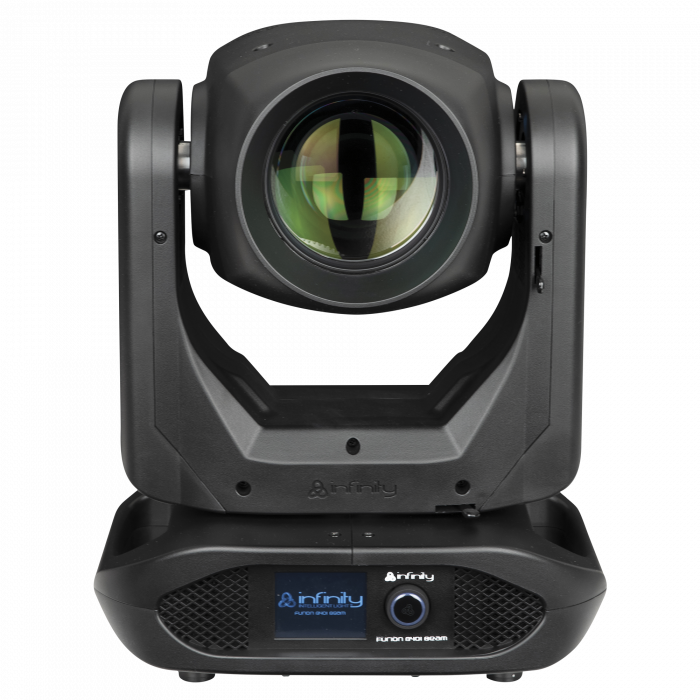

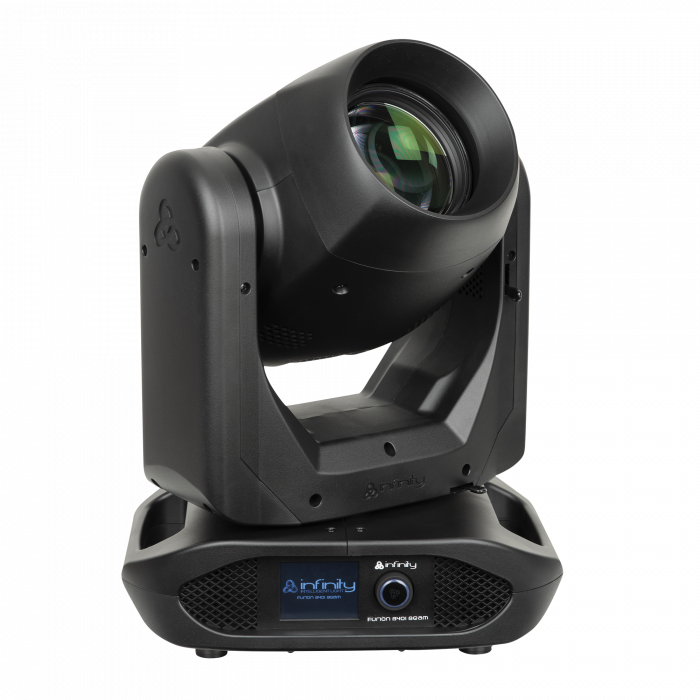

The Infinity Furion B401 Beam. A versatile moving head with a powerful Osram Sirius HRI 230 W 7R as light source. Like the rest of the family the B401 has been equipped with extremely precise and fast motors which deliver the 4° beam every time. The Furion B401 is equipped with 17 metal gobos which create awesome effects by using the 2 prisms. The most interesting feature which truly defines the Furion B401 is the colour bump-wheel. The colour bump-wheel brings the total of dichroic filters up to 14 + white. With this quantity switching between different single colours or creating a vast amount of split colours or bump colours is very easy, tremendously quick and accurate. The 14 dichroic colours in the Furion B401 have no fixed positions which make them very flexible in generating the required colour in no time. Besides having the choice to be able to bump between colours, the amount of white visible in the beam can also be determined.

Specifications

Source:
  • Light Source Type: Discharge
  • Light Source Quantity: 1
  • Light Source Power: 230 W
  • Life Expectancy: 2500 h
  • Light Socket: E20.6
  • Luminous Flux (Total): 18200 lm
  • CCT: 7600 K
  • Source Warm-up Time: 3 min
  • Source Hot Restart Time: 5 min
Optical:
  • Beam Angle Max. (Circular): 4°
  • Frost: Yes
  • Focus: Motorised
Control and Programming:
  • Control Mode: Auto, DMX, Master Slave
  • DMX Channels: 16, 18, 23
  • Protocols: Art-Net, DMX, RDM, sACN

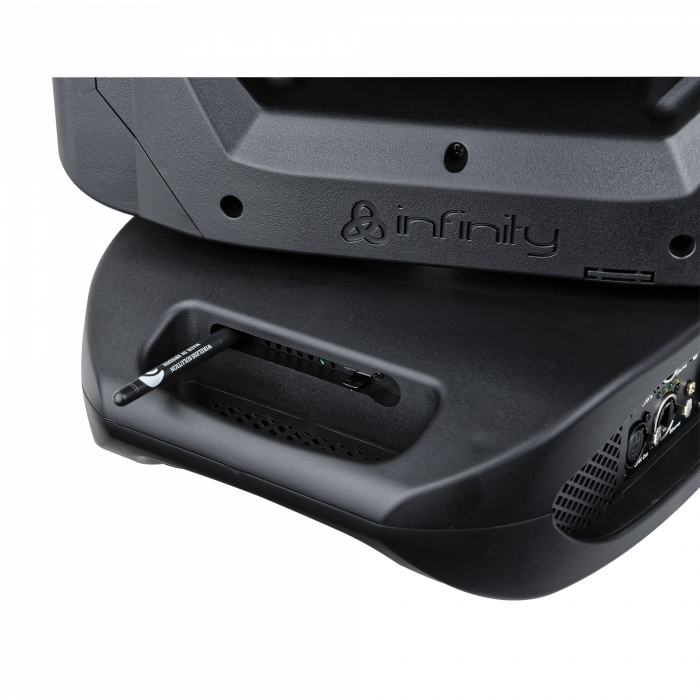

  • Wireless: Wireless DMX

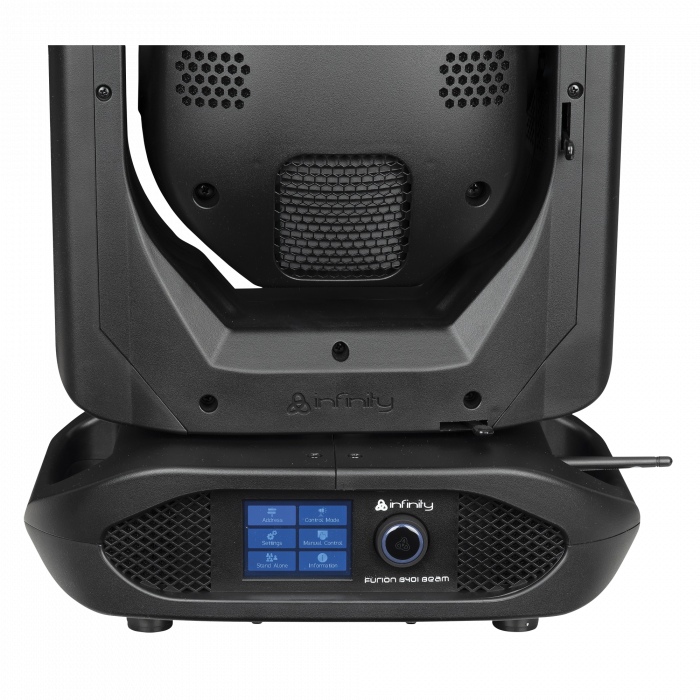

  • Display: Battery, Gravity Sensor, LCD, Touch
  • Dimmer Resolution: 16 bit
  • Focus Resolution: 16 bit
Dynamic Effects:
  • Dimmer: 0-100 %
  • Strobe: 0-20 Hz
  • Shutter: Yes
  • Prism 1: 16-facte Circulair
  • Prism 2: 5-facet Linear
  • Prism Overlay: Yes
  • Prism Index & Rotate: Yes
  • Colour System: Colour Wheel
  • Colour Wheel Index & Rotate: Yes
  • Dichroic Colour Wheel 1: 14 + Open
  • Gobo System: Metal
  • Gobo Wheel Index & Rotate: Yes

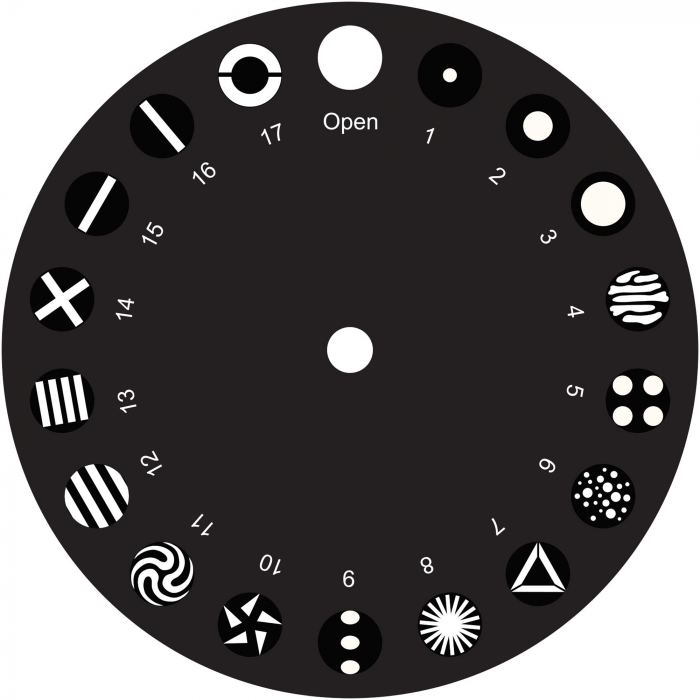

  • Gobo Wheel 1: 17 + Open

Movement:

  • Pan: 540°
  • Tilt: 270°
  • Pan/Tilt Resolution: 16-bit

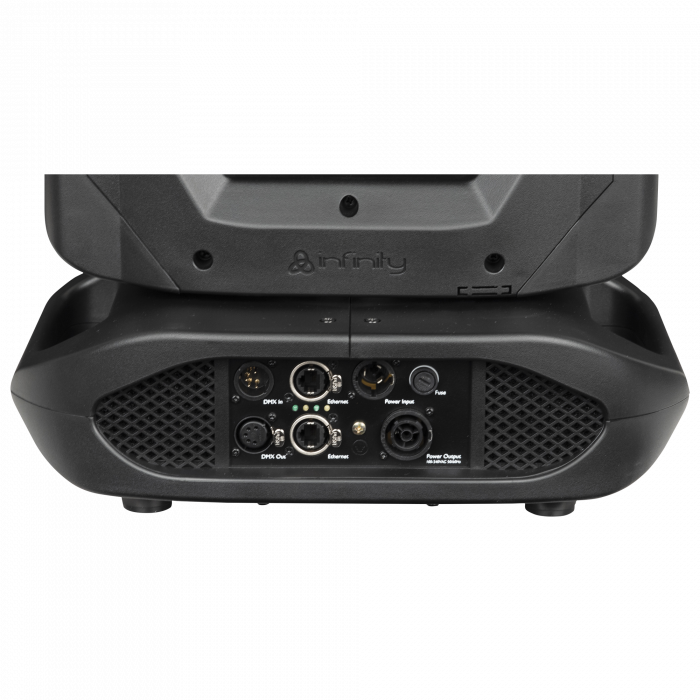

Electrical Specifications and Connections:

  • Power Supply: 100-240 V AC 50-60 Hz
  • Power Consumption: 402 W
  • Fuse: 7 A
  • Power Connector In: powerCON TRUE1
  • Power Connector Out: powerCON TRUE1
  • DMX Connector: XLR 5P In/Out
  • Data Connector In: RJ45
  • Data Connector Out: RJ45

Mechanical Specifications:

  • Length (mm): 519 mm
  • Width (mm): 380 mm
  • Height (mm): 284 mm
  • Weight: 21 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Metal, Plastic
  • Colour: Black

Misc:

  • Cooling: Axial fan

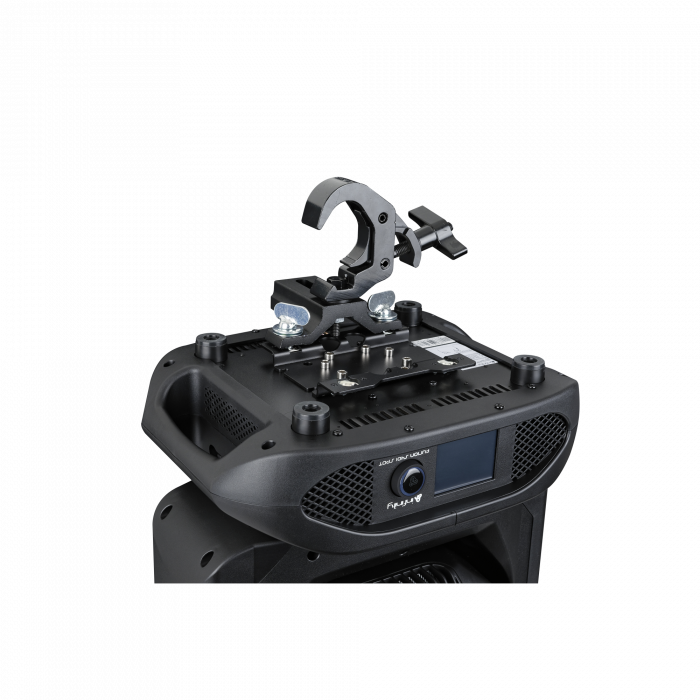

  • Mounting Options: Quick-Lock
  • Safety Attachment: Yes
  • Maximum Ambient Temperature: 40 °C
  • Maximum Surface Temperature: 60 °C
  • Minimum Distance to Objects: 12 m
