Showtec Shark - The Meg - Beam One

Showtec Shark - The Meg - Beam One

by Highlite Showtec
SKU 45040
$2,188.27 ex. GST - $2,188.27 ex. GST
$2,188.27 ex. GST
$2,188.27 ex. GST - $2,188.27 ex. GST
$2,188.27 ex. GST

All Prices Shown are Excluding GST.

  • 100 W LED beam moving head with controllable LED ring
  • 11 colours + white and rainbow effect
  • 14 gobos with gobo shake
  • Two rotating prisms, 16- and 24-facet
  • Frost and motorised focus

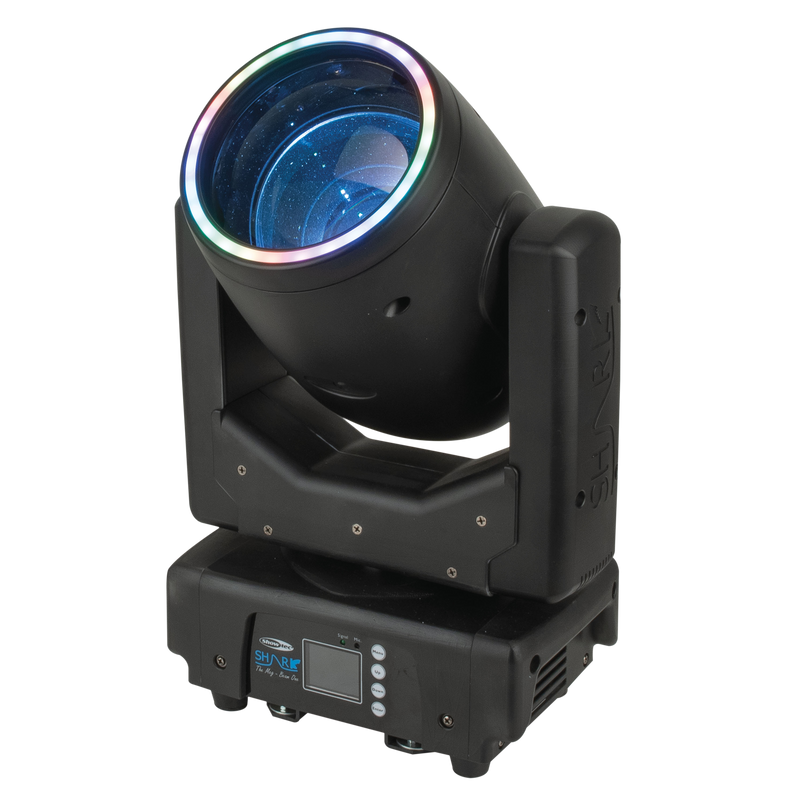

The Showtec Shark - The Meg - Beam One is a compact but powerful 100 watt LED moving head with a very narrow beam angle of 1.6 degrees and lots of impressive effects, including a controllable LED ring effect. It has a colour wheel with 11 colours plus open and a rainbow effect. Two individually controllable and indexed rotating prisms with 16 and 24 facets can be alternated, and the gobo wheel with gobo shake has 14 gobos + open. The motorised focus allows for razor sharp (gobo) images, while the frost filter provides a smoothed out beam dispersion. The LED ring can be controlled separately and produces selectable graphic patterns in selectable colours. The Shark - The Meg - Beam One can be controlled through DMX and Master/Slave, and has several built-in programs for stand-alone operation.

Specifications

Source:
  • Light Source Type: LED
  • Light Source Quantity: 1
  • Light Source Power: 100 W
  • LED Colour Type: CW
  • Illuminance @ 2 m: 822769 lx
  • Illuminance @ 3 m: 365675 lx
  • Illuminance @ 5 m: 131643 lx
  • Luminous Flux (Total): 6056 lm
  • CRI: 761
Optical:
  • Beam Angle Max. (Circular): 1.6°
  • Frost: Yes
  • Focus: Motorised
Control and Programming:
  • Control Mode: Built-in Program, DMX, Master Slave
  • DMX Channels: 15, 22, 30
  • Protocols: DMX
  • Display: TFT
  • Fan mode: Yes
Dynamic Effects:
  • Dimmer: 0-100 %
  • Strobe: 0-20 Hz
  • Prism 1: 16-facte Circulair
  • Prism 2: 24-facet Linear
  • Prism Overlay: No
  • Prism Index & Rotate: Yes
  • Colour System: Colour Wheel
  • Dichroic Colour Wheel 1: 11 + Open
  • Gobo System: Metal
  • Gobo Wheel 1: 14 + Open

Movement:

  • Pan: 540°
  • Tilt: 270°
  • Pan/Tilt Resolution: 16-bit
Electrical Specifications and Connections:
  • Power Supply: 100-240 V AC 50-60 Hz
  • Power Consumption: 175 W
  • Fuse: 4 A
  • Power Connector In: Power Pro Blue
  • Power Connector Out: Power Pro Grey
  • DMX Connector: XLR 3P In/Out

Mechanical Specifications:
  • Length (mm): 165 mm
  • Width (mm): 275 mm
  • Height (mm): 430 mm
  • Weight: 10.85 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Metal, PVC
  • Colour: Black
Misc:
  • Cooling: Axial fan
  • Mounting Options: Quick-Lock
  • Safety Attachment: Yes
  • Safety Eyes: 1
  • Maximum Ambient Temperature: 45 °C
