Showtec Phantom 130 Spot White
The Phantom is Back!
Showtec Phantom €“ the household name in the entertainment lighting industry is back with a new series of extremely reliable and versatile fixtures.
And not just its exterior looks better; technically updated to the latest specifications, without compromising reliability, these fixtures now offer more and better functionalities than ever before.
Razor sharp beams, colourful matrix effects or spectacular gobo imagery, a Showtec Phantom will, just as any true superhero, never disappoint you.
Spot 65 and 130, 3R Beam, 3R Hybrid or Matrix FX:
Showtec Phantom €“ the choice of heroes!

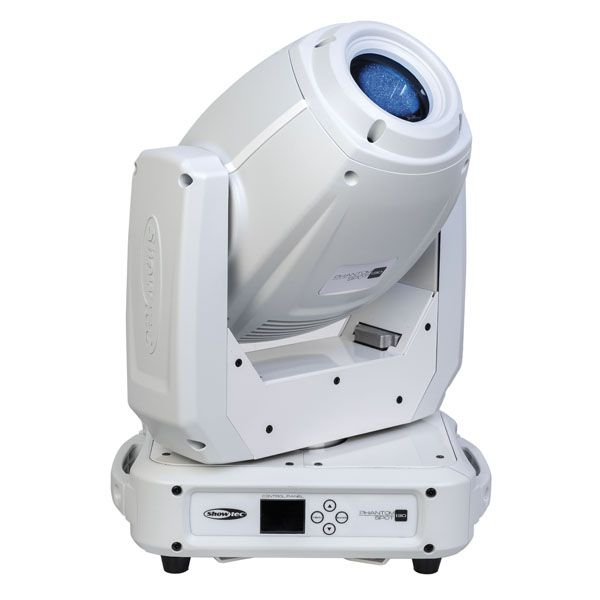

The Showtec Phantom 130 LED Spot is a medium sized, but very powerful moving head, suitable for a variety of venues and applications.
This stylishly designed fixture contains a 130 watt white LED light-source, providing an extremely high light output. Fixed and rotating gobo wheels (7 gobos each), seven dichroic-filters + white, the colour wheel and circular and rotating prisms, are all on board. Together with the motorized focus and mechanical zoom, this makes a highly versatile moving head.
Like all Phantom fixtures, this spot can be controlled by DMX512 but is also capable of operating in stand-alone mode (Auto, Sound and Manual).
Compact, lightweight and versatile; the Phantom 130 LED Spot definitely is a sensible choice for your entertainment lighting needs.
The Showtec Phantom series, a household name in the entertainment lighting industry, are a range of very reliable fixtures with low power consumption and high performance. Taking into account today€™s lighting demands, this series offers a range of modern fixtures such as Spot, Wash, Beam, Matrix FX, and Hybrid.
Razor sharp beams, colourful matrix effects or spectacular gobo imagery, a Showtec Phantom will, just as any true superhero, never disappoints you.
- Optional WDMX
- 7 colours + white
- 8-facet circular & 5- facet linear prism
- Motorized zoom and focus
Specifications:
| Output | |
| Lux @ 5m | 5200 (12°) |
| Beam Angle | 12° - 21° |
| Light Source | 130W White LED |
| Electrical | |
| Input voltage | 100~240VAC, 50/60Hz (auto ranging) |
| Power consumption | 300W max. |
| Control | |
| On-Board | Full colour display |
| Control Protocol | DMX512, Auto, Sound, Manual, Master-Slave |
| Control Personality | Advanced 16ch /Basic 12ch |
| Optical system | |
| Dimmer | 0-100% |
| Strobe | 0-20Hz |
| Focus | Motorized |
| Zoom | Motorized |
| Prism | 6-facet circular & 5- facet linear prism rotating prism |
| Movement | |
| Pan | 540° |
| Tilt | 270° |
| Pan/Tilt resolution | 16 bit |
| Special | Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement |
| Gobos & Colours | |

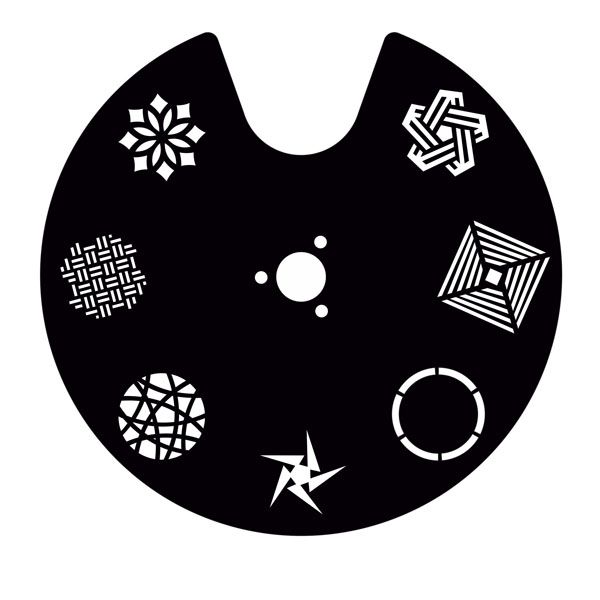

| Fixed Gobowheel | 7 gobos |

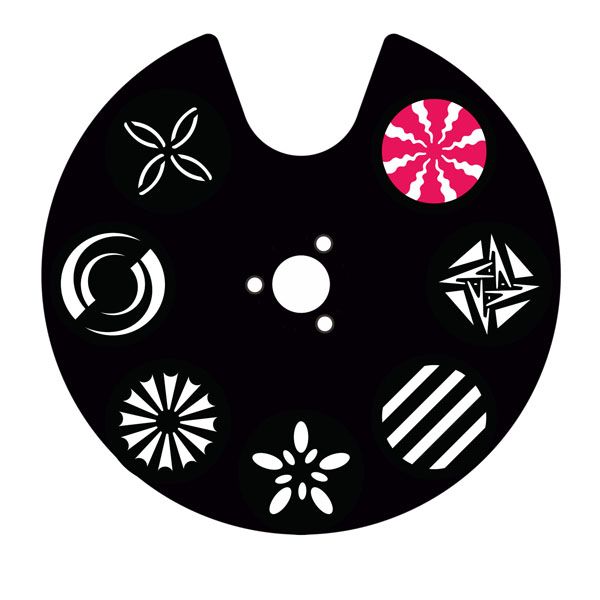

| Rotating Gobowheel | 7 gobos |
| Gobo functions | Gobo-flow effect,Gobo shake |
| Rotation | Bi-directional |

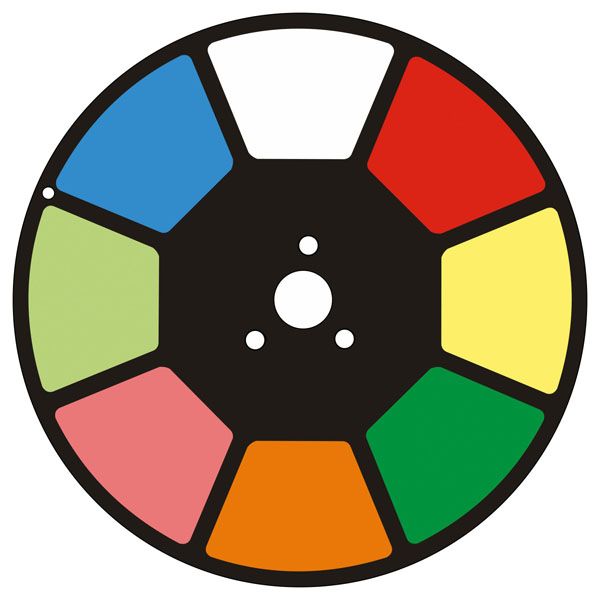

| Colourwheel | 7 dichroic-filters + white |
| Colour functions | Split colours, Rainbow-flow effect |
| Physical | |
| Colour | White |
| Housing | Metal & Flame-retardant plastic |
| Data Connection | XLR 3p in- & output |
| Power connection | Pro Power in- & output |
| Dimensions (WxDxH) | 321 x 211 x 462 mm |
| Weight | 13Kg |
| Certification and Safety | |
| Certification | CE |
| Max. ambient Temp. | 40°C |
