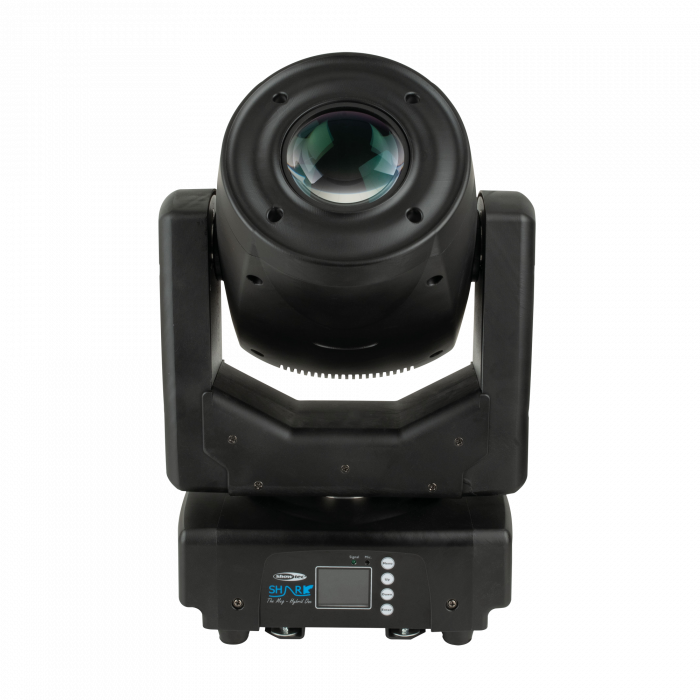

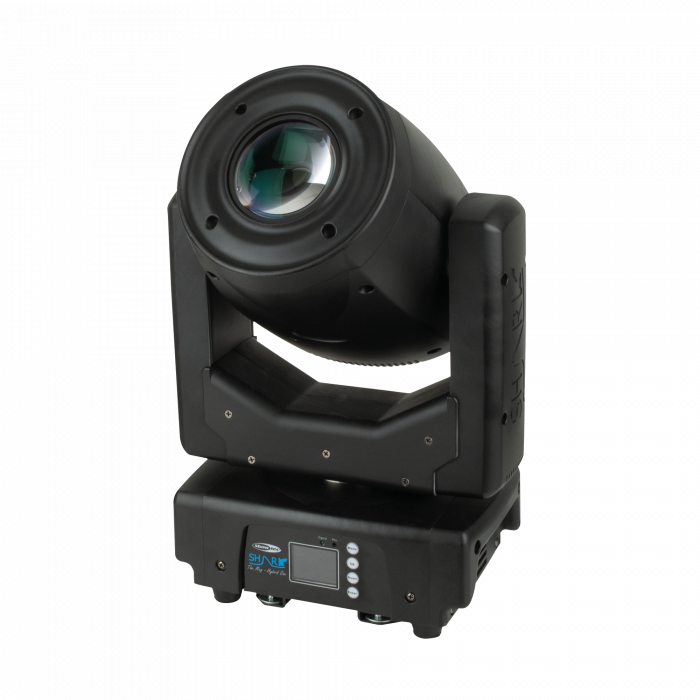

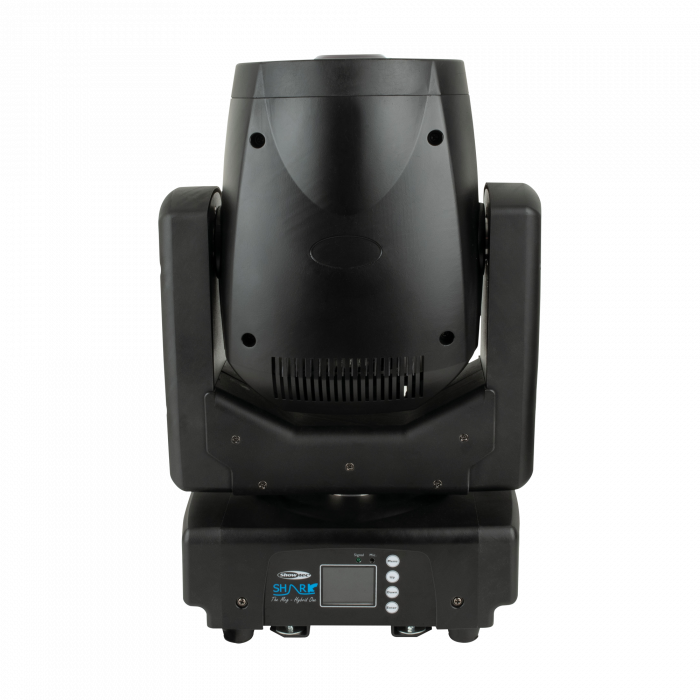

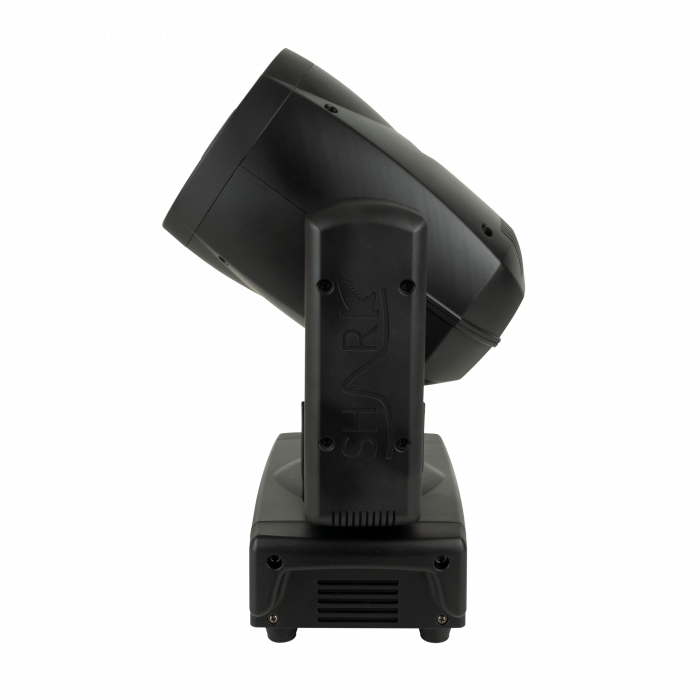

Showtec Shark - The Meg - Hybrid One

SKU 45041
Original price $2,977.99 ex. GST - Original price $2,977.99 ex. GST
Original price
$2,977.99 ex. GST
$2,977.99 ex. GST - $2,977.99 ex. GST
Current price $2,977.99 ex. GST

All Prices Shown are Excluding GST.

  • 160 W hybrid LED moving head

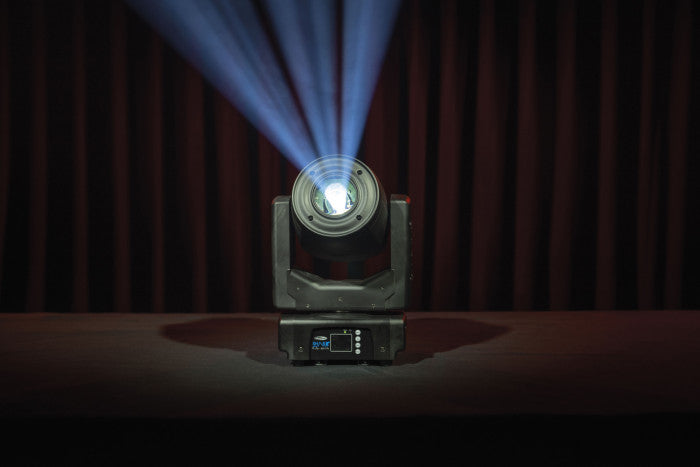

  • 9 dichroic colours + white and 3-facet rotatable prism

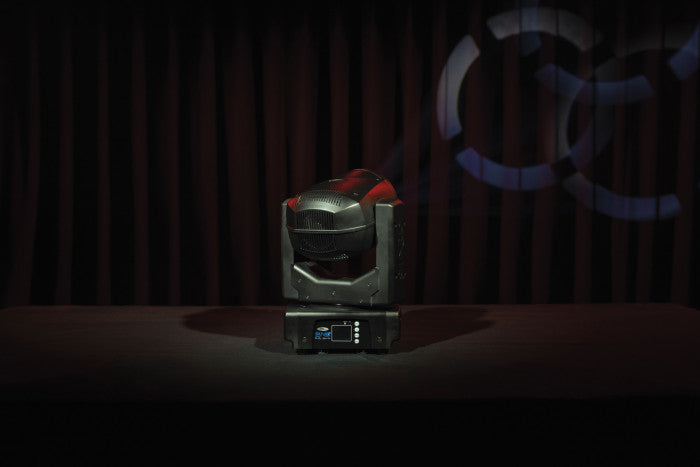

  • 2 gobo wheels with 7 rotating and 12 fixed gobos + open
  • Motorised zoom from 3.8 to 15.8 degrees
  • Frost and motorised focus

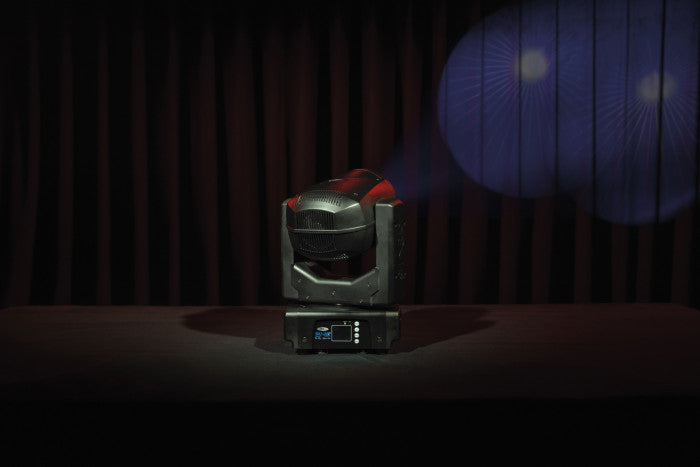

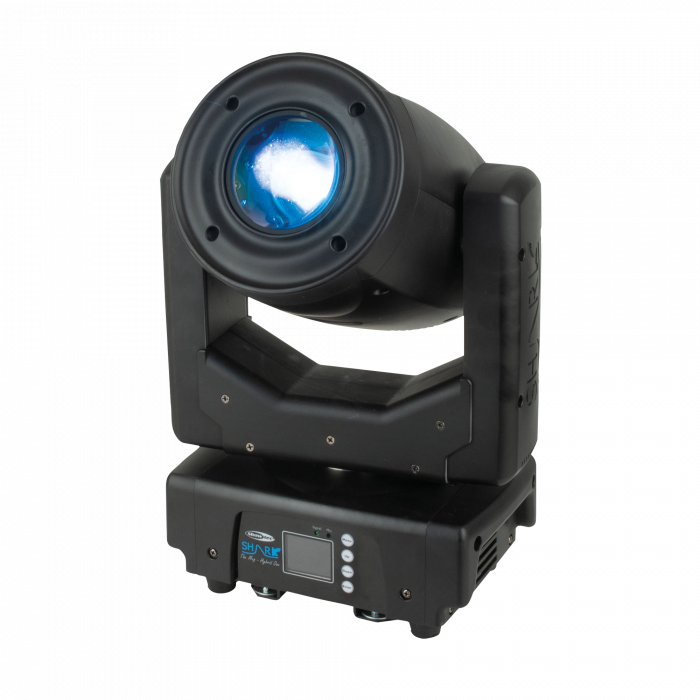

The Showtec Shark - The Meg - Hybrid One is a compact but powerful 160 watt LED hybrid moving head with a beam angle that can be adjusted from Beam to Spot to Wash (motorised zoom from 3.8 to 15.8 degrees). It is suitable for indoor applications and comes with a lot of impressive effects. It is equipped with a colour wheel with 9 dichroic colours plus open and it has two gobo wheels, one with 7 rotating gobos plus open, and one with 12 fixed gobos plus open. It has an indexed, rotatable 3-facet prism, and frost and motorised focus functions. The Shark - The Meg - Hybrid One can be controlled through DMX and has several built-in programs for stand-alone operation.

Specifications

Source:
  • Light Source Type: LED
  • Light Source Quantity: 1
  • Light Source Power: 160 W
  • LED Colour Type: CW
  • Illuminance @ 2 m: 175844 lx
  • Illuminance @ 3 m: 78153 lx
  • Illuminance @ 5 m: 28135 lx
  • Luminous Flux (Total): 3075 lm
  • CRI: 73
Optical:
  • Beam Angle Min. (Circular): 3.8°
  • Beam Angle Max. (Circular): 15.8°
  • Zoom Type: Motorised
  • Zoom Ratio: 1:5
  • Frost: Yes
  • Focus: Motorised
Control and Programming:
  • Control Mode: Built-in Program, DMX
  • DMX Channels: 8, 16, 18
  • Protocols: DMX
  • Display: TFT
Dynamic Effects:
  • Dimmer: 0-100 %
  • Strobe: 0-20 Hz
  • Shutter: Yes
  • Prism 1: 3-facet Circulair
  • Prism Index & Rotate: Yes
  • Colour System: Colour Wheel
  • Dichroic Colour Wheel 1: 9 + Open
  • Gobo System: Glass + Metal
  • Gobo Wheel Index & Rotate: Yes
  • Gobo Wheel 1: 7 + Open
  • Gobo Wheel 2: 12 + Open
  • Gobo Size: 14 mm
  • Image Diameter: 9 mm

Movement:

  • Pan: 540°
  • Tilt: 270°
  • Pan/Tilt Resolution: 16-bit
Electrical Specifications and Connections:
  • Power Supply: 100-240 V AC 50-60 Hz
  • Power Consumption: 200 W
  • Fuse: 4 A

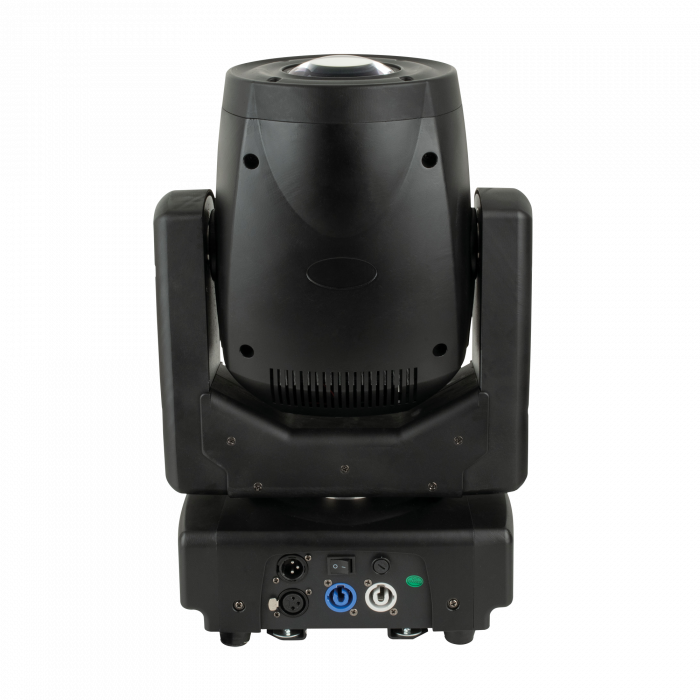

  • Power Connector In: Power Pro Blue
  • Power Connector Out: Power Pro Grey
  • DMX Connector: XLR 3P In/Out
Mechanical Specifications:
  • Length (mm): 165 mm
  • Width (mm): 283 mm
  • Height (mm): 435 mm
  • Weight: 9.85 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Metal, PVC
  • Colour: Black
Misc:
  • Cooling: Axial fan
  • Mounting Options: Quick-Lock
  • Safety Attachment: Yes
  • Safety Eyes: 1
  • Maximum Ambient Temperature: 45 °C
