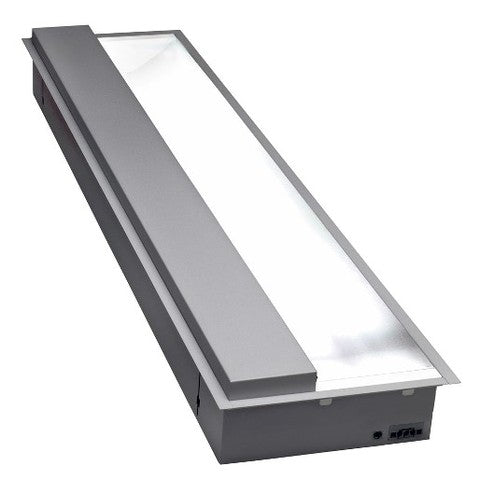

Martin Cyclo 04 DMX Wallwasher

The Cyclo 04 DMX Wallwasher is a recessed fluorescent wallwasher with RGB + W color mixing that generates both white and colored light. Suited to a wide range of commercial applications, it also provides an interesting solution by applying dynamic light in recreation areas and conference rooms.

FEATURES

  • Long lamp life (20 000 hrs)
  • 28 W T5 fluorescent tubes
  • RGB + W color mixing, variable color temperature
  • Even color wallwash distribution with no dark zones
  • 0-100% intensity control
  • DMX control
  • Versatile as floor, ceiling, or wallwasher

SPECIFICATIONS

PHYSICAL
Length: 1210 mm
Width: 290 mm
Height: 94 mm
Weight: 9 kg

DYNAMIC EFFECTS
Color mixing: RGBW
Red: 0 - 100%
Green: 0 - 100%
Blue: 0 - 100%
Cool white (4000 K): 0 - 100%

CONTROL AND PROGRAMMING
Control options: DMX, stand-alone, synchronized (host/client)
DMX channels: 4
Setting and addressing: DIP switch
Protocol: DMX512Receiver: RS-485
LAMPType: T5 fluorescent tubes
Approved lamps: Osram T5 HE 28 W
Average lifetime: 20 000 hoursSocket: G5

INSTALLATION
Indoor orientation: Any (ceiling panel or wall recommended)
Minimum free space: 25 mm

CONNECTIONS
Power in/out: Ensto quick connector
DMX data in/out: RJ-45

ELECTRICAL
AC power: 198-240 V, 50/60 Hz
